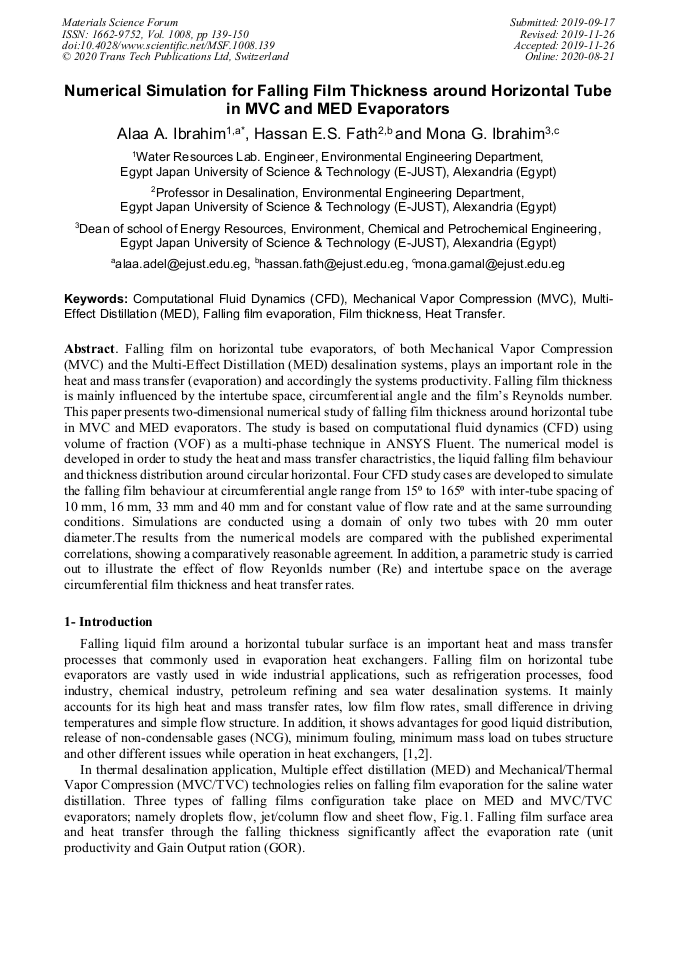

Numerical Simulation for Falling Film Thickness around Horizontal Tube in MVC and MED Evaporators

Abstract:

Falling film on horizontal tube evaporators, of both Mechanical Vapor Compression (MVC) and the Multi-Effect Distillation (MED) desalination systems, plays an important role in the heat and mass transfer (evaporation) and accordingly the systems productivity. Falling film thickness is mainly influenced by the intertube space, circumferential angle and the film’s Reynolds number. This paper presents two-dimensional numerical study of falling film thickness around horizontal tube in MVC and MED evaporators. The study is based on computational fluid dynamics (CFD) using volume of fraction (VOF) as a multi-phase technique in ANSYS Fluent. The numerical model is developed in order to study the heat and mass transfer charactristics, the liquid falling film behaviour and thickness distribution around circular horizontal. Four CFD study cases are developed to simulate the falling film behaviour at circumferential angle range from 150 to 1650 with inter-tube spacing of 10 mm, 16 mm, 33 mm and 40 mm and for constant value of flow rate and at the same surrounding conditions. Simulations are conducted using a domain of only two tubes with 20 mm outer diameter.The results from the numerical models are compared with the published experimental correlations, showing a comparatively reasonable agreement. In addition, a parametric study is carried out to illustrate the effect of flow Reyonlds number (Re) and intertube space on the average circumferential film thickness and heat transfer rates.

• Periodical: Materials Science Forum (Volume 1008)
• Pages: 139-150
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1008.139
• Online since: August 2020
• Authors: Alaa A. Ibrahim*, Hassan E.S. Fath, Mona G. Ibrahim
• Keywords: Computational Fluid Dynamics (CFD), Falling Film Evaporation, Film Thickness, Heat Transfer, Mechanical Vapor Compression (MVC), Multi-Effect Distillation (MED)

References

[1] G. Ribatski, A.M. Jacobi, Falling-film evaporation on horizontal tubes e a critical review, Int. J. Refrig. 28 (5) (2005) 635e653.

DOI: 10.1016/j.ijrefrig.2004.12.002

[2] Mohamed, A. M. I. (2007). Flow behavior of liquid falling film on a horizontal rotating tube. Experimental Thermal and Fluid Science, 31(4), 325–332.

DOI: 10.1016/j.expthermflusci.2006.05.004

[3] J. Mitrovic, Influence of tube spacing and flow rate on heat transfer from a horizontal tube to a falling liquid film, Proceedings of the eighth international heat transfer conference, San Francisco, vol. 4 1986, p.1949–56.

DOI: 10.1615/ihtc8.1700

[4] Fujita, Y., & Tsutsui, M. (1998). Experimental investigation of falling film evaporation on horizontal tubes. Heat Transfer - Japanese Research, 27(8), 609–618.

DOI: 10.1002/(sici)1520-6556(1998)27:8<609::aid-htj5>3.0.co;2-n

[5] Yang, L., & Shen, S. (2008). Experimental study of falling film evaporation heat transfer outside horizontal tubes. Desalination, 220(1-3), 654–660.

DOI: 10.1016/j.desal.2007.02.046

[6] W. Nusselt, Die Oberfla¨chenkondensation des Wasserdampfes Zeitschr (The surface condensation of water vapour), Ver. Deut. Ing. 60(541–546) (1916) 569–575 (in Germany).

[7] J.T. Rogers, Laminar falling film flow and heat transfer characteristics on horizontal tubes, Can. J. Chem. Eng. 59 (1981) 213–222.

DOI: 10.1002/cjce.5450590212

[8] J.T. Rogers, S.S. Goindi, Experimental laminar falling film heat transfer coefficients on a large diameter horizontal tube, Can. J. Chem. Eng. 67 (1989) 560–568.

DOI: 10.1002/cjce.5450670406

[9] Hou, H., Bi, Q., Ma, H., & Wu, G. (2012). Distribution characteristics of falling film thickness around a horizontal tube. Desalination, 285, 393–398.

DOI: 10.1016/j.desal.2011.10.020

[10] Hirt, C. ., & Nichols, B. . (1981). Volume of fluid (VOF) method for the dynamics of free boundaries. Journal of Computational Physics, 39(1), 201–225.

DOI: 10.1016/0021-9991(81)90145-5

[11] Pu, L., Li, Q., Shao, X., Ding, L., & Li, Y. (2018). Effects of tube shape on flow and heat transfer characteristics in falling film evaporation. Applied Thermal Engineering.

DOI: 10.1016/j.applthermaleng.2018.11.043

[12] Abed, A. M., Alghoul, M. A., Yazdi, M. H., Al-Shamani, A. N., & Sopian, K. (2015). The role of enhancement techniques on heat and mass transfer characteristics of shell and tube spray evaporator: a detailed review. Applied Thermal Engineering, 75, 923–940.

DOI: 10.1016/j.applthermaleng.2014.10.020

[13] W H Lee. A Pressure Iteration Scheme for Two-Phase Flow Modelling [M]. Washington, USA: Hemisphere Publishing, 1980: 407-431.
