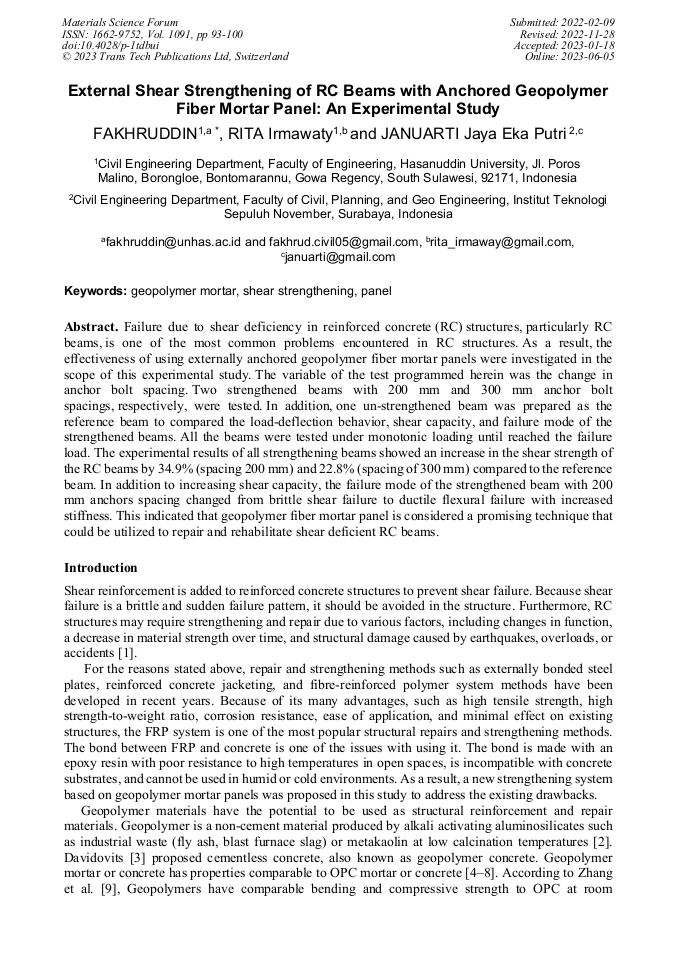

External Shear Strengthening of RC Beams with Anchored Geopolymer Fiber Mortar Panel: An Experimental Study

Abstract:

Failure due to shear deficiency in reinforced concrete (RC) structures, particularly RC beams, is one of the most common problems encountered in RC structures. As a result, the effectiveness of using externally anchored geopolymer fiber mortar panels were investigated in the scope of this experimental study. The variable of the test programmed herein was the change in anchor bolt spacing. Two strengthened beams with 200 mm and 300 mm anchor bolt spacings, respectively, were tested. In addition, one un-strengthened beam was prepared as the reference beam to compared the load-deflection behavior, shear capacity, and failure mode of the strengthened beams. All the beams were tested under monotonic loading until reached the failure load. The experimental results of all strengthening beams showed an increase in the shear strength of the RC beams by 34.9% (spacing 200 mm) and 22.8% (spacing of 300 mm) compared to the reference beam. In addition to increasing shear capacity, the failure mode of the strengthened beam with 200 mm anchors spacing changed from brittle shear failure to ductile flexural failure with increased stiffness. This indicated that geopolymer fiber mortar panel is considered a promising technique that could be utilized to repair and rehabilitate shear deficient RC beams.

• Periodical: Materials Science Forum (Volume 1091)
• Pages: 93-100
• DOI: https://doi.org/10.4028/p-1tdbui
• Online since: June 2023
• Authors: Fakhruddin Fakhruddin*, Rita Irmawaty, Januarti Jaya Eka Putri
• Keywords: Geopolymer Mortar, Panel, Shear Strengthening

References

[1] H. Baghi, J.A.O. Barros and F. Menkulasi, Shear strengthening of reinforced concrete beams with Hybrid Composite Plates (HCP) technique: Experimental research and analytical model, Engineering Structures. 125 (2016) 504–520.

DOI: 10.1016/j.engstruct.2016.07.023

[2] P. Duxson, J.L. Provis, G.C. Lukey GC, et al. The role of inorganic polymer technology in the development of green concrete. Cem Concr Res 37(12) (2007) 1590–7.

DOI: 10.1016/j.cemconres.2007.08.018

[3] J. Davidovits, Geopolymers: inorganic polymeric new materials, J. Thermal Anal. Calorim. 37 (8) (1991) 1633–1656.

DOI: 10.1007/bf01912193

[4] P Duxson, J.L. Provis, G.C. Lukey, et al. The role of inorganic polymer technology in the development of green concrete. Cem Concr Res 37(12) (2007) 1590–7.

DOI: 10.1016/j.cemconres.2007.08.018

[5] A. Hassan, M. Arif, M. Shariq, Use of geopolymer concrete for a cleaner and sustainable environment-A review of mechanical properties and microstructure. J Cleaner Prod 223 (2019) 704–28.

DOI: 10.1016/j.jclepro.2019.03.051

[6] P. Zhang, Y. Zheng, K. Wang, et al, A review on properties of fresh and hardened geopolymer mortar. Compos B 152 (2018) 79–95.

[7] H.Y. Zhang, V. Kodur, B. Wu, et al, Effect of temperature on bond characteristics of geopolymer concrete. Constr Build Mater 163 (2018) 277–85.

[8] D. Hardjito, S.E. Wallah, D.M. Sumajouw, and B.V. Rangan, The development of fly ash-based geopolymer concrete. ACI Mater. J., 101(6) (2004) 467–472.

DOI: 10.1007/s10853-006-0523-8

[9] H.Y, Zhang HY, V. Kodur, S.L. Qi, et al, Development of metakaolin-fly ash based geopolymers for fire resistance applications. Constr Build Mater 55 (2014) 38–45.

DOI: 10.1016/j.conbuildmat.2014.01.040

[10] M.T. Junaid, A. Khennane, O. Kayali, et al, Aspects of the deformational behaviour of alkali activated fly ash concrete at elevated temperatures. Cem Concr Res 60 (2014) 24–9.

DOI: 10.1016/j.cemconres.2014.01.026

[11] A. Fernández-Jiménez, A. Palomo, J.Y. Pastor, et al, New cementitious materials based on alkali-activated fly ash: performance at high temperatures. J Am Ceram Soc 91(10) (2008) 3308–14.

DOI: 10.1111/j.1551-2916.2008.02625.x

[12] R. Irmawaty, Fakhruddin, J.J. Ekaputri, Experimental and analytical study for shear strengthening of reinforced-concrete beams using a prefabricated geopolymer–mortar panel, Case Studies in Construction Materials,17 (2022) e0156.

DOI: 10.1016/j.cscm.2022.e01568
