A Study on the Microstrains in the Textured YBa₂Cu₃O_7-d Superconductor Films
p.696

HomeMaterials Science ForumMaterials Science Forum Vols. 490-491A Study on the Microstrains in the Textured...

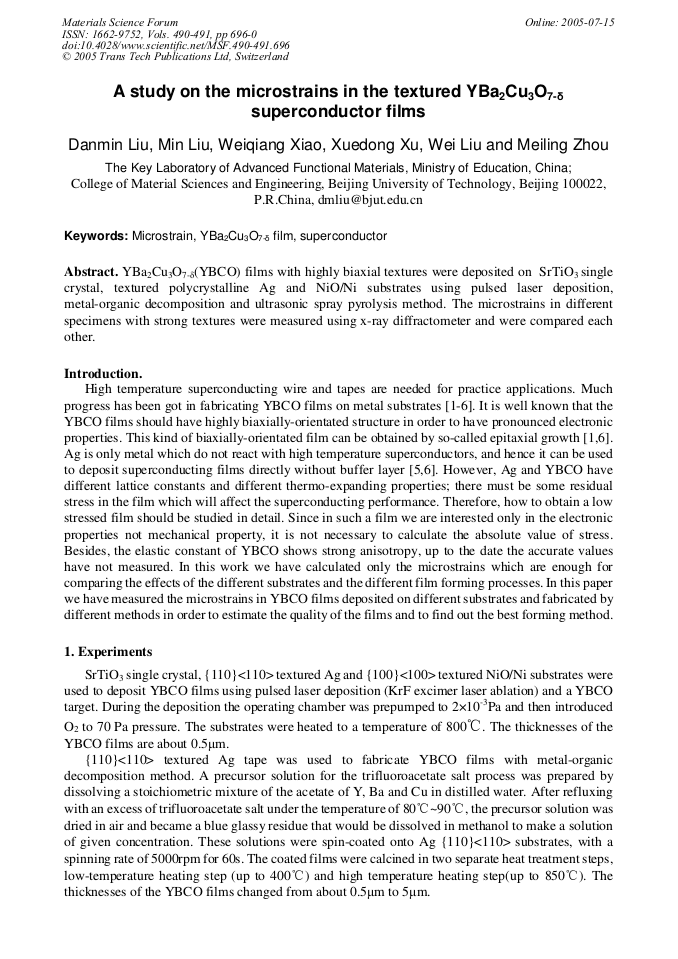

A Study on the Microstrains in the Textured YBa₂Cu₃O_7-d Superconductor Films

Abstract:

YBa2Cu3O7-δ(YBCO) films with highly biaxial textures were deposited on SrTiO3 single crystal, textured polycrystalline Ag and NiO/Ni substrates using pulsed laser deposition, metal-organic decomposition and ultrasonic spray pyrolysis method. The microstrains in different specimens with strong textures were measured using x-ray diffractometer and were compared each other.
