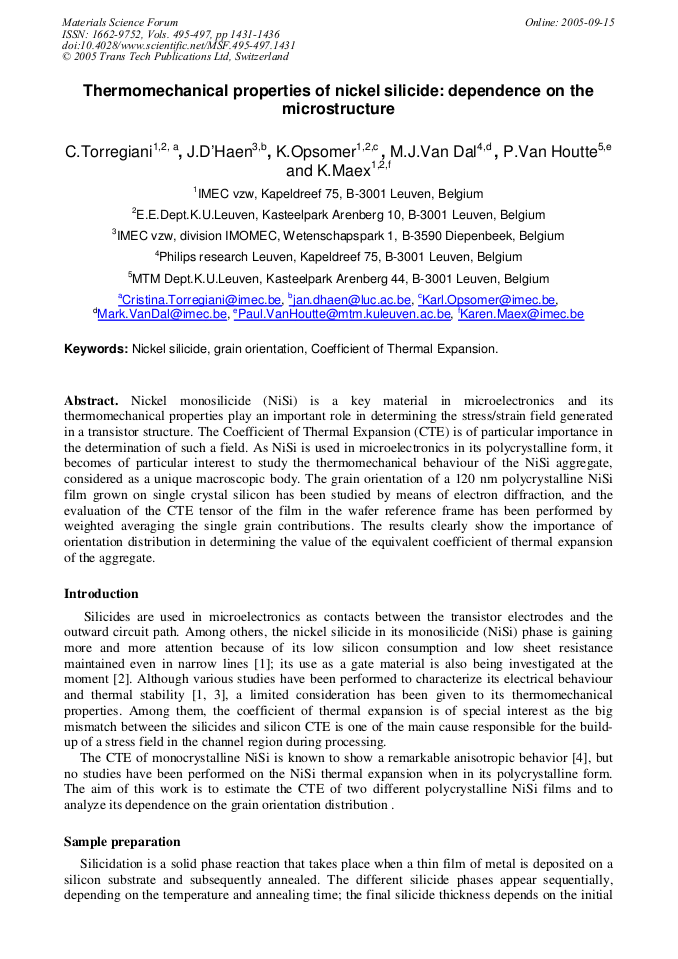

Thermomechanical Properties of Nickel Silicide: Dependence on the Microstructure

Abstract:

Nickel monosilicide (NiSi) is a key material in microelectronics and its thermomechanical properties play an important role in determining the stress/strain field generated in a transistor structure. The Coefficient of Thermal Expansion (CTE) is of particular importance in the determination of such a field. As NiSi is used in microelectronics in its polycrystalline form, it becomes of particular interest to study the thermomechanical behaviour of the NiSi aggregate, considered as a unique macroscopic body. The grain orientation of a 120 nm polycrystalline NiSi film grown on single crystal silicon has been studied by means of electron diffraction, and the evaluation of the CTE tensor of the film in the wafer reference frame has been performed by weighted averaging the single grain contributions. The results clearly show the importance of orientation distribution in determining the value of the equivalent coefficient of thermal expansion of the aggregate.

• Periodical: Materials Science Forum (Volumes 495-497)
• Pages: 1431-1436
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.495-497.1431
• Online since: September 2005
• Authors: C. Torregiani, Jan D'Haen, K. Opsomer, M.J. Van Dal, Paul van Houtte, Karen Maex
• Keywords: Coefficient of Thermal Expansion, Grain Orientation, Nickel Silicide

References

[1] A. Lauwers et al, Microelectronic Engineering Vol. 76 (2004), p.303.

[2] J. Kedzierski et al, IEDM Tech. Dig. (2003), p.315.

[3] S.C.H. Ho et al, Electron Devices meeting Proc (1998).

[4] S.M. Barmin and A.A. Frolov, Sov. Phys. Solid State Vol. 32 (1990), p.897.

[5] P. Gas and F.M. d'Heurle for Metal Silicides (emis datareview series n. 14, INSPEC publication, 1995), p.279.

[6] Lectures of Micromechanics of Polycrystalline Materials, prof. P. Van Houtte, (2004).

[7] J.F. Nye, Physical Properties of Crystals (Clarendon Press, Oxford 1976).
