Paper Titles
Growth of Diamond-Like Carbon Thin Film Using Microwave Chemical Vapor Deposition
p.57
Response Mechanism of Pd-GaN Schottky Barriers Comparative to Pd-Si Gas Sensors
p.61
Molecular Orientation of Phospholipid Langmuir-Blodgett Films
p.65
Crystallinity Studies of GaN/Si Films Grown by MOCVD at Various Substrate Temperatures Using XRD
p.69
Silica -Titania Glass Fibers from Polytitanosiloxanes: Effect of Polymerization Mechanism on Mechanical Properties
p.73
Structural Study of In2O3 Structures Grown by the Metalorganic Chemical Vapor Deposition
p.77
The Effects of Deposition Pressure on the Optical and Structural Properties of d.c. PECVD Hydrogenated Amorphous Carbon Films
p.81
Characterization of Plasticized Hexanoyl Chitosan-Based Polymer Electrolytes and Application in LiCoO2/MCMB Cells
p.85
Effect of Ethylene Sulphite on the Conductivity and Morphology of PEO-KOH Films
p.89

Silica -Titania Glass Fibers from Polytitanosiloxanes: Effect of Polymerization Mechanism on Mechanical Properties

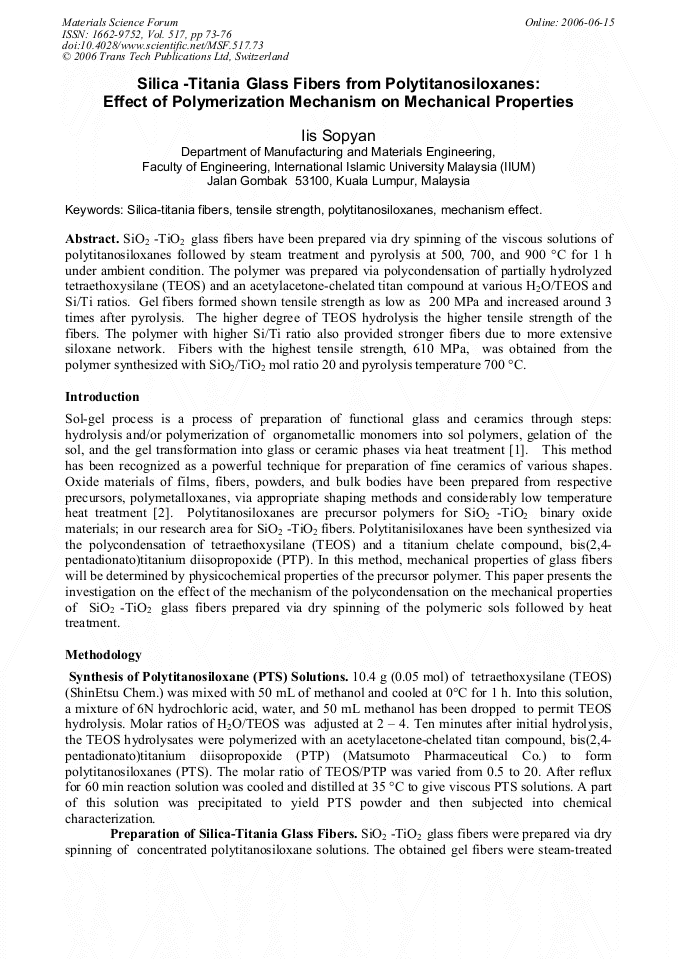

Article Preview

Abstract:

SiO2 -TiO2 glass fibers have been prepared via dry spinning of the viscous solutions of polytitanosiloxanes followed by steam treatment and pyrolysis at 500, 700, and 900 °C for 1 h under ambient condition. The polymer was prepared via polycondensation of partially hydrolyzed tetraethoxysilane (TEOS) and an acetylacetone-chelated titan compound at various H2O/TEOS and Si/Ti ratios. Gel fibers formed shown tensile strength as low as 200 MPa and increased around 3 times after pyrolysis. The higher degree of TEOS hydrolysis the higher tensile strength of the fibers. The polymer with higher Si/Ti ratio also provided stronger fibers due to more extensive siloxane network. Fibers with the highest tensile strength, 610 MPa, was obtained from the polymer synthesized with SiO2/TiO2 mol ratio 20 and pyrolysis temperature 700 °C.

You might also be interested in these eBooks
Functional Materials and Devices View Preview

Info:

Periodical:

Materials Science Forum (Volume 517)

Pages:

73-76

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.517.73

Citation:

Cite this paper

Online since:

June 2006

Authors:

Iis Sopyan

Keywords:

Mechanism Effect, Polytitanosiloxanes, Silica-Titania Fibers, Tensile Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2006 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] H. Kozuka, H. Kuroki, and S. Sakka: J. Non-Crystal solids, vol. 100 (1988), p.226.

Google Scholar

[2] D. Seyferth: in Materials Chemistry, An Emerging Disciple (ACS, USA 1995).

Google Scholar

[3] C.J. Brinker: J. Non-Crystal solids, vol. 100 (1988), p.3150.

Google Scholar

[4] I. Sopyan: Proceeding of IPS Conference, (1998), p.44.

Google Scholar

[5] T. Gunji, et. al.: J. Polym. Sci. Part A: Polym. Chem., vol. 30 (1992), p.2295. 2θ (FeKαααα) Fig. 6. XRD patterns of silica-titania fibers fired at 1000 °C.

Google Scholar
