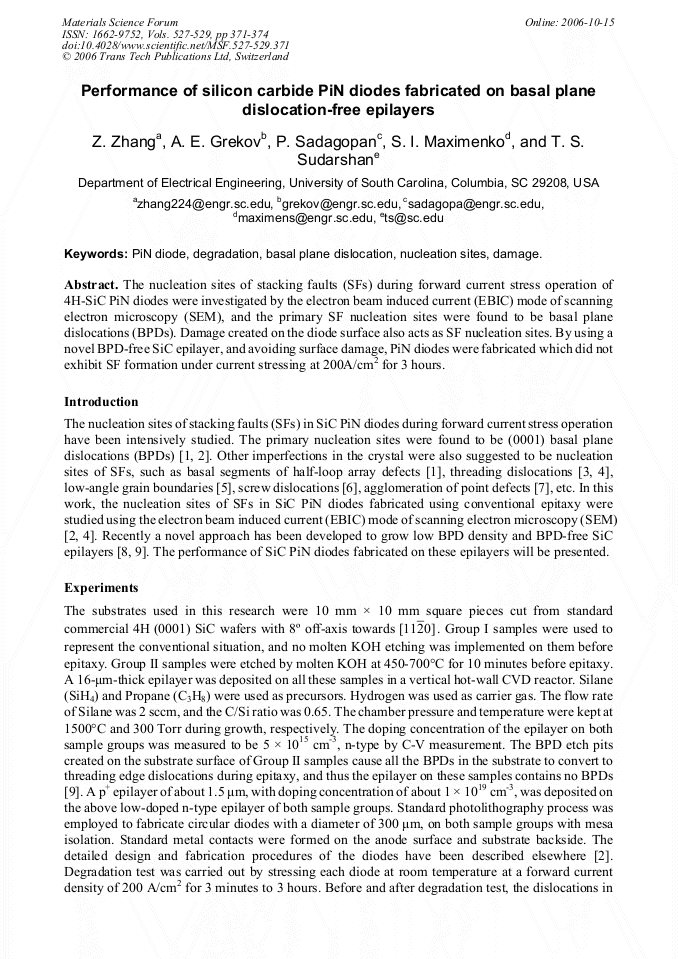

Performance of Silicon Carbide PiN Diodes Fabricated on Basal Plane Dislocation-Free Epilayers

Abstract:

The nucleation sites of stacking faults (SFs) during forward current stress operation of 4H-SiC PiN diodes were investigated by the electron beam induced current (EBIC) mode of scanning electron microscopy (SEM), and the primary SF nucleation sites were found to be basal plane dislocations (BPDs). Damage created on the diode surface also acts as SF nucleation sites. By using a novel BPD-free SiC epilayer, and avoiding surface damage, PiN diodes were fabricated which did not exhibit SF formation under current stressing at 200A/cm2 for 3 hours.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2005

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 527-529)

Pages:

371-374

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.527-529.371

Citation:

Cite this paper

Online since:

October 2006

Authors:

Ze Hong Zhang, A.E. Grekov, Priyamvada Sadagopan, S.I. Maximenko, Tangali S. Sudarshan

Keywords:

Basal Plane Dislocation (BPD), Damage, Degradation, Nucleation Sites, PiN Diode

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Ha, M. Skowronski and H. Lendenmann: J. Appl. Phys. 99 (2004), p.393.

Google Scholar

[2] S. I. Maximenko and T. S. Sudarshan: J. Appl. Phys. 97 (2005), p.074501.

Google Scholar

[3] S. Ha, M. Benamara, M. Skowronski and H. Lendenmann: Appl. Phys. Lett. 83 (2003), p.4957.

Google Scholar

[4] S. I. Maximenko, P. Pirouz and T. S. Sudarshan: Appl. Phys. Lett. 87 (2005), p.033503.

Google Scholar

[5] M. Skowronski, J. Q. Liu, W. M. Vetter, M. Dudley, C. Hallin and H. Lendenmann: J. Appl. Phys. 92 (2002), p.4699.

Google Scholar

[6] H. Jacobson, J. P. Bergman, C. Hallin, E. Janzén, T. Tuomi and H. Lendenmann: J. Appl. Phys. 95 (2004), p.1485.

Google Scholar

[7] B. J. Skromme, K. Palle, C. D. Poweleit, L. R. Bryant, W. M. Vetter, M. Dudley, K. Moore and T. Gehoski: Mater. Sci. Forum 389-393 (2002), p.455.

DOI: 10.4028/www.scientific.net/msf.389-393.455

Google Scholar

[8] J. J. Sumakeris, J. R. Jenny and A. R. Powell: MRS bulletin, 30(4) (2005), p.280.

Google Scholar

[9] Z. Zhang and T. S. Sudarshan: Growth of low basal plane dislocation density SiC epitaxial layers, these Proceedings.

DOI: 10.4028/www.scientific.net/msf.527-529.243

Google Scholar

[10] M. E. Twigg, R. E. Stahlbush, M. Fatemi, S. D. Arthur, J. B. Fedison, J. B. Tucker and S. Wang: Appl. Phys. Lett. 82 (2003), p.2410.

DOI: 10.1063/1.1566794

Google Scholar

[11] S. Ha, M. Skowronski, J. J. Sumakeris, M. J. Paisley and M. K. Das: Phys. Rev. Lett. 92(17) (2004), p.175504.

Google Scholar

[12] V. Tillay, F. Pailloux, M. F. Denanot, P. Pirouz, J. Rabier, J. L. Demenet and J. F. Barbot: Europ. Phys. J.: Appl. Phys. 2 (1998).

DOI: 10.1051/epjap:1998173

Google Scholar
