A New Series of Potential Buffer Layers for REBCO Coated Conductor

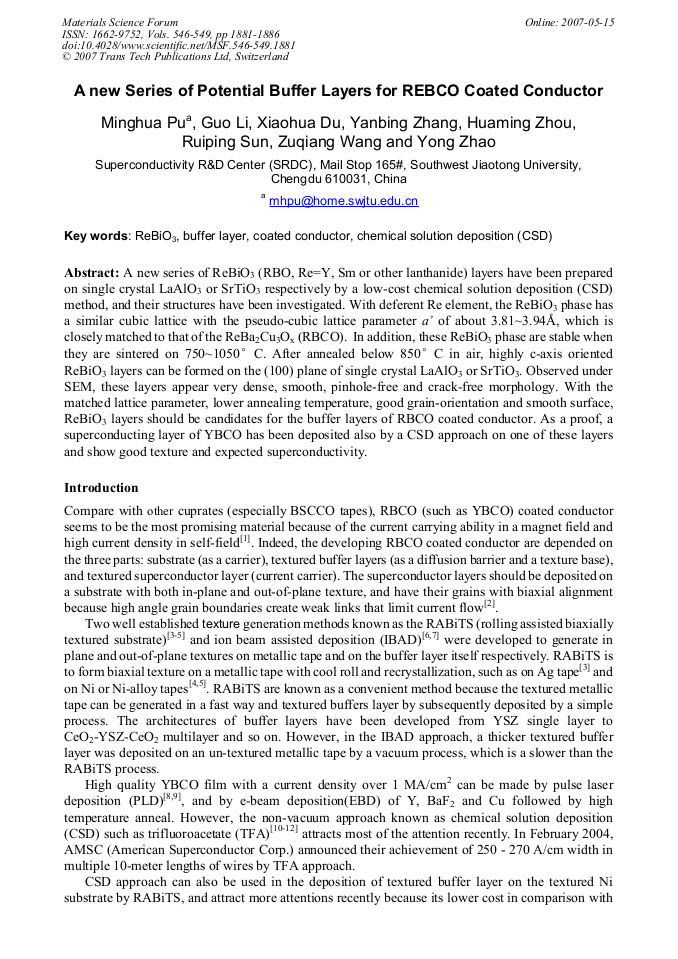

Article Preview

Abstract:

A new series of ReBiO3 (RBO, Re=Y, Sm or other lanthanide) layers have been prepared on single crystal LaAlO3 or SrTiO3 respectively by a low-cost chemical solution deposition (CSD) method, and their structures have been investigated. With deferent Re element, the ReBiO3 phase has a similar cubic lattice with the pseudo-cubic lattice parameter a’ of about 3.81~3.94Å, which is closely matched to that of the ReBa2Cu3Ox (RBCO). In addition, these ReBiO3 phase are stable when they are sintered on 750~1050°C. After annealed below 850°C in air, highly c-axis oriented ReBiO3 layers can be formed on the (100) plane of single crystal LaAlO3 or SrTiO3. Observed under SEM, these layers appear very dense, smooth, pinhole-free and crack-free morphology. With the matched lattice parameter, lower annealing temperature, good grain-orientation and smooth surface, ReBiO3 layers should be candidates for the buffer layers of RBCO coated conductor. As a proof, a superconducting layer of YBCO has been deposited also by a CSD approach on one of these layers and show good texture and expected superconductivity.

You might also be interested in these eBooks

Progress in Light Metals, Aerospace Materials and Superconductors

Info:

Periodical:

Materials Science Forum (Volumes 546-549)

Pages:

1881-1886

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.546-549.1881

Citation:

Cite this paper

Online since:

May 2007

Authors:

Ming Hua Pu, Guo Li, Xiao Hua Du, Yan Bing Zhang, Hua Ming Zhou, Rui Ping Sun, Zu Qiang Wang, Yong Zhao

Keywords:

Buffer Layer, Chemical Solution Deposition, Coated Conductor, ReBiO₃

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] D.C. Larbalestier et al., Nature, 414, 368(2001).

[2] D. T. Verebelyi et al., Appl. Phys. Lett. 76, 1755 (2000).

[3] T. J. Doi et al., Jpn. J. Appl. Phys. 33, 5692 (1994).

[4] A. Goyal et al., Appl. Phys. Lett. 69, 1795(1996).

[5] A. Goyal et al., Physica C. 357-360, 903(2001).

[6] Wang et al., Appl. Phys. Lett., 71, 2955 (1997).

[7] J. R. Groves et al., IEEE Trans. Appl. Supercond. 11, 2822 (2001).

[8] P. N. Arendt, IEEE Trans. Appl. Supercond. 4, 429 (1998).

[9] A. Usoskin et al., IEEE Trans. Appl. Supercond. 11, 3385 (2001).

[10] A. Gupta et al., Appl Phys. Lett., 52, 2077 (1988).

[11] P. C. McIntyre et al., J. Appl. Phys. 77, 5263 (1995).

[12] M. W. Rupich et al., IEEE Trans. on Applied Superconductivity 11, 2927(2001).

[13] M.S. Bhuiyanet al., Supercond. Sci. Technol. 16, 1305 (2003).

[14] S.S. Wang et al., Supercond. Sci. Technol. 18, 1271 (2005).

[15] T.G. Chirayil et al., Physica C, 336(1-2), 63 (2000).

[16] S. Sathyamurthy et al., IEEE Trans. Appl. Supercond. 13, 2658 (2003).

[17] S. Sathyamurthy, M. Paranthaman and H.Y. Zhai, J. Mater. Res. 17, 2181 (2002).

[18] S.S. Shoup et ai., J. Mater. Res. 12, 1017(1997).

[19] M.W. Rupich et al., IEEE Trans. Appl. Supercond. 9, 1527(1999).

[20] A. Sheth et al., IEEE Trans. Appl. Supercond. 9 1514(1999).

[21] Y.X. Zhou et al, 2004 ASC 2004 2MJ06.

[22] T.G. Chirayil et al., Physica C 336, 63(2000).

[23] S. Sathyamurthy and K. Salama, Supercond. Sci. Technol. 13, L1 (2000).

[24] S. Sathyamurthy and K. Salama, Physica C 377, 208 (2002).

[25] Y.X. Zhou et al., Supercond. Sci. Technol. 16, 901 (2003).

[26] J.T. Dawley, R.J. Ong, and P.G. Clem, J. Mater. Res. 17, 1678 (2002).

[27] M.P. Siegal et al., Appl. Phys. Lett. 80, 2710 (2002).

[28] E. Celik et al., IEEE Trans. Appl. Supercond. 13, 2669(2003).

[29] M.S. Bhuiyan et al., Physica C 422, 95(2005).

[30] H. Hiei et al., Physica C 357-360, 942(2001).

[31] H. Okuyucu et al., IEEE Trans. Appl. Supercond. 11, 2889(2001).

[32] M. Paranthaman et al., IEEE Trans. Appl. Supercond. 11, 3146 (2001).

[33] M.I. El. Kawni et al., J. Superconductivity 16, 533 (2003).

[34] J.S. Morrell et al., J. Mater. Res. 15, 621 (2000).

[35] E. Celik and Y.S. Hascicek, Materials Science and Engineering B 96, 300 (2002).

[36] E. Celik and Y.S. Hascicek, Materials Science and Engineering B 1406, 1 (2004).

[37] Y. Takahashi et al., Physica C 392-396, 887(2003).

[38] H. Okuyucu et al., IEEE Trans. Appl. Supercond. 13, 2680 (2003).

[39] O. Castano et al., Physica C 372-376, 806 (2002).

[40] A. Takechi, K. Matsumoto, and K. Osamura, Physica C 392-396, 895 (2003).

[41] A. Takechi, K. Matsumoto, and K. Osamura, IEEE Trans. Appl. Supercond. 13, 2551(2003).
