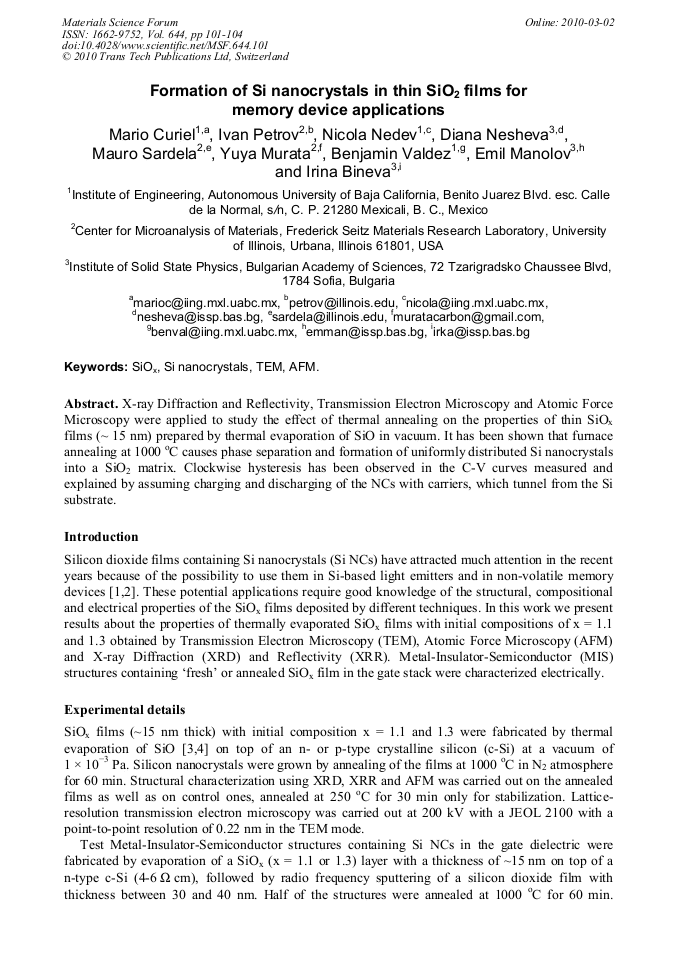

Formation of Si Nanocrystals in Thin SiO₂ Films for Memory Device Applications

Abstract:

X-ray Diffraction and Reflectivity, Transmission Electron Microscopy and Atomic Force Microscopy were applied to study the effect of thermal annealing on the properties of thin SiOx films (~ 15 nm) prepared by thermal evaporation of SiO in vacuum. It has been shown that furnace annealing at 1000 oC causes phase separation and formation of uniformly distributed Si nanocrystals into a SiO2 matrix. Clockwise hysteresis has been observed in the C-V curves measured and explained by assuming charging and discharging of the NCs with carriers, which tunnel from the Si substrate.
