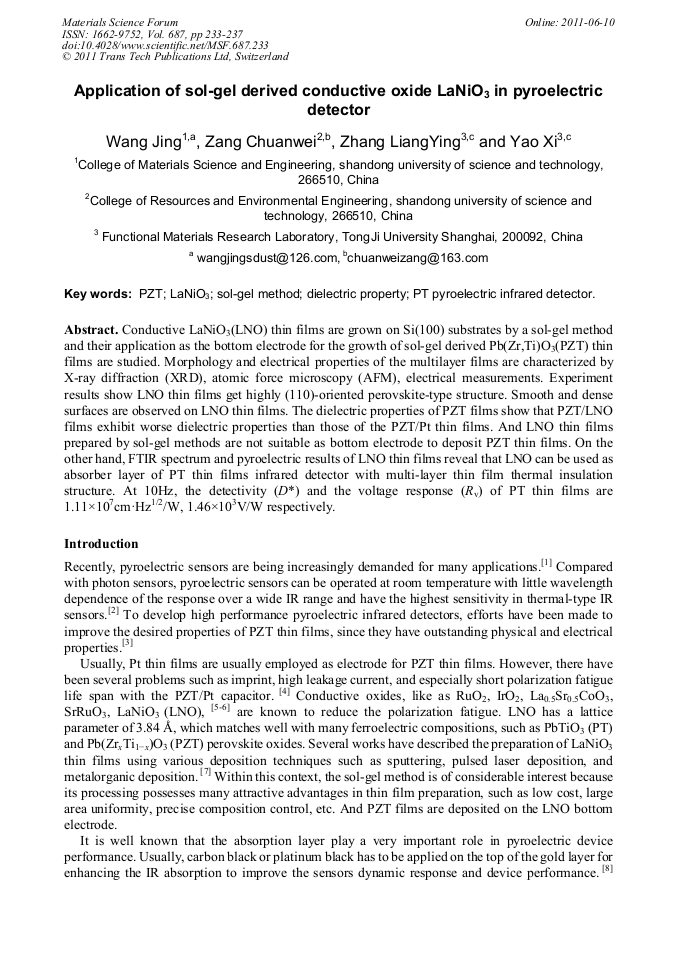

Application of Sol-Gel Derived Conductive Oxide LaNiO₃ in Pyroelectric Detector

Abstract:

Conductive LaNiO₃(LNO) thin films are grown on Si(100) substrates by a sol-gel method and their application as the bottom electrode for the growth of sol-gel derived Pb(Zr,Ti)O₃(PZT) thin films are studied. Morphology and electrical properties of the multilayer films are characterized by X-ray diffraction (XRD), atomic force microscopy (AFM), electrical measurements. Experiment results show LNO thin films get highly (110)-oriented perovskite-type structure. Smooth and dense surfaces are observed on LNO thin films. The dielectric properties of PZT films show that PZT/LNO films exhibit worse dielectric properties than those of the PZT/Pt thin films. And LNO thin films prepared by sol-gel methods are not suitable as bottom electrode to deposit PZT thin films. On the other hand, FTIR spectrum and pyroelectric results of LNO thin films reveal that LNO can be used as absorber layer of PT thin films infrared detector with multi-layer thin film thermal insulation structure. At 10Hz, the detectivity (D*) and the voltage response (R_v) of PT thin films are 1.11×10⁷cm·Hz^1/2/W, 1.46×10³V/W respectively.

• Periodical: Materials Science Forum (Volume 687)
• Pages: 233-237
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.687.233
• Online since: June 2011
• Authors: Jing Wang, Chuan Wei Zang, Liang Ying Zhang, Xi Yao
• Keywords: Dielectric Property, LaNiO₃, PT Pyroelectric Infrared Detector, PZT, Sol-Gel Method

References

[1] C.S. Wei, Y.Y. Lin, and Y.C. Hu et al: Sensors and Actuators A: Physical Vol. 128(2006), pp.18-24.

[2] W.G. Liu, Jongsoo Ko, and W.G. Zhu: Materials Letters Vol. 49(2001), pp.122-126.

[3] Sang-Joo Kim and Yong Soo Kim: Ceramics International, Vol. 36(2010), pp.2189-2196.

[4] Q Zhang and R W Whatmore. Journal of physics D: applied physics Vol. 34 (2001), pp.2296-2301.

[5] D.M. Bubba, S.B. Qadrib and J.S. Horwitzb et al: Applied Surface Science Vol. 223 (2004), pp.275-278.

[6] F. Sánchez, M.V. GarCĭa-Cuenca and N. Domingo et al: Vacuum Vol. 64 (2002), pp.337-341.

[7] M.T. Escote, F.M. Pontes and E.R. Leite et al: Thin Solid Films Vol. 445 (2003), pp.54-58.

[8] W.G. Liu , Jongsoo Ko and W.G. Zhu: Infrared Physics & Technology Vol. 41 (2000), pp.169-173.

[9] H. Suzuki, Y. Miwa, and T. Naoe et al: Journal of the European Ceramic Society Vol. 26 (2006), p.1953-(1956).

[10] A.D. Li, C. Zhu and Ge, D et al: Thin Solid Films Vol. 298 (1997), pp.165-169.

[11] X.H. Hao, J.W. Zhai, and X.J. Chou et al, Solid State Communications Vol. 142 (2007) , pp.498-503.

[12] Y. H. Kim, M. S. Hwang and H. J. Kim, et al: Journal of Applied Physics, Vol. 90(2001), pp.3367-3371.
