Fabrication of 4H-SiC/Nanocrystalline Diamond PN Junctions

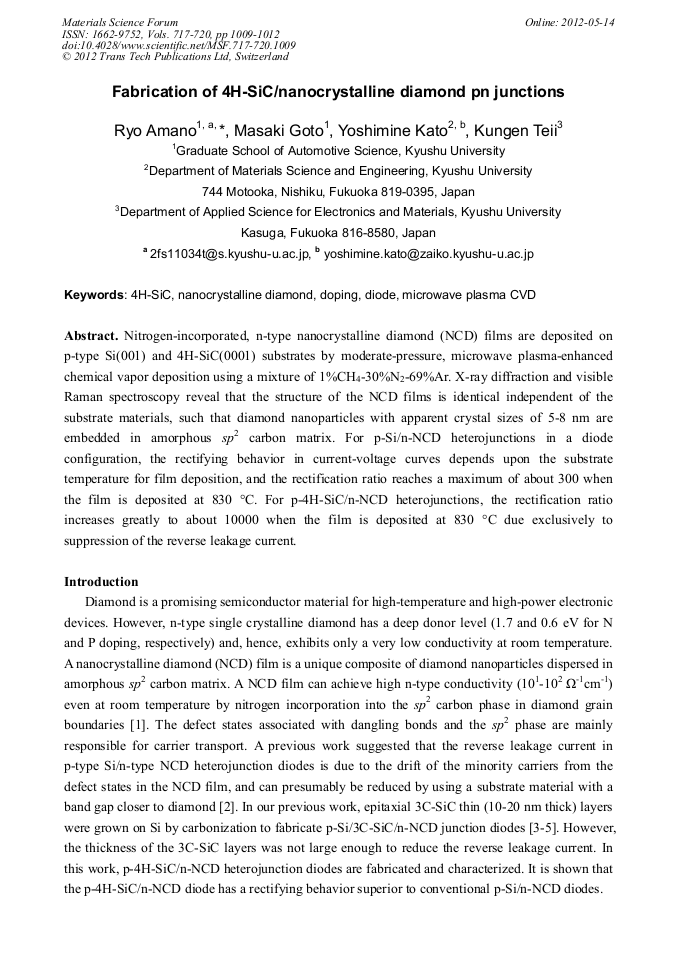

Abstract:

Nitrogen-incorporated, n-type nanocrystalline diamond (NCD) films are deposited on p-type Si(001) and 4H-SiC(0001) substrates by moderate-pressure, microwave plasma-enhanced chemical vapor deposition using a mixture of 1%CH4-30%N2-69%Ar. X-ray diffraction and visible Raman spectroscopy reveal that the structure of the NCD films is identical independent of the substrate materials, such that diamond nanoparticles with apparent crystal sizes of 5-8 nm are embedded in amorphous sp² carbon matrix. For p-Si/n-NCD heterojunctions in a diode configuration, the rectifying behavior in current-voltage curves depends upon the substrate temperature for film deposition, and the rectification ratio reaches a maximum of about 300 when the film is deposited at 830 °C. For p-4H-SiC/n-NCD heterojunctions, the rectification ratio increases greatly to about 10000 when the film is deposited at 830 °C due exclusively to suppression of the reverse leakage current.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2011

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 717-720)

Pages:

1009-1012

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.717-720.1009

Citation:

Cite this paper

Online since:

May 2012

Authors:

Ryo Amano, Masaki Goto, Yoshimine Kato, Kungen Teii

Keywords:

4H-SiC, Diode, Doping, Microwave Plasma CVD, Nanocrystalline Diamond

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Bhattacharyya, O. Auciello, J. Birrell, J. A. Carlisle, L. A. Curtiss, A. N. Goyette, D. M. Gruen, A. R. Krauss, J. Schlueter, A. Sumant, P. Zapol, Appl. Phys. Lett. 79, 1441 (2001).

DOI: 10.1063/1.1400761

Google Scholar

[2] T. Ikeda, K. Teii, Appl. Phys. Lett. 94, 072104 (2009).

Google Scholar

[3] Y. Kato, M. Goto, R. Sato, K. Yamada, A. Koga, K. Teii, C. Srey, S. Tanaka, Surf. Coat. Technol. 206, 990 (2011).

DOI: 10.1016/j.surfcoat.2011.04.021

Google Scholar

[4] A. Koga, K. Teii, M. Goto, K. Yamada, Y. Kato, Jpn. J. Appl. Phys. 50, 01AB08 (2011).

Google Scholar

[5] M. Goto, A. Koga, K. Yamada, Y. Kato, K. Teii, Mater. Sci. Forum 679-680, 524 (2011).

Google Scholar

[6] P. Scherrer, Nachr. Ges. Wiss. Göttingen 2, 98(1918).

Google Scholar

[7] B. D. Cullity, Elements of X-ray Diffraction, Addison-Wesley, Reading, MA, 1978.

Google Scholar

[8] A. C. Ferrari, J. Robertson, Phys. Rev. B 61, 14095 (2000).

Google Scholar

[9] A. C. Ferrari, J. Robertson, Phys. Rev. B 63, 121405(R) (2001).

Google Scholar
