11.72 cm² SiC Wafer-Scale Interconnected 1.8 kV / 64 kA PiN Diode

Abstract:

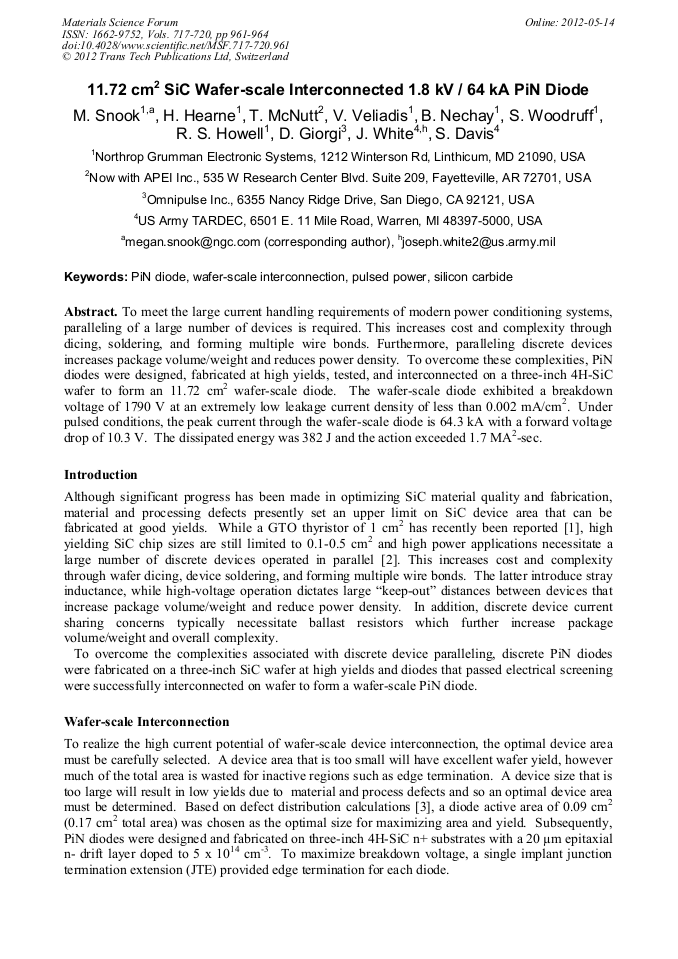

To meet the large current handling requirements of modern power conditioning systems, paralleling of a large number of devices is required. This increases cost and complexity through dicing, soldering, and forming multiple wire bonds. Furthermore, paralleling discrete devices increases package volume/weight and reduces power density. To overcome these complexities, PiN diodes were designed, fabricated at high yields, tested, and interconnected on a three-inch 4H-SiC wafer to form an 11.72 cm² wafer-scale diode. The wafer-scale diode exhibited a breakdown voltage of 1790 V at an extremely low leakage current density of less than 0.002 mA/cm². Under pulsed conditions, the peak current through the wafer-scale diode is 64.3 kA with a forward voltage drop of 10.3 V. The dissipated energy was 382 J and the action exceeded 1.7 MA²-sec.
