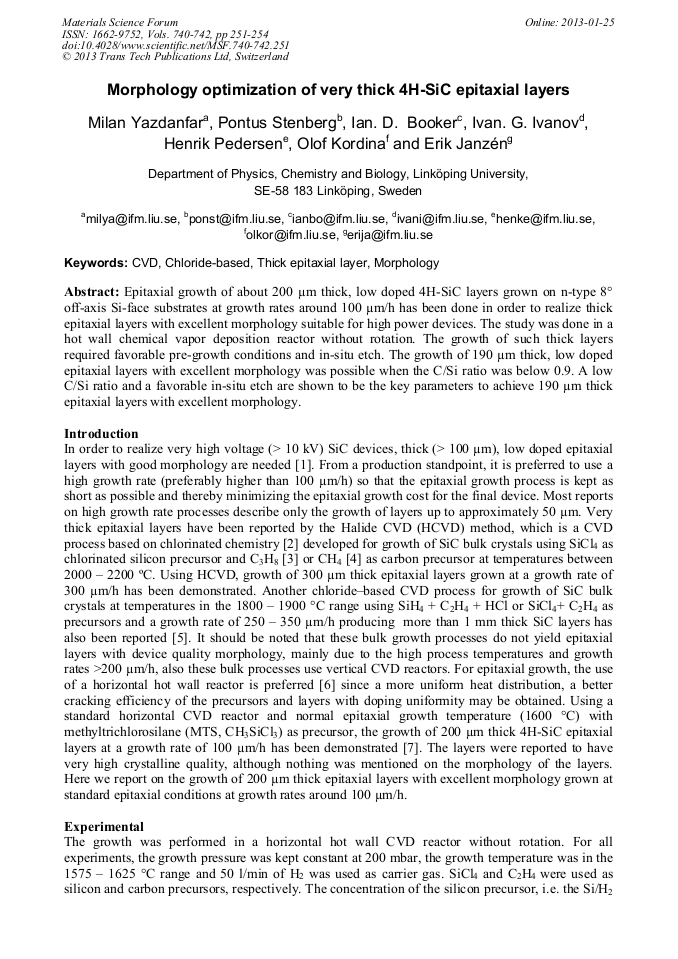

Morphology Optimization of Very Thick 4H-SiC Epitaxial Layers

Abstract:

Epitaxial growth of about 200 µm thick, low doped 4H-SiC layers grown on n-type 8° off-axis Si-face substrates at growth rates around 100 µm/h has been done in order to realize thick epitaxial layers with excellent morphology suitable for high power devices. The study was done in a hot wall chemical vapor deposition reactor without rotation. The growth of such thick layers required favorable pre-growth conditions and in-situ etch. The growth of 190 µm thick, low doped epitaxial layers with excellent morphology was possible when the C/Si ratio was below 0.9. A low C/Si ratio and a favorable in-situ etch are shown to be the key parameters to achieve 190 µm thick epitaxial layers with excellent morphology.

• Periodical: Materials Science Forum (Volumes 740-742)
• Pages: 251-254
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.740-742.251
• Online since: January 2013
• Authors: Milan Yazdanfar, Pontus Stenberg, Ian D. Booker, Ivan.G Ivanov, Henrik Pedersen, Olof Kordina, Erik Janzén
• Keywords: Chloride-Based, CVD, Morpholoy, Thick Epitaxial Layer

References

[1] J. A. Cooper, A. Agarwal, Proceedings of the IEEE 90 (2009) 956.

[2] H. Pedersen, S. Leone, O. Kordina, A. Henry, S. Nishizawa, Y. Koshka, E. Janzén, Chem.Rev. 112 (2012) 2434.

DOI: 10.1021/cr200257z

[3] H. J. Chung, A. Y. Polyakov, S. W. Huh, S. Nigam, M. Skowronski, J. Appl. Phys. 97 (2005) 084913.

[4] M. A. Fanton, B. E. Weiland, D. W. Snyder, J. Appl. Phys. 101 (2007) 014903.

[5] S. Leone, F. C. Beyer, A. Henry, C. Hemmingsson, O. Kordina, E. Janzén, Crystal Growth and Design 10 (2010) 3743.

DOI: 10.1021/cg1005743

[6] A. Henry, J. Hassan, J. P. Bergman, C. Hallin, E. Janzén, Chem. Vapor Deposition 12 (2006) 475.

[7] H. Pedersen, S. Leone, A. Henry, V. Darakchieva, P. Carlsson, A. Gällström, E. Janzén, Phys. Stat. Sol.(RRL) 2 (2008) 188.

[8] M. Yazdanfar, S. Leone, H. Pedersen, O. Kordina, A. Henry, E. Janzén, Mater. Sci. Forum 717-720 (2012) 109.

DOI: 10.4028/www.scientific.net/msf.717-720.109

[9] J. A. Powell, J. B. Petit, J. H. Edgar, I. G. Jenkins, L. G. Matus, J. W. Yang, P. Pirouz, W. J. Choyke, L. Clemen, M. Yoganathan, Appl. Phys. Lett. 59 (1991) 333.

DOI: 10.1063/1.105960

[10] A. Fissel. J. Cryst. Growth 212 (2000) 439.

[11] T. Kimoto, H. Nishino, W. S. Yoo, H. Matsunami, J. Appl. Phys. 73 (1993) 726.

[12] D. J. Larkin, P. G Neudeck, J. A. Powell, L. G. Matus, Appl. Phys. Lett. 65 (1994) 1659.

[13] J. Hassan, A. Henry, I. G. Ivanov, J. P. Bergman, J. Appl. Phys. 105 (2009) 123513.
