HomeMaterials Science ForumMaterials Science Forum Vols. 740-7423C-SiC Heteroepitaxy on Hexagonal SiC Substrates

3C-SiC Heteroepitaxy on Hexagonal SiC Substrates

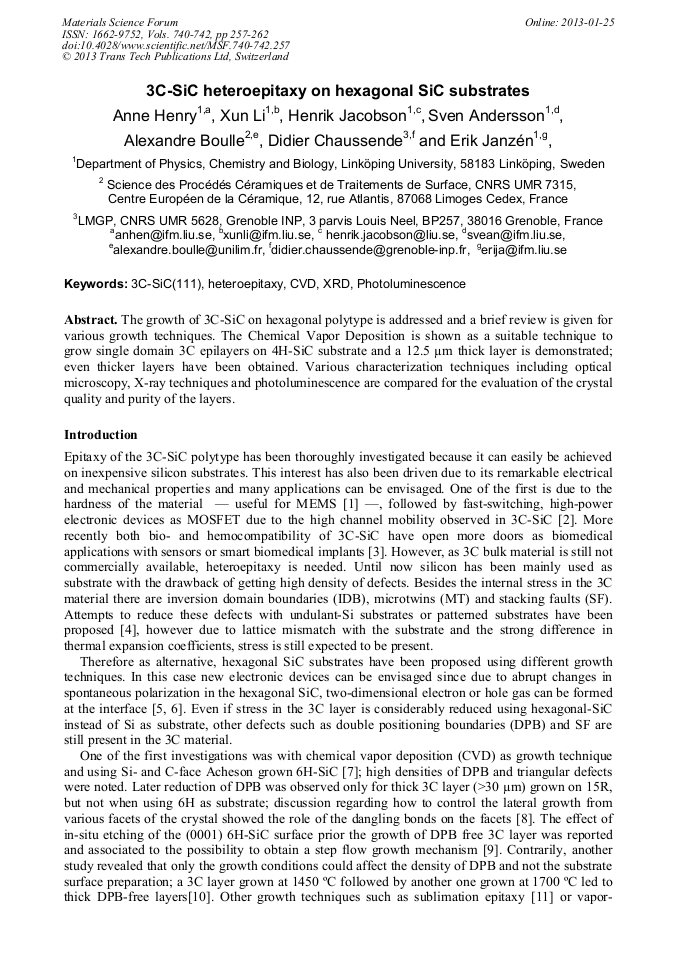

Article Preview

Abstract:

The growth of 3C-SiC on hexagonal polytype is addressed and a brief review is given for various growth techniques. The Chemical Vapor Deposition is shown as a suitable technique to grow single domain 3C epilayers on 4H-SiC substrate and a 12.5 µm thick layer is demonstrated; even thicker layers have been obtained. Various characterization techniques including optical microscopy, X-ray techniques and photoluminescence are compared for the evaluation of the crystal quality and purity of the layers.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2012

Info:

Periodical:

Materials Science Forum (Volumes 740-742)

Pages:

257-262

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.740-742.257

Citation:

Cite this paper

Online since:

January 2013

Authors:

Anne Henry, Xun Li, Henrik Jacobson, Sven Andersson, Alexandre Boulle, Didier Chaussende, Erik Janzén

Keywords:

3C-SiC(111), CVD, Heteroepitaxy, Photoluminescence (PL), X-Ray Diffraction (XRD)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] R. Cheung; "Silicon Carbide Micro Electromechanical Systems for Harsh Environments"; Imperial College Press, (2006)

[2] J. Wan, M.A. Capano, M.R. Melloch, N-channel 3C-SiC MOSFETs on silicon substrate, IEEE Electron Device Lett. 23 (2002) 482

DOI: 10.1109/led.2002.801259

[3] S.E. Saddow, A. Oliveros, C. Coletti, C.L. Frewin, N. Schettini, A. Oliveros and M. Jarosezeski, Single-Crystal Silicon Carbide: A Biocompatible and Hemocompatible Semiconductor for Advanced Biomedical Applications, Mater. Sci. Forum 679-680 (2011) 824

DOI: 10.4028/www.scientific.net/msf.679-680.824

[4] Y. Okui, C. Jacob, S. Ohshima and S. Nishino, Control of Pendeo Epitaxial growth of 3C-SiC on Silicon Substrate, Mater. Sci. Forum 433-436 (2003) 209

DOI: 10.4028/www.scientific.net/msf.433-436.209

[5] M.V.S. Chandrashekhar, C.I. Thomas, J. Lu, M.G. Spencer, Electronic properties of a 3C/4H SiC polytype heterojunction formed on the Si face, Appl. Phys. Lett. 90 (2007) 173509

DOI: 10.1063/1.2730738

[6] A.A. Lebedev, A.M. Strel'chuk, N.S. Savkina, E.V. Bogdanova, A.S. Tregubova, A.N. Kuznetsov, and L.M. Sorokin, Investigation of the p−-3C-SiC/n+-6H-SiC heterostructures with modulated doping, Techn. Phys. Lett., 28 (2002) 1011

DOI: 10.1134/1.1535487

[7] H.S. Kong, J.T. Glass and R.F. Davis, Growth rate, surface morphology, and defect microstructures of β–SiC films chemically vapor deposited on 6H–SiC substrates, J. Mater. Res. 4 (1989) 204

DOI: 10.1557/jmr.1989.0204

[8] K. Nishino, T. Kimoto, H. Matsunami, Reduction of Double Positioning Twinning in 3C-SiC Grown on \alpha -SiC Substrates, Jpn. J. Appl. Phys. 36 (1997) 5202

DOI: 10.1143/jjap.36.5202

[9] Z.Y. Xie, J.H. Edgar, B.K. Burkland, J.T. George, and J. Chaudhuri, DPBs-free and polytype controlled growth of SiC via surface etching on on-axis 6H-SiC(0 0 0 1) J. Cryst. Growth 224 (2001) 235

DOI: 10.1016/s0022-0248(01)01024-7

[10] M. Soueidan, G. Ferro, B. Nsouli, F. Cauwet, J. Dazord, G. Younes, and Y. Monteil, Effect of growth parameters on the heteroepitaxy of 3C-SiC on 6H-SiC substrate by chemical vapor deposition, Mater. Sci. Eng. B 130 (2006) 66

DOI: 10.1016/j.mseb.2006.02.052

[11] V. Jokubavicius, R. Liljedahl, Y. Ou, H. Ou, S. Kamiyama, R. Yakimova, and M. Syväjärvi, Geometrical Control of 3C and 6H-SiC Nucleation on Low Off-Axis Substrates, Mater. Sci. Forum 679-680 (2011) 103

DOI: 10.4028/www.scientific.net/msf.679-680.103

[12] M. Soueidan, G. Ferro, O. Kim-Hak, F. Cauwet, B. Nsouli, Vapor–Liquid–Solid Growth of 3C-SiC on α-SiC Substrates. 1. Growth Mechanism, Cryst. Growth Des. 8 (2008) 1044

DOI: 10.1021/cg070499+

[13] L. Latu-Romain, D. Chaussende and M. Pons, High-Temperature Nucleation of Cubic Silicon Carbide on (0001) Hexagonal-SiC Nominal Surfaces, Cryst. Growth Des. 6 (2006) 2788

DOI: 10.1021/cg060420l

[14] K. Seki, S. Harada and T. Ujihara, Solution growth of DPB-free 3C-SiC, this proceeding

[15] A. Fissel, Artificially layered heteropolytypic structures based on SiC polytypes: molecular beam epitaxy, characterization and properties, Phys. Rep. 379 (2003) 149

DOI: 10.1016/s0370-1573(02)00632-4

[16] M. Camarda, Monte Carlo study of hetero-polytypical growth of cubic on hexagonal silicon carbide polytypes, Surf. Sci. 606 (2012) 1263

DOI: 10.1016/j.susc.2012.04.004

[17] A. J. Trunek, P. G. Neudeck, J. A. Powell and D. J. Spry, Comparative Growth Behavior of 3C-SiC Mesa Heterofilms with and without Extended Defects, Mater. Sci. Forum 457-460 (2004) 261

DOI: 10.4028/www.scientific.net/msf.457-460.261

[18] A. Henry, S. Leone, F.C. Beyer, S. Andersson, O. Kordina and E. Janzén. Chloride based CVD of 3C-SiC on (0001) α-SiC Substrate, Mater. Sci. Forum 679-680 (2011) 75

DOI: 10.4028/www.scientific.net/msf.679-680.75

[19] X. Li, S. Leone, S. Andersson, O. Kordina, A. Henry and E. Janzén, CVD Heteroepitaxial Growth of 3C-SiC on 4H-SiC (0001) Substrates, Mater. Sci. Forum 717-720 (2012) 189

DOI: 10.4028/www.scientific.net/msf.717-720.189

[20] D. Chaussende, P. Chaudouet, L. Auray, M. Pons and R. Madar, Electron Back Scattering Diffraction (EBSD) as a tool for the investigation of 3C-SiC nucleation and growth on 6H or 4H, Mater. Sci. Forum, 457-460 (2003) 387

DOI: 10.4028/www.scientific.net/msf.457-460.387

[21] M. Marinova, A. Mantzari, and E.K. Polychroniadis, Some recent results on the 3C-SiC structural defects, Nano. Mater., Thin Films and Hard Coatings for Advanced Applications 159 (2010) 39

DOI: 10.4028/www.scientific.net/ssp.159.39

[22] A. Boulle, D. Chaussende, F. Conchon, G. Ferro and O. Masson, Characterization of stacking faults in thick 3C-SiC crystal using high-resolution diffuse X-ray scattering, J. Crys. Growth 310 (2008) 982

DOI: 10.1016/j.jcrysgro.2007.11.149

[23] A. Boulle, D. Chaussende, L. Latu-Romain, F. Conchon, O. Masson, and R. Guinebretière, X-ray diffuse scattering from stacking faults in thick 3C-SiC single crystals, Appl. Phys. Lett. 89 (2006) 091902

DOI: 10.1063/1.2338787

[24] H. Jacobson, X. Li, E. Janzén, A. Henry, Structural investigation of heteroepitaxial 3C-SiC grown on 4H-SiC substrates, this proceeding

DOI: 10.4028/www.scientific.net/msf.740-742.319

[25] J. Camassel, S. Juillaguet, M. Zielinski, and C. Balloud, Application of LTPL Investigation Methods to CVD-Grown SiC, Chem. Vap. Dep. 12 (2006) 549

DOI: 10.1002/cvde.200606472

[26] W.J. Choyke, Z.C. Feng and J.A. Powell, Low-temperature photoluminescence studies of chemical-vapor-deposition-grown 3C-SiC on Si, J. Appl. Phys. 64 (1988) 3163.

DOI: 10.1063/1.341532
