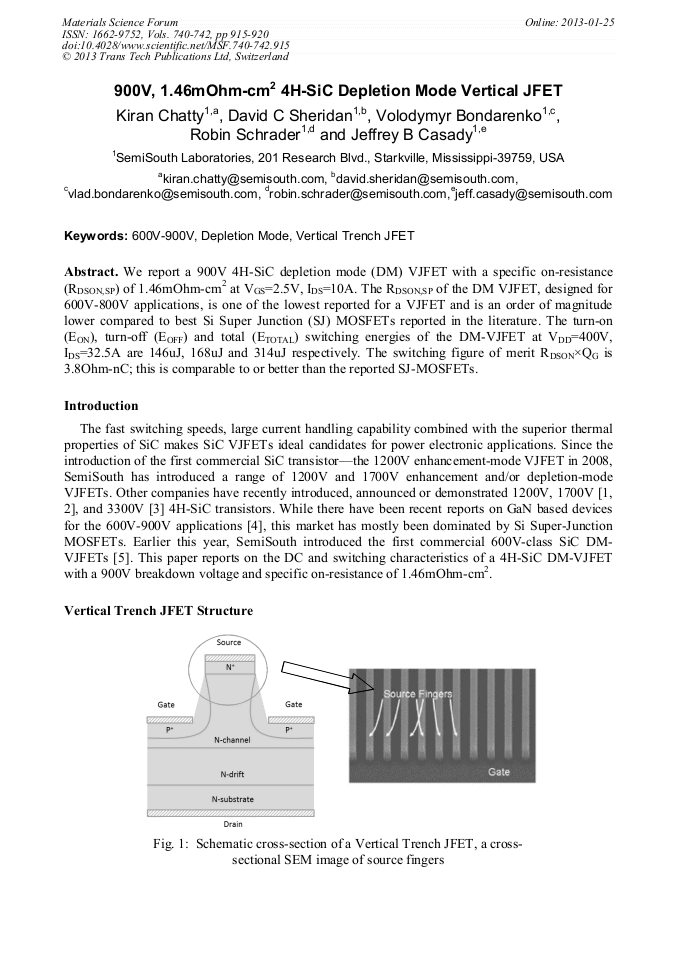

900V, 1.46mOhm-cm² 4H-SiC Depletion Mode Vertical JFET

Abstract:

We report a 900V 4H-SiC depletion mode (DM) VJFET with a specific on-resistance (R_DSON,SP) of 1.46mOhm-cm² at V_GS=2.5V, I_DS=10A. The R_DSON,SP of the DM VJFET, designed for 600V-800V applications, is one of the lowest reported for a VJFET and is an order of magnitude lower compared to best Si Super Junction (SJ) MOSFETs reported in the literature. The turn-on (E_ON), turn-off (E_OFF) and total (E_TOTAL) switching energies of the DM-VJFET at VDD=400V, I_DS=32.5A are 146uJ, 168uJ and 314uJ respectively. The switching figure of merit R_DSON×Q_G is 3.8Ohm-nC; this is comparable to or better than the reported SJ-MOSFETs.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2012

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 740-742)

Pages:

915-920

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.740-742.915

Citation:

Cite this paper

Online since:

January 2013

Authors:

Kiran Chatty, David C. Sheridan, Volodymyr Bondarenko, Robin Schrader, Jeffrey B. Casady

Keywords:

600V-900V, Depletion Mode, Vertical Trench JFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Information on http: /www. cree. com.

Google Scholar

[2] Information on http: /www. infineon. com.

Google Scholar

[3] A. Bolotnikov, P. Losee, K. Matocha, J. Glaser, J. Nasadoski, L. Wang, A. Elasser, S. Arthur, Z. Stum, P. Sandvik, Y. Sui, T. Johnson, J. Sabate and L. Stevanovic, 3. 3kV SiC DMOSFETs Designed for Low On-Resistance and Fast Switching, Proc. ISPSD (2012).

DOI: 10.1109/ispsd.2012.6229103

Google Scholar

[4] R. Chu, D. Brown, D. Zehnder, X. Chen, A. Williams, R. Li, M. Chen, S. Newell and K. Boutros, Normally-off GaN-on-Si Metal-Insulator-Semiconductor Field-Effect Transistor with 600V Blocking Capability at 200 °C, ISPSD (2012) 237-239.

DOI: 10.1109/ispsd.2012.6229067

Google Scholar

[5] Information on http: /www. semisouth. com.

Google Scholar

[6] R. Rupp, R. Gerlach, U. Kirchner, A. Schlogl and R. Kern, Performance of a 650V SiC Diode with Reduced Chip Thickness, Mat Sci Forum 717-720 (2012) 921-924.

DOI: 10.4028/www.scientific.net/msf.717-720.921

Google Scholar

[7] R. Kelley, A. Ritenour, D. Sheridan and J. Casady, Proc. APEC (2010) 1838-1841.

Google Scholar

[8] SemiSouth 1200V/30A Diode (SDP30S120) datasheet, http: /www. semisouth. com.

Google Scholar

[9] SemiSouth 650V/55mOhm DM-VJFET (SJDC065R055) datasheet, http: /www. semisouth. com.

Google Scholar

[10] IPP60R099CP, IPW60R045CP and IPW65R037CP datasheets on http: /www. infineon. com.

Google Scholar
