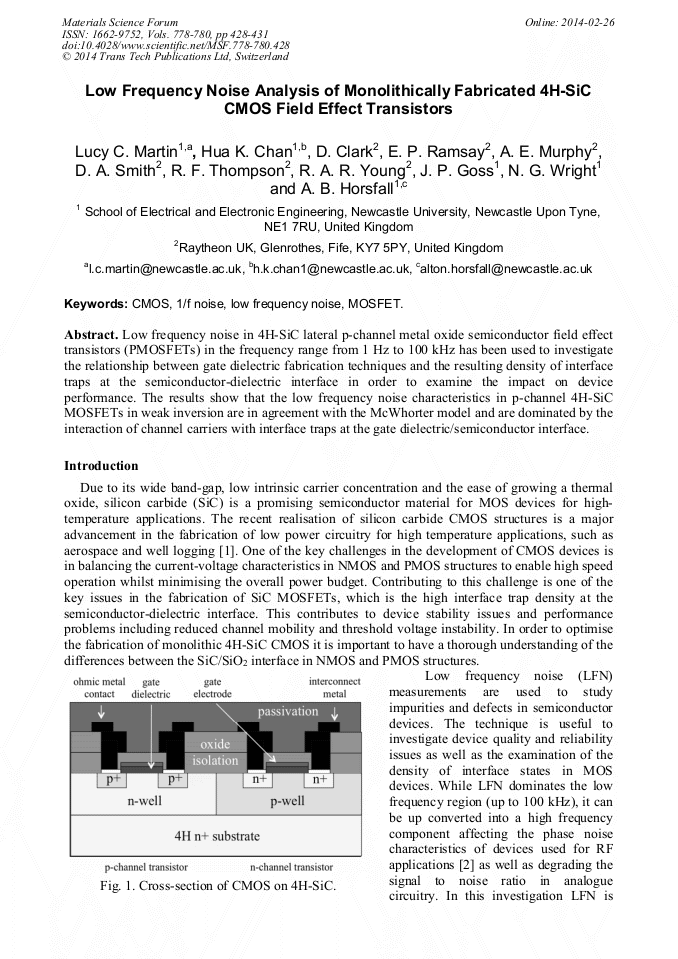

Low Frequency Noise Analysis of Monolithically Fabricated 4H-SiC CMOS Field Effect Transistors

Abstract:

Low frequency noise in 4H-SiC lateral p-channel metal oxide semiconductor field effect transistors (PMOSFETs) in the frequency range from 1 Hz to 100 kHz has been used to investigate the relationship between gate dielectric fabrication techniques and the resulting density of interface traps at the semiconductor-dielectric interface in order to examine the impact on device performance. The results show that the low frequency noise characteristics in p-channel 4H-SiC MOSFETs in weak inversion are in agreement with the McWhorter model and are dominated by the interaction of channel carriers with interface traps at the gate dielectric/semiconductor interface.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2013

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 778-780)

Pages:

428-431

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.778-780.428

Citation:

Cite this paper

Online since:

February 2014

Authors:

Lucy Claire Martin, Hua Khee Chan, David T. Clark, Ewan P. Ramsay, A.E. Murphy, Dave A. Smith, Robin. F. Thompson, R.A.R. Young, Jonathan P. Goss, Nicholas G. Wright, Alton B. Horsfall

Keywords:

1/f Noise, CMOS, Low Frequency Noise, MOSFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. L. Dreike, D. M. Fleetwood, D.B. King et al, An overview of high-temperature electronic device technologies and potential applications, IEEE Trans. Comput. Hybrids, Man. Tech. A 17 (1994) 594.

DOI: 10.1109/95.335047

Google Scholar

[2] S. L. Rumyantsev, M. S. Shur, M. E. Levinshtein et al, Low frequency noise in 4H-SiC metal oxide semiconductor field effect transistors, J. Appl. Phys. 104 (2008) 094505.

DOI: 10.1063/1.3009664

Google Scholar

[3] L. M. Terman, An investigation of surface states at a silicon/silicon oxide interface employing metal-oxide-silicon diodes, Solid-State Electron, 5 (192) 285-299.

DOI: 10.1016/0038-1101(62)90111-9

Google Scholar

[4] L. C. Martin, D. Clark, E. P. Ramsay et al, Comparison of oxide quality for monolithically fabricated SiC CMOS structures, Ma. Sci. For., 891 (2013) 740-742.

Google Scholar

[5] H. G. Lee, S. Y. Oh, G. Fuller et al, A simple and accurate method to measure the threshold coltage of an enhancement-mode MOSFET, IEEE Trans. Electron Dev. 29 (1982) 346-348.

DOI: 10.1109/t-ed.1982.20707

Google Scholar

[6] F. N. Hooge, 1/f noise sources, IEEE Trans. Electron Dev. 41 (1994) 1926-(1935).

Google Scholar

[7] A. L. McWhorter, Semiconductor Surface Physics, (University of Pennsylvania Press, Philadephia, 1957) p.207.

Google Scholar
