Ti-50.2Ni-5Zr Shape Memory Alloy Square Rots Production by the Casting Technique

K. Kitamura

doi:10.4028/www.scientific.net/MSF.783-786.2445

Paper Titles

Mechanical Properties of Ti-Fe-Sn Biomedical Alloys with or without Aging Treatment
p.2423

Controllable Electrostriction of Polyurethane Film
p.2429

Effects of Sintering Conditions on the Mechanical Properties of Alumina Particle Dispersed Magnesium SPS Compacts
p.2433

Geometric Modeling of Ceramics Dendrites to Modulate Energy and Material Flows by Using Stereolithography
p.2439

Ti-50.2Ni-5Zr Shape Memory Alloy Square Rots Production by the Casting Technique
p.2445

A Study of Solid State Bonding Strength of Nonferrous Metals by Using Metal Salt Generation Bonding Method
p.2450

Progress on High Pressure Pneumatic Forming and Warm Hydroforming of Titanium and Magnesium Alloy Tubular Components
p.2456

Bimodal and Monomodal Diamond Particle Effect on the Thermal Conductivity of Diamond Particle Dispersed Al Matrix Composite Produced by SPS
p.2462

Influence of Co on Strength of Cu-Ni-Co-Si Alloy
p.2468

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786Ti-50.2Ni-5Zr Shape Memory Alloy Square Rots...

Ti-50.2Ni-5Zr Shape Memory Alloy Square Rots Production by the Casting Technique

Abstract:

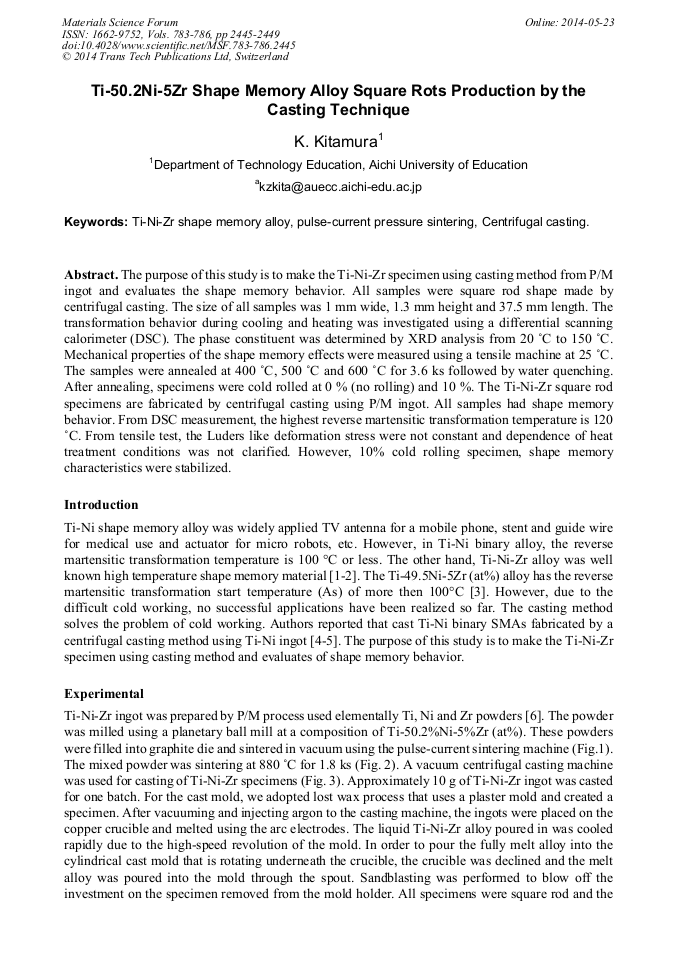

The purpose of this study is to make the Ti-Ni-Zr specimen using casting method from P/M ingot and evaluates the shape memory behavior. All samples were square rod shape made by centrifugal casting. The size of all samples was 1 mm wide, 1.3 mm height and 37.5 mm length. The transformation behavior during cooling and heating was investigated using a differential scanning calorimeter (DSC). The phase constituent was determined by XRD analysis from 20 °C to 150 °C. Mechanical properties of the shape memory effects were measured using a tensile machine at 25 °C. The samples were annealed at 400 °C, 500 °C and 600 °C for 3.6 ks followed by water quenching. After annealing, specimens were cold rolled at 0 % (no rolling) and 10 %. The Ti-Ni-Zr square rod specimens are fabricated by centrifugal casting using P/M ingot. All samples had shape memory behavior. From DSC measurement, the highest reverse martensitic transformation temperature is 120 °C. From tensile test, the Luders like deformation stress were not constant and dependence of heat treatment conditions was not clarified. However, 10% cold rolling specimen, shape memory characteristics were stabilized.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

2445-2449

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.783-786.2445

Citation:

Cite this paper

Online since:

May 2014

Authors:

K. Kitamura*

Keywords:

Centrifugal Casting, Pulse-Current Pressure Sintering, Ti-Ni-Zr Shape Memory Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Monastyrsky, G. E., Odnosum, V., Humbeeck, J. V., Kolomytsev, V. I. and Koval, Yu. N.,　Intermetallics, Vol. 10, No. 1 (2002), pp.95-103.

DOI: 10.1016/s0966-9795(01)00115-7

Google Scholar

[2] Bertheville, B., Journal of Alloys and Compounds, Vol. 398, No. 1-2 (2005), pp.94-99.

Google Scholar

[3] Hsieh, S., F. and Wu, S. K., Materials Characterization, Vol. 41 (1998), pp.151-162.

Google Scholar

[4] Kitamura, K., Kuchida, T., Inaba, T., Tokuda, M. and Yoshimi, Y., Material Science and Engineering, A, Vol. 438-440 (2006), pp.675-678.

DOI: 10.1016/j.msea.2006.02.172

Google Scholar

[5] Kitamura, K., Kuchida, T., Inaba, T., Tokuda, M. and Yoshimi, Y., Material Transactions, Vol 47, No. 11 (2006), pp.2867-2870.

DOI: 10.2320/matertrans.47.2867

Google Scholar

[6] Terayama, A., Nagai, K. and Kyogoku, H., Fabrication of Ti-Ni-Zr Shape Memory Alloy by P/M Process, Material Transactions, Vol. 50, No. 10 (2009), pp.2446-2450.

DOI: 10.2320/matertrans.m2009213

Google Scholar
