Progress on High Pressure Pneumatic Forming and Warm Hydroforming of Titanium and Magnesium Alloy Tubular Components

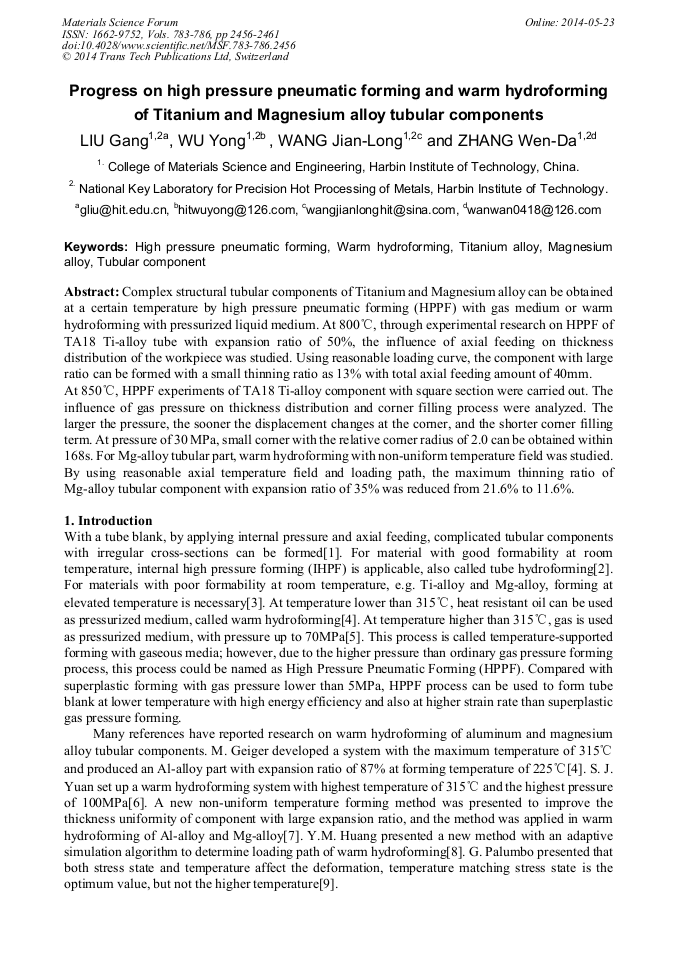

Abstract:

Complex structural tubular components of Titanium and Magnesium alloy can be obtained at a certain temperature by high pressure pneumatic forming (HPPF) with gas medium or warm hydroforming with pressurized liquid medium. At 800°C, through experimental research on HPPF of TA18 Ti-alloy tube with expansion ratio of 50%, the influence of axial feeding on thickness distribution of the workpiece was studied. Using reasonable loading curve, the component with large ratio can be formed with a small thinning ratio as 13% with total axial feeding amount of 40mm. At 850°C, HPPF experiments of TA18 Ti-alloy component with square section were carried out. The influence of gas pressure on thickness distribution and corner filling process were analyzed. The larger the pressure, the sooner the displacement changes at the corner, and the shorter corner filling term. At pressure of 30 MPa, small corner with the relative corner radius of 2.0 can be obtained within 168s. For Mg-alloy tubular part, warm hydroforming with non-uniform temperature field was studied. By using reasonable axial temperature field and loading path, the maximum thinning ratio of Mg-alloy tubular component with expansion ratio of 35% was reduced from 21.6% to 11.6%.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 2456-2461
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.2456
• Online since: May 2014
• Authors: Gang Liu*, Yong Wu, Jian Long Wang, Wen Da Zhang
• Keywords: High Pressure Pneumatic Forming, Magnesium Alloy, Titanium Alloy, Tubular Component, Warm Hydroforming

References

[1] F. Dohmann, C. Hartl, Hydroforming - a method to manufacture lightweight parts, Journal of Materials Processing Technology. 60(1-4) (1996) 669-676.

DOI: 10.1016/0924-0136(96)02403-x

[2] Ahmetoglu M, Altan T. Tube hydroforming: state-of-the-art and future trends [J]. Journal of Materials Processing Technology. 98(2000) 25-33.

DOI: 10.1016/s0924-0136(99)00302-7

[3] E. H. Mult, M. Geiger, Sheet and tube Hydroforming at elevated temperatures, International Conference on Hydroforming, Fellbach-Germany, 2003, pp.259-278.

[4] M. Geiger, M. Merklein, M. Celeghini, H. -G. Haldenwanger, M. Prier. Sheet and tube hydroforming at elevated temperatures, Hydroforming of Tubes, Extrusions and Sheet Metals, 3 (2003) 259-278.

DOI: 10.1016/s0007-8506(07)60083-3

[5] R. Neugebauer, A. Sterzing. Opportunities for progressive applications by means of integrating and combining various technologies with hydroforming. Tube Hydroforming Technology Proceedings of TUBEHYDRO2007, Harbin, China, 2007, pp.79-87.

[6] S.J. Yuan, J. Qi, Z. He, An experimental investigation into the formability of hydroforming 5a02 al-tubes at elevated temperature, Journal of Materials Processing Technology. 177(2006): 680-683.

DOI: 10.1016/j.jmatprotec.2006.04.044

[7] S.J. Yuan, B.G. Cheng, X. Liu , Y.C. Xu, X.S. Wang, Warm hydroforming of aluminum alloy part by axially different heating zones, Steel Research International. 81(9) (2010) 548-551.

[8] Y.M. Hwang. Tube hydroforming of magnesium alloys at elevated temperatures, Journal of Engineering Materials and Technology. 7-132 (2010) 1-7.

[9] G. Palumbo, A. Piccininni, P. Guglielmi, Numerical/experimental investigations about the warm hydroforming of an aluminum alloy component. 11th International Conference on Numerical Methods in Industrial Forming Processes, AIP Conference Proceedings. 1532(2013).

DOI: 10.1063/1.4806817

[10] X. Wu., Non-steady-state creep behavior in tube gas forming. Journal of Materials Engineering and Performance. 16(4) (2007) 418-431.

DOI: 10.1007/s11665-007-9077-4

[11] M. Liewald, R. Pop. Magnesium tube hydroforming, Materialwissenschaft and Werkstofftechnik, 39(4-5)(2008) 343-348.

DOI: 10.1002/mawe.200800303

[12] G. Liu, K.H. Wang, Y. Xu, B. Wang, S.J. Yuan, An approach to improve thickness uniformity of TA15 tubular part formed by gas bulging process, Advanced Materials Research. 712-715(2013) 651-657.

DOI: 10.4028/www.scientific.net/amr.712-715.651
