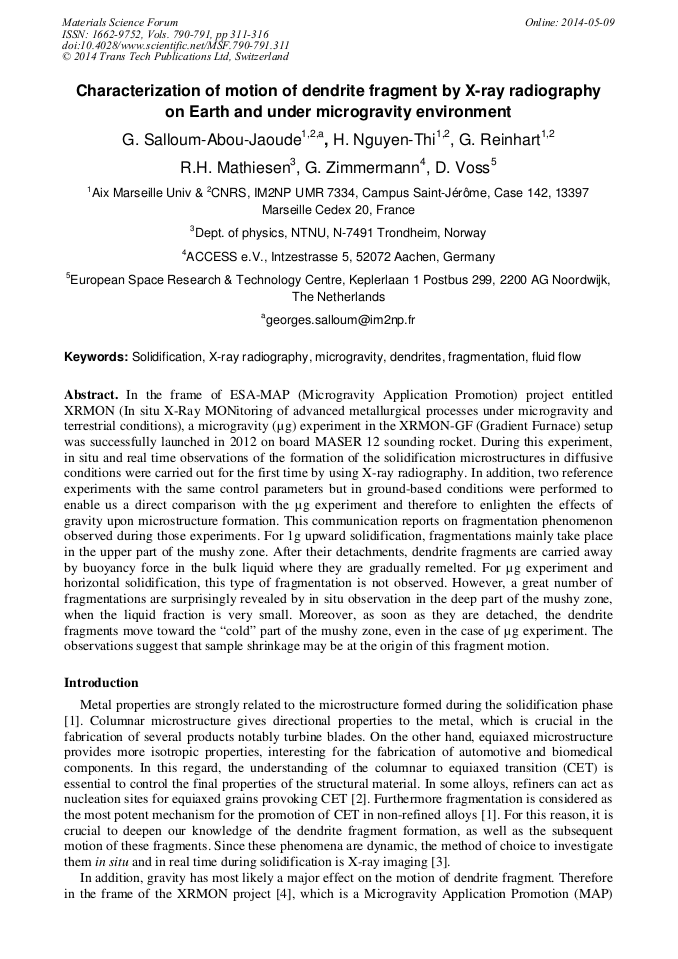

Characterization of Motion of Dendrite Fragment by X-Ray Radiography on Earth and under Microgravity Environment

Abstract:

In the frame of ESA-MAP (Microgravity Application Promotion) project entitled XRMON (In situ X-Ray MONitoring of advanced metallurgical processes under microgravity and terrestrial conditions), a microgravity (μg) experiment in the XRMON-GF (Gradient Furnace) setup was successfully launched in 2012 on board MASER 12 sounding rocket. During this experiment, in situ and real time observations of the formation of the solidification microstructures in diffusive conditions were carried out for the first time by using X-ray radiography. In addition, two reference experiments with the same control parameters but in ground-based conditions were performed to enable us a direct comparison with the μg experiment and therefore to enlighten the effects of gravity upon microstructure formation. This communication reports on fragmentation phenomenon observed during those experiments. For 1g upward solidification, fragmentations mainly take place in the upper part of the mushy zone. After their detachments, dendrite fragments are carried away by buoyancy force in the bulk liquid where they are gradually remelted. For μg experiment and horizontal solidification, this type of fragmentation is not observed. However, a great number of fragmentations are surprisingly revealed by in situ observation in the deep part of the mushy zone, when the liquid fraction is very small. Moreover, as soon as they are detached, the dendrite fragments move toward the cold part of the mushy zone, even in the case of μg experiment. The observations suggest that sample shrinkage may be at the origin of this fragment motion.

• Periodical: Materials Science Forum (Volumes 790-791)
• Pages: 311-316
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.790-791.311
• Online since: May 2014
• Authors: Georges Salloum-Abou-Jaoude*, Henri Nguyen-Thi, Guillaume Reinhart, Ragnvald H. Mathiesen, Gerhard Zimmermann, Daniela Voss
• Keywords: Dendrites, Fluid Flow, Fragmentation, Microgravity, Solidification, X-Ray Radiography

References

[1] J.A. Spittle, Columnar to equiaxed grain transition in as solidified alloys, Int. Mater. Rev., 51 (2006) 247–269.

DOI: 10.1179/174328006x102493

[2] A.L. Greer, A.M. Bunn, A. Tronche, P.V. Evans, D.J. Bristow, Modelling of inoculation of metallic melts: application to grain refinement of aluminium by Al–Ti–B, Acta Mat., 48 (2000) 2823–2835.

DOI: 10.1016/s1359-6454(00)00094-x

[3] H. Nguyen-Thi, L. Salvo, R.H. Mathiesen, L. Arnberg, B. Billia, M. Suery, G. Reinhart, On the interest of synchrotron X-ray imaging for the study of solidification in metallic alloys, C. R. Phys., 13 (2012) 237–245.

DOI: 10.1016/j.crhy.2011.11.010

[4] H. Nguyen-Thi, G. Reinhart, G.S. Abou Jaoude, R.H. Mathiesen, G. Zimmermann, Y. Houltz, D. Voss, A. Verga, D.J. Browne, A. Murphy, XRMON-GF: A novel facility for solidification of metallic alloys with in situ and time-resolved X-ray radiographic characterization in microgravity conditions, J. Cryst. Growth, (2013).

DOI: 10.1016/j.jcrysgro.2013.03.032

[5] H. Jung, N. Mangelinck-Noel, H. Nguyen-Thi, N. Bergeon, B. Billia, A. Buffet, G. Reinhart, T. Schenk, J. Baruchel, Fragmentation in an Al–7 wt-% Si alloy studied in real time by X-ray synchrotron techniques, Int. J. Cast. Metals Res., 1 (2009).

DOI: 10.1179/136404609x367731

[6] D. Ruvalcaba, R.H. Mathiesen, D.G. Eskin, L. Arnberg, L. Katgerman, In situ observations of dendritic fragmentation due to local solute-enrichment during directional solidification of an aluminum alloy, Acta Mat., 55 (2007) 4287–4292.

DOI: 10.1016/j.actamat.2007.03.030

[7] S. Ganesan, D.R. Poirier, Densities of aluminum-rich, Metall. Trans. A, 18 (1987) 721–723.

DOI: 10.1007/bf02649490

[8] S. Vernède, P. Jarry, M. Rappaz, A granular model of equiaxed mushy zones: Formation of a coherent solid and localization of feeding, Acta Materialia, 54 (2006) 4023–4034.

DOI: 10.1016/j.actamat.2006.04.035

[9] M. Sistaninia, A.B. Phillion, J. -M. Drezet, M. Rappaz, Three-dimensional granular model of semi-solid metallic alloys undergoing solidification: Fluid flow and localization of feeding, Acta Materialia, 60 (2012) 3902–3911.

DOI: 10.1016/j.actamat.2012.03.036
