Effect of Cold Rolling and Heat Treatment on Microstructure and Mechanical Properties of Pt-0.7Ti Microalloy

Abstract:

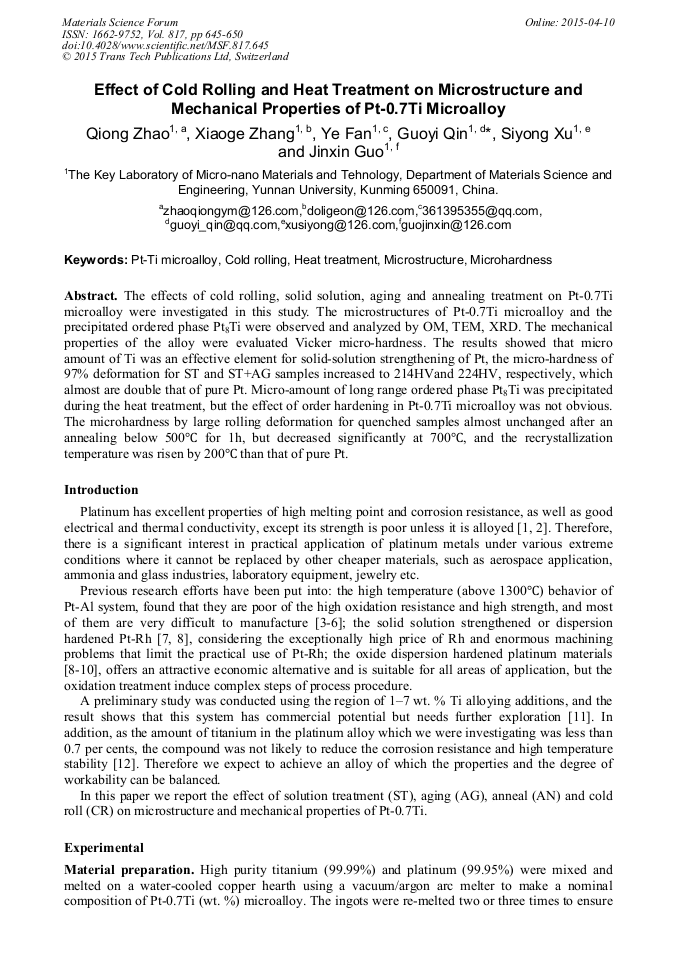

The effects of cold rolling, solid solution, aging and annealing treatment on Pt-0.7Ti microalloy were investigated in this study. The microstructures of Pt-0.7Ti microalloy and the precipitated ordered phase Pt₈Ti were observed and analyzed by OM, TEM, XRD. The mechanical properties of the alloy were evaluated Vicker micro-hardness. The results showed that micro amount of Ti was an effective element for solid-solution strengthening of Pt, the micro-hardness of 97% deformation for ST and ST+AG samples increased to 214HVand 224HV, respectively, which almost are double that of pure Pt. Micro-amount of long range ordered phase Pt₈Ti was precipitated during the heat treatment, but the effect of order hardening in Pt-0.7Ti microalloy was not obvious. The microhardness by large rolling deformation for quenched samples almost unchanged after an annealing below 500°C for 1h, but decreased significantly at 700°C, and the recrystallization temperature was risen by 200°C than that of pure Pt.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 645-650
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.645
• Online since: April 2015
• Authors: Qiong Zhao, Xiao Ge Zhang, Ye Fan, Guo Yi Qin*, Si Yong Xu, Jin Xin Gu
• Keywords: Cold Rolling, Heat Treatment, Microhardness, Microstructure, Pt-Ti Microalloy

References

[1] M. Cavero. The Structural and Mechanical Properties of the Pt-Ti and Ir-Ti Systems, D. University of KwaZulu-Natal Pietermaritzburg, (2011).

[2] L.A. Cornish, L.H. Chown. Platinum-Based Alloys and Coatings: Materials for the Future? Advances in Gas Turbine Technology, edited by Dr. Ernesto Benini InTech Publising, Europe, (2011)337-371.

[3] Z.M. Rdzawski, J.P. Stobrawa. Microstructure and properties of the new Pt-Rh based alloys for high-temperature applications, Materials Processing Technology. 153–154(2004) 681-687.

DOI: 10.1016/j.jmatprotec.2004.04.130

[4] L.A. Cornish, R. Süss, A. Douglas, L.H. Chown, L. Glaner. The Platinum Development Initiative: Platinum-Based Alloys for High Temperature and Special Applications: Part Ⅰ , Platinum Metals Rev. 53(2009) 2-10.

DOI: 10.1595/147106709x393299

[5] L.A. Cornish, R. Süss, L.H. Chown, S. Taylor, L. Glaner, Platinum-based alloys for high temperature and special applications, A. Douglas S.N. Prins: International Platinum Conference Platinum Adding Value, (2004) 329-336.

DOI: 10.1595/147106709x393299

[6] A. Douglas, P.J. Hill, T. Murakumo, L.A. Cornish, R. Süss, The Platinum Development Initative: Platinum-Based Alloys for High Temperature and Special Applications: Part Ⅱ, Platinum Metals Rev. 53, (2009) 69-77.

DOI: 10.1595/147106709x434040

[7] D.F. Lupton, J. Merker, B. Fischer, R. Völkl. Ductile High-Strength Platinum Materials for Glass Making, 6th International Conference Advances in Fusion & Processing of Glass. 29th-31th May(2000) 1-11.

[8] R.B. McGrath, G.C. Badcock. New Dispersion Strengthened Platinum Alloy, Platinum Metals Rev. 31(1987) 8-11.

[9] H. Manhardt, D.F. Lupton, W. Kock, Gold-free platinum material dispersion by small finely dispersed particles of base metal oxide, U.S. Pantent. 6, 663, 728 B2, (2003).

[10] Q.X. Zhang, D.M. Zhang, S.C. Jia, W.L. Shong. Microstructure and Properties of Some Dispersion Strengthened Platinum Alloys, Platinum Metals Rev. 39(1995) 167-171.

[11] T. Biggs, S.S. Taylor, E. v. d. Lingen. The Hardening of Platinum Alloys for Potential Jewellery Application, Platinum Metals Rev. 49(2005) 2-15.

DOI: 10.1595/147106705x24409

[12] Y.N. Loginov, A.V. Yermakov, L.G. Grohovskaya, G.I. Studenok. Annealing Characteristics and Strain Resistanced of 99. 93 wt. ％Platinum, Platinum Metals Rev. 51 (2007) 178-184.

DOI: 10.1595/147106707x237708

[13] Q.X. Zhang, D.M. Zhang, S.C. Jia. An invstigation on the strengthened Platinum Alloy added minimal Zr and Y, Wuhan University of Technology 10 (1995) 6-11.

[14] P. Pietrokowsky. Novel Ordered Phase, Pt8Ti, Nature. 4981(1965) 291.

DOI: 10.1038/206291a0

[15] M. Carelse, C.I. Lang. Order hardening in platinum 14 at. ％ copper, Scripta. Materialia. 54(2006) 1311-1315.

DOI: 10.1016/j.scriptamat.2005.12.016

[16] M.P. Nzula, C.I. Lang, D.J.H. Cockayne. The formation of Pt8Cr in Pt 10 at. ％Cr, Alloys and Compd. 420(2006) 165-170.

DOI: 10.1016/j.jallcom.2005.10.044

[17] S. Nxumalo, M.P. Nzula, C.I. Lang. Order hardening of Pt8X alloys, Mat. Sci. Eng. A 445-446(2007) 336-340.

DOI: 10.1016/j.msea.2006.09.048

[18] P.J. Meschter, W.L. Worrell. An investigation of high-temperature thermodynamic properties in the Pt-Ti system, Metal. Trans. A. 7(1976) 229-232.

[19] S. Nxumalo, C.I. Lang. Thermodynamic stability of Pt8V, Alloys and Compd. 425 (2006) 181-184.

DOI: 10.1016/j.jallcom.2006.01.052

[20] E.R. Bradley, D.H. Polonis. The flow stress of partially ordered Ni8Ta alloy single crystals, Scr. Metall. 5(1971) 1093-1096.

DOI: 10.1016/0036-9748(71)90180-3
