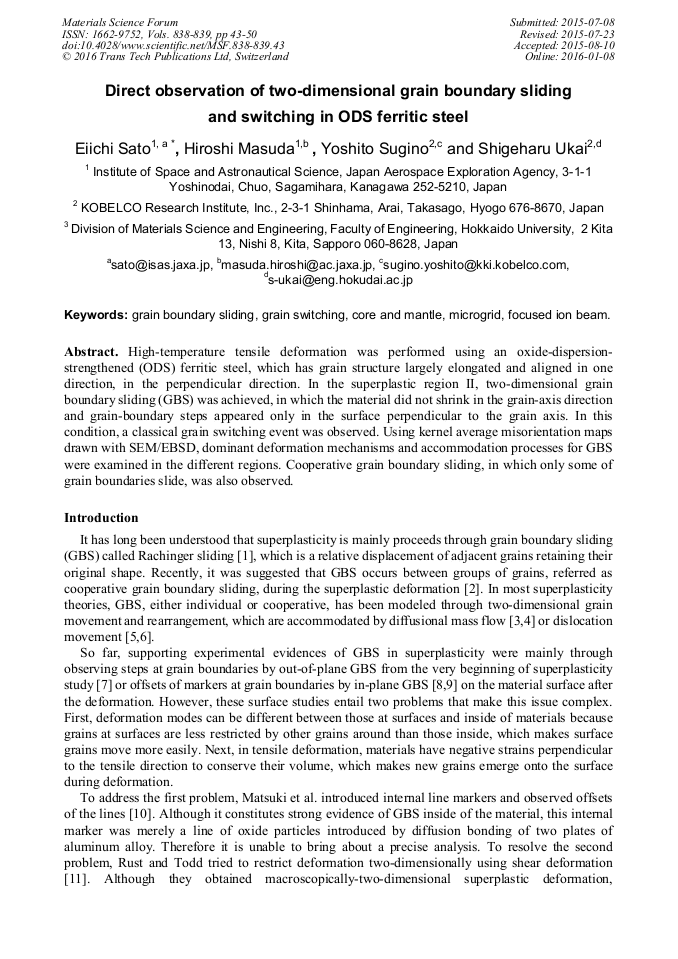

Direct Observation of Two-Dimensional Grain Boundary Sliding and Switching in ODS Ferritic Steel

Abstract:

High-temperature tensile deformation was performed using an oxide-dispersionstrengthened (ODS) ferritic steel,, which has grain structure largely elongated and aligned in one direction, in the perpendicular direction. In the superplastic region II, two-dimensional grain boundary sliding (GBS) was achieved, in which the material did not shrink in the grain-axis direction and grain-boundary steps appeared only in the surface perpendicular to the grain axis. In this condition, a classical grain switching event was observed. Using kernel average misorientation maps drawn with SEM/EBSD, dominant deformation mechanisms and accommodation processes for GBS were examined in the different regions. Cooperative grain boundary sliding, in which only some of grain boundaries slide, was also observed.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 43-50
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.43
• Online since: January 2016
• Authors: Eiichi Sato*, Hiroshi Masuda, Yoshito Sugino, Shigeharu Ukai
• Keywords: Core, Focused Ion Beam, Grain Boundary Sliding, Grain Switching, Mantle, Microgrid

References

[1] W.A. Rachinger, Relative Grain Translations in the Plastic flow of Aluminium, Inst. Met. 81 (1952) 33.

[2] W.R. Cannon and W.D. Nix, Models for grain rearrangement resulting from grain boundary sliding, Philos. Mag. 27 (1973) 9.

DOI: 10.1080/14786437308228910

[3] M.F. Ashby and R.A. Verrall, Diffusion accommodated flow and superplasticity, Acta Metall. 21 (1973) 149–163.

DOI: 10.1016/0001-6160(73)90057-6

[4] J.R. Spingarn and W.D. Nix, Diffusional creep and diffusionally accommodated grain rearrangement, Acta Metall. 26 (1978) 1389–2398.

DOI: 10.1016/0001-6160(78)90154-2

[5] A. Ball and M.M. Hutchinson, Superplasticity in the aluminum-zinc eutectoid, Metal Sci. 3J (1969) 1–7.

[6] R.C. Gifkins, Grain-boundary sliding and its accommodation during creep and super plasticity, Metall. Trans. 7A (1976) 1225–1232.

DOI: 10.1007/bf02656607

[7] C.E. Pearson, The viscous properties of extruded eutectic alloys of lead-tin and bismuth-tin, J. Ins. Metals, 54 (1934) 111–124.

[8] D.G. Attwood and P. M. Hazzledine, A fiducial grid for high-resolution metallography, Metallography, 9 (1976) 483.

DOI: 10.1016/0026-0800(76)90016-1

[9] K. Sotoudeh and P.S. Bate, Diffusion creep and superplasticity in aluminium alloys, Acta Mater. 58 (2010) 1909–(1920).

DOI: 10.1016/j.actamat.2009.11.034

[10] K. Matsuki, H. Morita, M. Yamada and Y. Murakami.

[11] M.A. Rust and R.I. Todd, Surface studies of region II superplasticity of AA5083 in shear, Acta Mater. 59 (2011) 5159–5170.

DOI: 10.1016/j.actamat.2011.04.051

[12] S. Ukai, M. Harada, H. Okada, M. Inoue, S. Nomura, S. Shikakura, K. Asabe, T. Nishida and M. Fujiwara, Alloying design of oxide dispersion strengthened ferritic steel for long life FBRs core materials, J. Nucl. Mater. 204 (1993) 65–73.

DOI: 10.1016/0022-3115(93)90200-i

[13] S. Taniguchi, N. Kawai and E. Sato, Two-dimensional observation of grain movements in elongated and aligned grain structure during high temperature deformation, Mater. Sci. Forum, 735 (2013) 79–83.

DOI: 10.4028/www.scientific.net/msf.735.79

[14] H. Masuda, S. Taniguchi, E. Sato, Y. Sugino and S. Ukai, Two-dimensional observation of grain boundary sliding of ODS ferritic steel in high temperature tension, Mater. Trans. 55 (2014) 1599 –1605.

DOI: 10.2320/matertrans.m2014115

[15] H. Masuda, H. Tobe, E. Sato, Y. Sugino and S. Ukai, Mantle region accommodating two- dimensional grain boundary sliding in ODS ferritic steel, Phil. Mag. Lett. DOI: 10. 1080/09500839. 2015. 1067732.

DOI: 10.1080/09500839.2015.1067732
