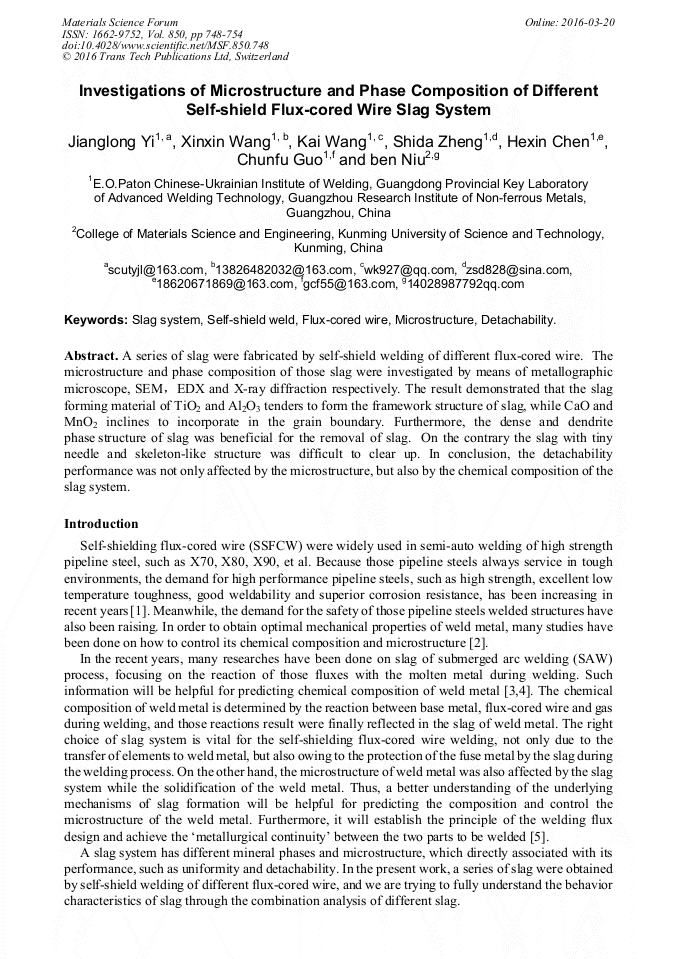

Investigations of Microstructure and Phase Composition of Different Self-Shield Flux-Cored Wire Slag System

Abstract:

A series of slag were fabricated by self-shield welding of different flux-cored wire. The microstructure and phase composition of those slag were investigated by means of metallographic microscope, SEM,EDX and X-ray diffraction respectively. The result demonstrated that the slag forming material of TiO₂ and Al₂O₃ tenders to form the framework structure of slag, while CaO and MnO₂ inclines to incorporate in the grain boundary. Furthermore, the dense and dendrite phase structure of slag was beneficial for the removal of slag. On the contrary the slag with tiny needle and skeleton-like structure was difficult to clear up. In conclusion, the detachability performance was not only affected by the microstructure, but also by the chemical composition of the slag system.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 748-754
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.748
• Online since: March 2016
• Authors: Jiang Long Yi, Xin Xin Wang, Kai Wang, Shi Da Zheng, He Xin Chen, Chun Fu Guo, Ben Niu
• Keywords: Detachability, Flux-Cored Wire, Microstructure, Self-Shield Weld, Slag System

References

[1] H.H. Cho, SH. Kang, S.H. Kim, et al. Microstructural evolution in friction stir welding of high-strength linepipe steel. Materials and Design (2012), 34, 258.

DOI: 10.1016/j.matdes.2011.08.010

[2] P. Kanjilal, T.K. Pal, S.K. Majumdar. Combined effect of flux and welding parameters on chemical composition and mechanical properties of submerged arc weld metal. Journal of Materials Processing Technology (2006), 171(2), 223-231.

DOI: 10.1016/j.jmatprotec.2005.06.083

[3] J.E. Ramirez. Characterization of High-Strength Steel Weld Metals: Chemical Composition, Microstructure, and Nonmetallic Inclusions. Welding Journal (2008), 87(3), 65S-75S.

[4] M. Matsushita, S. Liu. Hydrogen Control in Steel Weld Metal by Means of Fluoride Additions in Welding Flux. Welding Journal (2000), 79(10), 295S-303S.

[5] H. Granjon. Fundamentals of welding metallurgy. Woodhead Publishing Ltd; English ed. (1991).

[6] Q.S. Meng, B. Wan, Influence of microstructural appearances of slag on detachability of electrode. Han Jie Xue Bao (1993), 14(3), 202-206.

[7] L. Binder, W. Jantscher, F. Hofer, G. Kothleitner, Production and characterisation of electrolytically doped manganese dioxide. Journal of Power Sources (1998), 70(1), 1-7.

DOI: 10.1016/s0378-7753(97)02564-0

[8] J.S. Luo, K. Li, X.B. Li, Y.J. Shu, Y.J. Tang, Phase evolution and alloying mechanism of titanium aluminide nanoparticles. Journal of Alloys and Compounds (2014), 615, 333-337.

DOI: 10.1016/j.jallcom.2014.06.102

[9] P.G. Tsyrulnikov, S.V. Tsybulya, G. N Kryukova., et al, Phase transformations in the thermoactivated MnOx–Al2O3 catalytic system, Journal of Molecular Catalysis A-Chemical (2002), 79 (1-2), 213-220.

DOI: 10.1016/s1381-1169(01)00327-2

[10] K.J.D. Mackenzie, M. Schmucker, M.E. Smith, et al, Evolution of crystalline aluminates from hybrid gel-derived precursors studied by XRD and multinuclear solid state MAS NMR IV: Calcium dialuminate, CaAl4O7 and calcium hexaluminate, CaAl12O19. Thermochimica Acta (2000).

DOI: 10.1002/chin.200107010

[11] S.K. Manik, S.K. Pradhan, M. Pal, Nanocrystalline CaTiO3 prepared by soft-chemical route. Physica E (2005), 25(4), 421-424.

DOI: 10.1016/j.physe.2004.07.005

[12] G.M. Mi, F. Saito, S. Suzuki, Y. Waseda, Formation of CaTiO3 by grinding from mixtures of CaO or Ca(OH)2 with anatase or rutile at room temperature. Powder Technology (1998), 97(2), 178-182.

DOI: 10.1016/s0032-5910(98)00012-6
