Microstructure and Mechanical Properties of Al-1.1Mg-0.6Si-0.4Cu Alloy Manufactured by Casting-Forging Integrated Technology

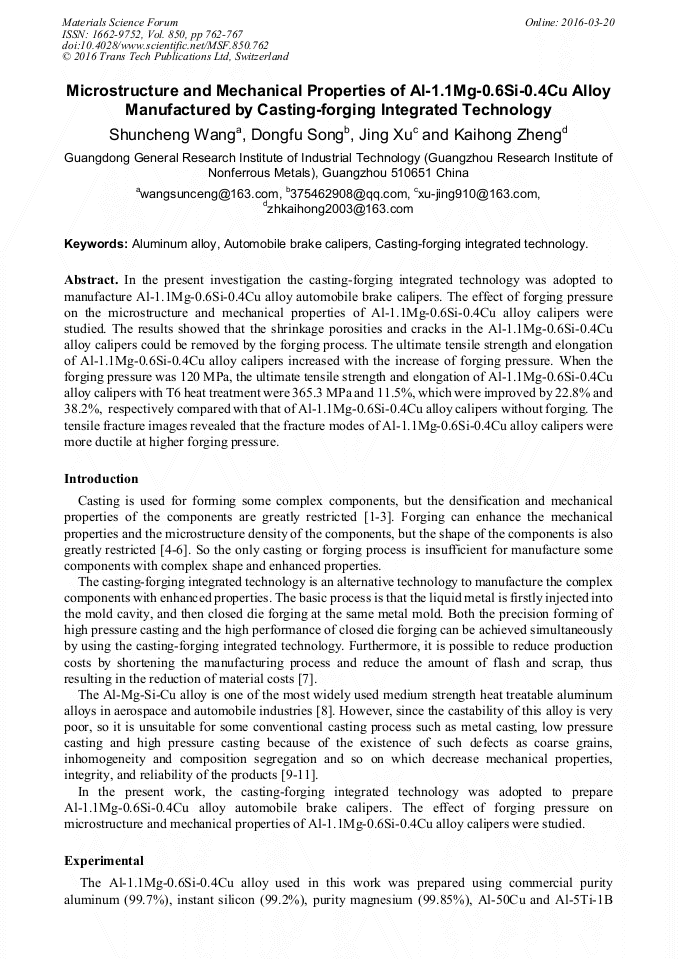

Abstract:

In the present investigation the casting-forging integrated technology was adopted to manufacture Al-1.1Mg-0.6Si-0.4Cu alloy automobile brake calipers. The effect of forging pressure on the microstructure and mechanical properties of Al-1.1Mg-0.6Si-0.4Cu alloy calipers were studied. The results showed that the shrinkage porosities and cracks in the Al-1.1Mg-0.6Si-0.4Cu alloy calipers could be removed by the forging process. The ultimate tensile strength and elongation of Al-1.1Mg-0.6Si-0.4Cu alloy calipers increased with the increase of forging pressure. When the forging pressure was 120 MPa, the ultimate tensile strength and elongation of Al-1.1Mg-0.6Si-0.4Cu alloy calipers with T6 heat treatment were 365.3 MPa and 11.5%, which were improved by 22.8% and 38.2%, respectively compared with that of Al-1.1Mg-0.6Si-0.4Cu alloy calipers without forging. The tensile fracture images revealed that the fracture modes of Al-1.1Mg-0.6Si-0.4Cu alloy calipers were more ductile at higher forging pressure.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 762-767
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.762
• Online since: March 2016
• Authors: Shun Cheng Wang, Dong Fu Song, Jing Xu, Kaihong Zheng
• Keywords: Aluminum Alloy, Automobile Brake Calipers, Casting-Forging Integrated Technology

References

[1] W. M. Jiang, Z.T. Fan, D.J. Liu, Correlation of microstructure with mechanical properties and fracture behavior of A356-T6 aluminum alloy fabricated by expendable pattern shell casting with vacuum and low-pressure, gravity casting and lost foam casting, Materials Science and Engineering A. 560(2013).

DOI: 10.1016/j.msea.2012.09.084

[2] D. Xiang, J. Chen, Blowhole defects in aluminum alloy die casting parts and new development of die casting technology, Light Metals. 11 (2012): 59-62.

[3] S. K. Tong, S.Z. Shang, X.Y. Sun, Properties of A356. 2 aluminum alloy wheel spokes, Special casting & Nonferrous Alloy. 32(2012): 1030-1033.

[4] L. F. Guo, Y. C. Zhu, H.X. Kong, Isothermal forging process of titanium alloy complex components, Rare Metals, 36(2012): 357-362.

[5] Q. X. Xia, K. Xiang, X.Z. Zhao, Research on forging method of marine long-shaft heaving forging, Forging & Stamping Technology. 38(2013): 12-16.

[6] Z. G. Li, W.Z. An, Z.J. Liu, Research on forming technology for 396 diesel engine connecting rod die forging, Forging & Stamping Technology. 38(2013): 17-20.

[7] S. C. Wang, K.H. Zheng, W.J. Qi, C. Cai, H.Y. Wang, Research on equipments and process of integrated forming technology of casting and forging, Special Casting & Nonferrous Alloys. 33(2013): 220-223.

[8] R. P. Nageswara, Effects of warm rolling and ageing after cryogenic rolling on mechanical properties and microstructure of Al 6061 alloy, Materials and Design. 39(2012): 226-233.

DOI: 10.1016/j.matdes.2012.02.010

[9] P. X. Qi, L. Qi, Generality of the defects of aluminum alloy casting by squeeze-casting, Special casting & Nonferrous Alloy. 29(2008): 721-725.

[10] P. X. Qi, Study on double squeeze casting technology, Special casting & Nonferrous Alloy. 28(2008): 769-772.

[11] R. Eis, Z. Xu, R.V. Tol, Modelling feeding flow related shrinkage defects in aluminum castings, Journal of Manufacturing Processes. 14(2012): 1-7.

DOI: 10.1016/j.jmapro.2011.05.003
