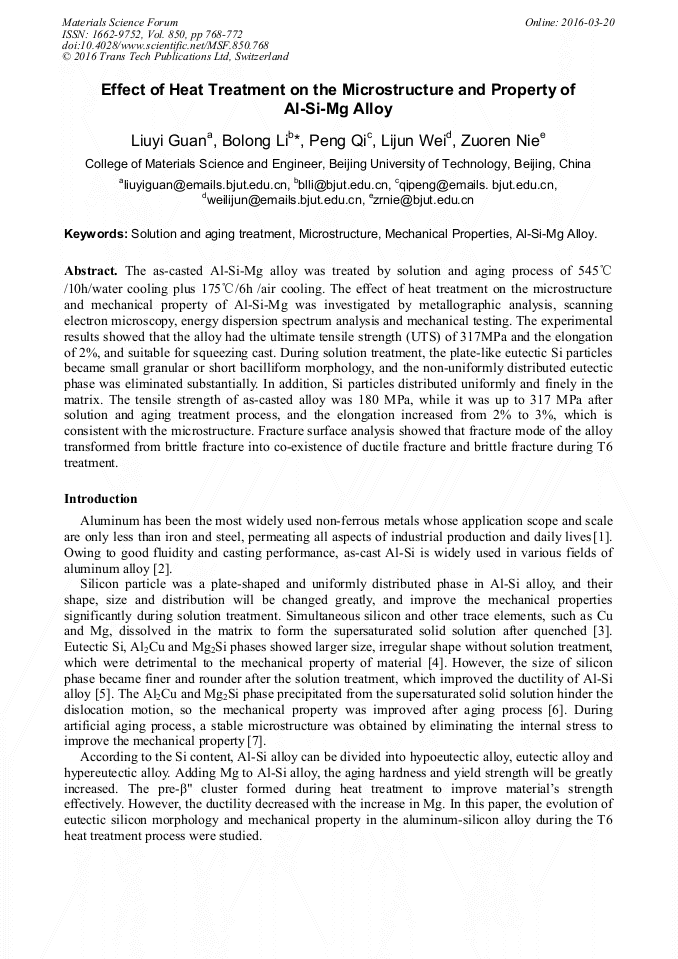

Effect of Heat Treatment on the Microstructure and Property of Al-Si-Mg Alloy

Abstract:

The as-casted Al-Si-Mg alloy was treated by solution and aging process of 545°C/10h/water cooling plus 175°C/6h /air cooling. The effect of heat treatment on the microstructure and mechanical property of Al-Si-Mg was investigated by metallographic analysis, scanning electron microscopy, energy dispersion spectrum analysis and mechanical testing. The experimental results showed that the alloy had the ultimate tensile strength (UTS) of 317MPa and the elongation of 2%, and suitable for squeezing cast. During solution treatment, the plate-like eutectic Si particles became small granular or short bacilliform morphology, and the non-uniformly distributed eutectic phase was eliminated substantially. In addition, Si particles distributed uniformly and finely in the matrix. The tensile strength of as-casted alloy was 180 MPa, while it was up to 317 MPa after solution and aging treatment process, and the elongation increased from 2% to 3%, which is consistent with the microstructure. Fracture surface analysis showed that fracture mode of the alloy transformed from brittle fracture into co-existence of ductile fracture and brittle fracture during T6 treatment.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 768-772
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.768
• Online since: March 2016
• Authors: Liu Yi Guan, Bo Long Li, Peng Qi, Li Jun Wei, Zuo-Ren Nie
• Keywords: Aging Treatment, Al-Si-Mg Alloy, Mechanical Properties, Microstructure, Solution Treatment

References

[1] Jingan Liu, Shuisheng Xie, Application and technology development of aluminum alloy, BeiJing: Metallurgical Industry Press, (2004).

[2] Tao Peng, The development and prospect of internal combustion engine piston material, Shanxi science and technology. 3(2007): 91-103.

[3] Shivkumar S, Ricci S, Apelian D, et al., Effect of solution treatment parameters on tensile of cast aluminum alloys, Journal of Heat Treating. 8(1990): 63-70.

DOI: 10.1007/bf02833067

[4] Ju Sun, The microstructure of hypereutectic Al-Si alloy during squeeze casting, Shenyang, The technology of Shenyang University, (2014).

[5] Bingyi Liu, Yajun Xue. The change of eutectic silicon morphology during solution treatment in Al-Si alloy, Light non-ferrous alloys. 26( 2006): 802-804.

[6] Guiqing Wang, Xiufang Bing, Weimin Wang, etc, Influence of Cu and minor elements on solution treatment of Al-Si-Cu-Mg cast alloys, Mater. Lett. 57(2003): 4083-4087.

DOI: 10.1016/s0167-577x(03)00270-2

[7] L. Garcia-Celis, R. Colas, Aging in heat treatable cast aluminum alloy, Heat Treatment. 5(1999): 372-375.

[8] Rongde Li, Haipeng Yu, Quantitative metallographic analysis for morphology change of eutectic silicon in Al-Si-Cu-Mg hypoeutectic casting alloy during the solution heat treatment, Foundry. 6(1996): 12-15.

[9] Jianfei Bai, Research on Microstructure an property of slow shot aluminum alloy die casting, Guanzhou, South China university of technology, (2010).
