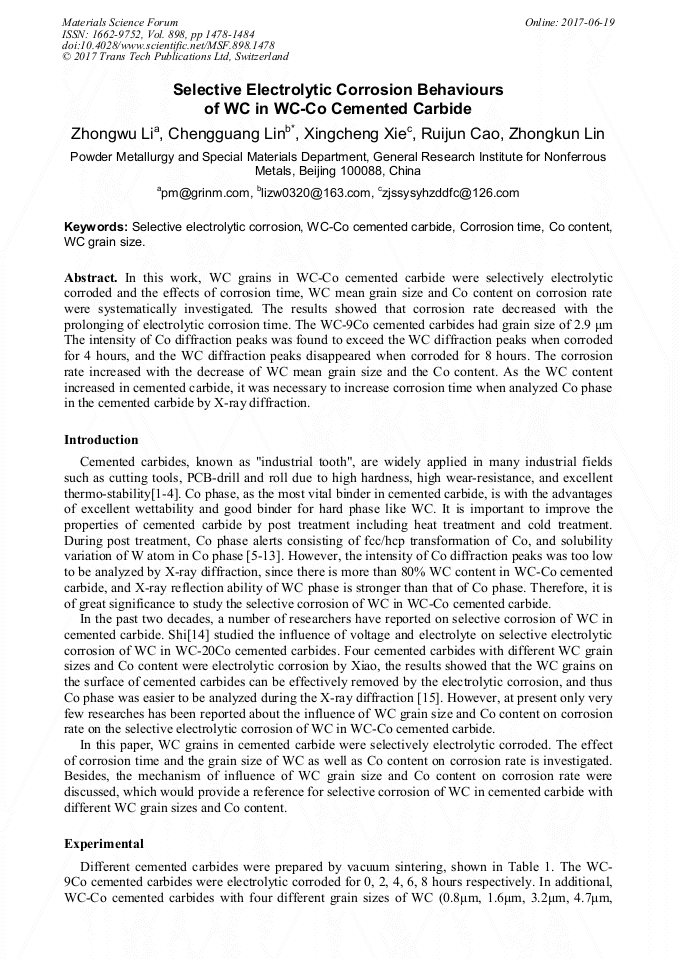

Selective Electrolytic Corrosion Behaviours of WC in WC-Co Cemented Carbide

Abstract:

In this work, WC grains in WC-Co cemented carbide were selectively electrolytic corroded and the effects of corrosion time, WC mean grain size and Co content on corrosion rate were systematically investigated. The results showed that corrosion rate decreased with the prolonging of electrolytic corrosion time. The WC-9Co cemented carbides had grain size of 2.9 μm The intensity of Co diffraction peaks was found to exceed the WC diffraction peaks when corroded for 4 hours, and the WC diffraction peaks disappeared when corroded for 8 hours. The corrosion rate increased with the decrease of WC mean grain size and the Co content. As the WC content increased in cemented carbide, it was necessary to increase corrosion time when analyzed Co phase in the cemented carbide by X-ray diffraction.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1478-1484
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1478
• Online since: June 2017
• Authors: Zhong Wu Li, Cheng Guang Lin*, Xing Cheng Xie, Rui Jun Cao, Zhong Kun Lin
• Keywords: Co Content, Corrosion Time, Selective Electrolytic Corrosion, WC Grain Size, WC-Co Cemented Carbide

References

[1] L. Yan, C.G. Lin, R.J. Cao, Research status and prospect of nanometer cobalt powder for ultrafine WC-Co hard Alloys, Rare Metals. 35 (2011) 451-457.

[2] Z.G. Fang, J.W. Eason, Study of nanostructured WC–Co composites, Int. J. Refract. Met. Hard Mater. 13 (1995) 297–303.

[3] K. Brookes, Some tribulation on the way to a nano future for hard metals, Met. Powder. Rep. 60 (2005) 24–30.

[4] S.X. Zhao, X.Y. Song, J.X. Zhang, X.M. Liu, Effects of size matching of raw powder particles on properties of spark plasma sintered ultrafine WC–Co cemented carbides, Acta Metall. Sin. 43 (2007) 107–112.

[5] H.O. Andren, U. Rolander, P. Lindahl, Phase composition in cemented carbides and cermets, Int. J. Refract. Met. H. 12(1993) 107-113.

DOI: 10.1016/0263-4368(93)90059-o

[6] H.O. Andren, Microstructure development during sintering and heat-treatment of cemented carbide and cermets, Int. J. Refract. Met. H. 67 (2001) 209-213.

[7] J. Zhou, Structure and property of vacuum heat treatment of cemented carbide and its application, Mat. Sci. Eng. Power. Met. 03 (2000) 222-225.

[8] H. Jonsson, Studies of the binder phase in WC-Co cemented carbide heat-treated at 650 C, Power Metall. 15 (1972) 1-10.

DOI: 10.1179/pom.1972.15.29.001

[9] D. Thakur, B. Ramamoorthy, L. Vijayaraghavan, Influence of different post treatments on tungsten carbide–cobalt inserts, Mater. Lett. 62 (2008) 4403-4406.

DOI: 10.1016/j.matlet.2008.07.043

[10] S.S. Gill, R. Singh, H. Singh, Wear behaviour of cryogenically treated tungsten carbide inserts under dry and wet turning conditions, Int. J. Mach. Tool. Manu. 49 (2009) 256-260.

DOI: 10.1016/j.ijmachtools.2008.11.001

[11] Z.H. Chen, J. Yong, F. Lian, Influence of cryogenic treatment on microstructure and properties of WC-Co cemented carbides, T. Mater. Heat. Treat. 32 (2011) 26-30.

[12] H. Zhang, L. Chen, J. Sun, Influence of deep cryogenic treatment on microstructures and mechanical properties of an ultrafine-grained WC-12Co cemented carbide, Acta. Metall. Sin. 27 (2014) 894-900.

DOI: 10.1007/s40195-014-0134-3

[13] Y. Jiang, D. Chen, Effect of cryogenic treatment on WC–Co cemented carbide, Mat. Sci. Eng. A. 528 (2011) 1735-1739.

[14] H.Y. Shi, X-ray diffraction of low content of cobalt in cemented carbide-Electrolytic selective etching WC method, Physical Testing and Chemical Analysis(Part A: Physical Testing). 4 (1994) 35-36.

[15] M.D. Xiao, W. Xiao, J.L. Jiang, Cobalt phase structure of cemented carbide, Mat. Sci. Eng. Power. Met. 15 (2010) 611-614.

[16] J.S. Huang, X.Y. Wu, J.C. Li, X-ray diffraction method used in measuring the cobalt phase composition in cemented carbide, Cemented Carbide. 20 (2003) 109-112.

[17] D. Li, Principles of electrochemistry, Third ed., Beijing University of Aeronautics and Astronautics Press, Beijing, (2008).
