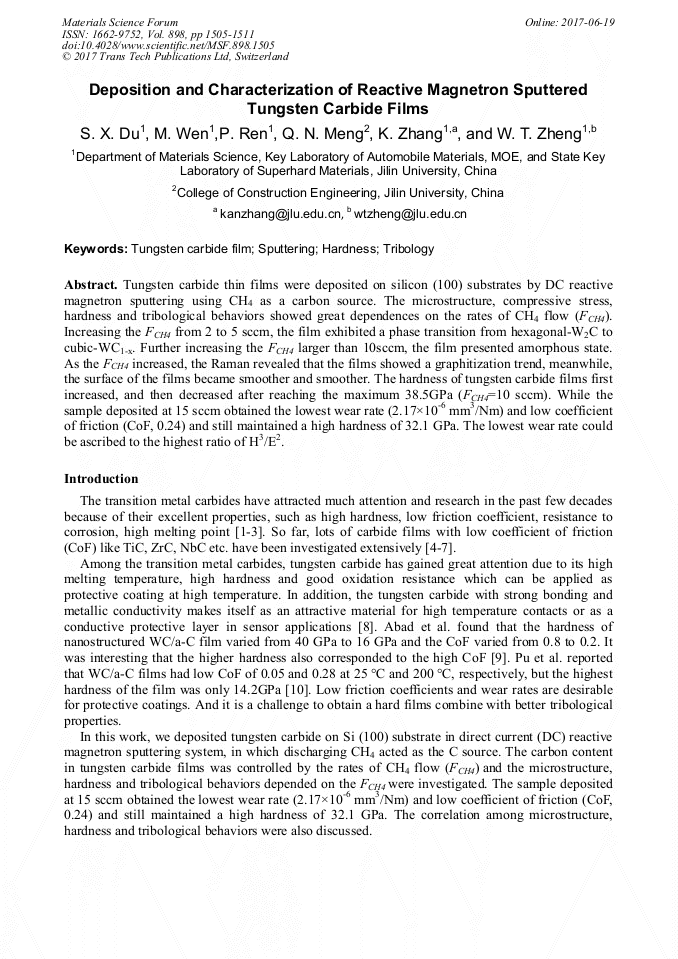

Deposition and Characterization of Reactive Magnetron Sputtered Tungsten Carbide Films

Abstract:

Tungsten carbide thin films were deposited on silicon (100) substrates by DC reactive magnetron sputtering using CH₄ as a carbon source. The microstructure, compressive stress, hardness and tribological behaviors showed great dependences on the rates of CH₄ flow (F_CH4). Increasing the F_CH4 from 2 to 5 sccm, the film exhibited a phase transition from hexagonal-W₂C to cubic-WC_1-x. Further increasing the F_CH4 larger than 10sccm, the film presented amorphous state. As the F_CH4 increased, the Raman revealed that the films showed a graphitization trend, meanwhile, the surface of the films became smoother and smoother. The hardness of tungsten carbide films first increased, and then decreased after reaching the maximum 38.5GPa (F_CH4=10 sccm). While the sample deposited at 15 sccm obtained the lowest wear rate (2.17×10^-6 mm³/Nm) and low coefficient of friction (CoF, 0.24) and still maintained a high hardness of 32.1 GPa. The lowest wear rate could be ascribed to the highest ratio of H³/E².

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1505-1511
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1505
• Online since: June 2017
• Authors: Su Xuan Du, Mao Wen, Ping Ren, Q.N. Meng, Kan Zhang*, Wei Tao Zheng
• Keywords: Hardness, Sputtering, Tribology, Tungsten Carbide Film

References

[1] K. Polychronopoulou, C. Rebholz, M.A. Baker, L. Theodorou, N.G. Demas, S.J. Hinder, A.A. Polycarpou, C.C. Doumanidis, K. Böbel, Diamond and Related Materials. 17 (2008) 2054-(2061).

DOI: 10.1016/j.diamond.2008.07.007

[2] E. Sani, L. Mercatelli, D. Fontani, J. -L. Sans, D. Sciti, Journal of Renewable and Sustainable Energy. 3 (2011) 063107.

[3] A.V. Bondarev, P.V. Kiryukhantsev-Korneev, D.A. Sidorenko, D.V. Shtansky, Materials & Design. 93 (2016) 63-72.

DOI: 10.1016/j.matdes.2015.12.131

[4] U. Wiklund, M. Larsson, Wear. 241 (2000) 234-238.

[5] Y. Pei, D. Galvan, J. Dehosson, Acta Materialia. 53 (2005) 4505-4521.

[6] Q.N. Meng, M. Wen, F. Mao, N. Nedfors, U. Jansson, W.T. Zheng, Surface and Coatings Technology. 232 (2013) 876-883.

DOI: 10.1016/j.surfcoat.2013.06.116

[7] K. Zhang, M. Wen, G. Cheng, X. Li, Q.N. Meng, J.S. Lian, W.T. Zheng, Vacuum. 99 (2014) 233-241.

[8] K. Abdelouahdi, C. Sant, C. Legrand-Buscema, P. Aubert, J. Perrière, G. Renou, P. Houdy, Surface and Coatings Technology. 200 (2006) 6469-6473.

DOI: 10.1016/j.surfcoat.2005.11.015

[9] M.D. Abad, M.A. Muñoz-Márquez, S. El Mrabet, A. Justo, J.C. Sánchez-López, Surface and Coatings Technology. 204 (2010) 3490-3500.

DOI: 10.1016/j.surfcoat.2010.04.019

[10] J. Pu, D. He, L. Wang, Applied Surface Science. 357 (2015) 2039-(2047).

[11] A.A. Voevodin, J.S. Zabinski, Journal of Materials Science. 33 (1998) 319-327.

[12] A.C. Ferrari, J. Robertson, Physical Review B. 61 (2000) 14095-14107.

[13] J. Cui, L. Qiang, B. Zhang, X. Ling, T. Yang, J. Zhang, Applied Surface Science. 258 (2012) 5025-5030.

[14] V. Lughi, D.R. Clarke, Applied Physics Letters. 89 (2006) 241911.

[15] K. Zhang, M. Wen, S. Wang, R.P. Deng, D. Gall, W.T. Zheng, Surface and Coatings Technology. 258 (2014) 746-753.

[16] J. Musil, F. Kunc, H. Zeman, H. Poláková, Surface and Coatings Technology. 154 (2002) 304-313.

DOI: 10.1016/s0257-8972(01)01714-5

[17] S. Guruvenket, D. Li, J.E. Klemberg-Sapieha, L. Martinu, J. Szpunar, Surface and Coatings Technology. 203 (2009) 2905-2911.

DOI: 10.1016/j.surfcoat.2009.03.009
