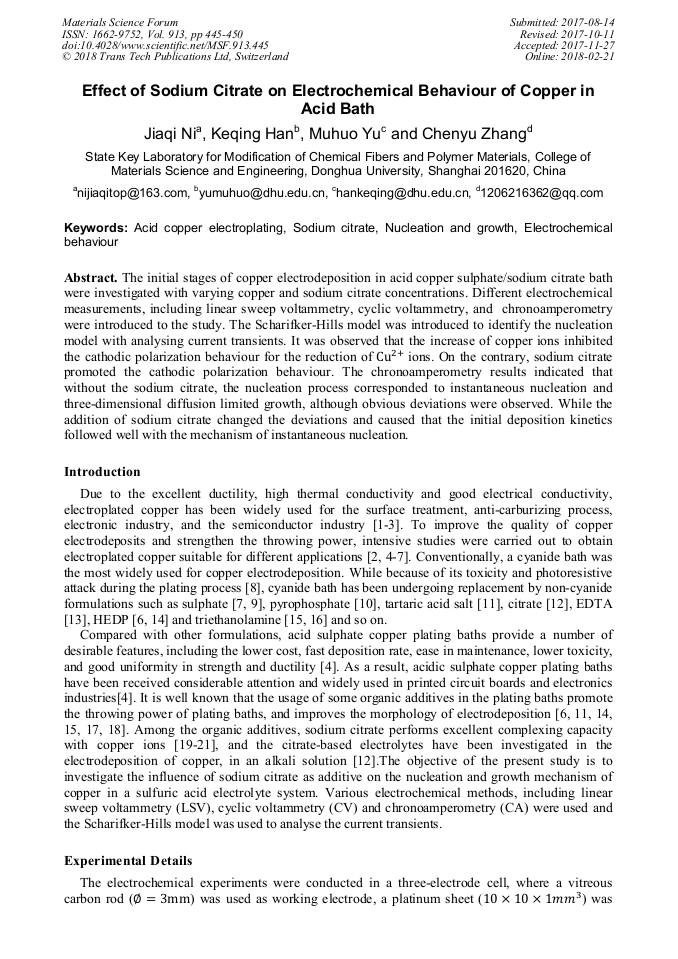

Effect of Sodium Citrate on Electrochemical Behaviour of Copper in Acid Bath

Abstract:

The initial stages of copper electrodeposition in acid copper sulphate/sodium citrate bath were investigated with varying copper and sodium citrate concentrations. Different electrochemical measurements, including linear sweep voltammetry, cyclic voltammetry, and chronoamperometry were introduced to the study. The Scharifker-Hills model was introduced to identify the nucleation model with analysing current transients. It was observed that the increase of copper ions inhibited the cathodic polarization behaviour for the reduction of ions. On the contrary, sodium citrate promoted the cathodic polarization behaviour. The chronoamperometry results indicated that without the sodium citrate, the nucleation process corresponded to instantaneous nucleation and three-dimensional diffusion limited growth, although obvious deviations were observed. While the addition of sodium citrate changed the deviations and caused that the initial deposition kinetics followed well with the mechanism of instantaneous nucleation.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 445-450
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.445
• Online since: February 2018
• Authors: Jia Qi Ni*, Ke Qing Han, Mu Huo Yu, Chen Yu Zhang
• Keywords: Acid Copper Electroplating, Electrochemical Behaviour, Growth, Nucleation, Sodium Citrate

References

[1] Klaer, J., Bruns, J., Henninger, R., Siemer, K., Klenk, R., Ellmer, K., and Bräunig, D. Efficient thin-film solar cells prepared by a sequential process. Semicond. Sci. Technol. 13 (1998) 1456.

DOI: 10.1088/0268-1242/13/12/022

[2] Andricacos, P.C., Uzoh, C., Dukovic, J.O., Horkans, J., and Deligianni, H. Damascene Copper electroplating for chip interconnections. Ibm Journal of Research & Development 42(1998)567-574.

DOI: 10.1147/rd.425.0567

[3] Reid, J. Copper Electrodeposition: Principles and Recent Progress. Jpn. J. Appl. Phys. 40 (2001) 2650-2657.

[4] Hu, C. -C., and Wu, C. -M. Effects of deposition modes on the microstructure of copper deposits from an acidic sulfate bath. Surf. Coat. Technol. 176 (2003) 75-83.

DOI: 10.1016/s0257-8972(03)00004-5

[5] Khelladi, M.R., Mentar, L., Azizi, A., Sahari, A., and Kahoul, A. Materials Chemistry & Physics 115 (2009) 385-390.

DOI: 10.1016/j.matchemphys.2008.12.017

[6] Li, M.G., Wei, G.Y., Li, M., Wang, J.F., Chen, L., and Zhao, X.X. Effect of HEDP on copper electroplating from non-cyanide alkaline baths. Surf. Eng. 30 (2014) 728-734.

DOI: 10.1179/1743294414y.0000000256

[7] Rehim, S.S.A.E., Sayyah, S.M., and Deeb, M.M.E. Electroplating of copper films on steel substrates from acidic gluconate baths. Appl. Surf. Sci. 165 (2000) 249-254.

DOI: 10.1016/s0169-4332(00)00015-5

[8] De Almeida, M., Carlos, I., Barbosa, L., Carlos, R., Lima-Neto, B., and Pallone, E. Appl. Electrochem. 32 (2002) 763-773.

DOI: 10.1023/a:1020182120035

[9] Pletcher, D., Whyte, I., Walsh, F.C., and Millington, J.P. Reticulated vitreous carbon cathodes for metal ion removal from process streams part I: Mass transport studies. J. Appl. Electrochem. 21 (1991) 659-666.

DOI: 10.1007/bf01034042

[10] Senna, L., Diaz, S., and Sathler, L. Electrodeposition of copper-zinc alloys in pyrophosphate-based electrolytes. J. Appl. Electrochem. 33 (2003) 1155-1161.

DOI: 10.1023/b:jach.0000003756.11862.6e

[11] Ballesteros, J., Chainet, E., Ozil, P., Meas, Y., and Trejo, G. Electrodeposition of copper from non-cyanide alkaline solution containing tartrate. Int. J. Electrochem. Sci 6 (2011) 2632-2651.

[12] Chassaing, E., Vu Quang, K., and Wiart, R. Kinetics of copper electrodeposition in citrate electrolytes. J. Appl. Electrochem. 16 (1986) 591-604.

DOI: 10.1007/bf01006854

[13] Krishnan, R., Kanagasabapathy, M., Jayakrishnan, S., Sriveeraraghavan, S., ANATHARAM, R., and Natarajan, S. Plat. Surf. Finish. 82 (1995) 56-59.

[14] Gao, H. -l., Zeng, Z. -o., and Zhao, G. -p. Electrochemical behavior of copper deposit on iron electrode in HEDP bath. Electroplating & Finishing 28 1-3 (2009) 6.

[15] Zheng, J.W., Zhou, J., Zheng, B.A., Qiao, L., Jiang, L.Q., and Zhang, C. Acta Chim. Sinica 69 (2011) 2921-2928.

[16] Wang, X., Li, N., Yang, Z.F., and Wang, Z.L. Effects of Triethanolamine and K-4 Fe(CN)(6) upon Electroless Copper Plating. J. Electrochem. Soc. 157 (2010) D500-D502.

DOI: 10.1149/1.3462980

[17] Lantasov, Y., Palmans, R., and Maex, K. New plating bath for electroless copper deposition on sputtered barrier layers. Microelectron. Eng. 50, (2000) 441-447.

DOI: 10.1016/s0167-9317(99)00313-5

[18] Barrado, E., Rodriguez, J., Hernández, P., and Castrillejo, Y. Electroanal. Chem. 768 (2016) 89-101.

[19] Beltowska-Lehman, E., and Ozga, P. Effect of complex formation on the diffusion coefficient of CuII in citrate solution containing NiII and MoVI. Electrochim. Acta 43 (1998) 617-629.

DOI: 10.1016/s0013-4686(97)00100-x

[20] Mehrizi, S., Sohi, M.H., and Saremi, M. Effect of sodium citrate as complexing on electrochemical behavior and speciation diagrams of CoFeNiCu baths. Ionics. (2013) 1-8.

DOI: 10.1007/s11581-012-0815-8

[21] Silva, F.L., do Lago, D.C., D'Elia, E., and Senna, L. J. Appl. Electrochem. 40 (2010) 2013-(2022).

[22] Hills, G., Pour, A.K., and Scharifker, B. (1983) The formation and properties of single nuclei. Electrochim. Acta 28, 891-898.

DOI: 10.1016/0013-4686(83)85164-0

[23] Southampton Electrochemistry Group. (2001) Instrumental Methods in Electrochemistry. UK: Horwood Publishing.
