Revisiting Models for Spheroidal Graphite Growth

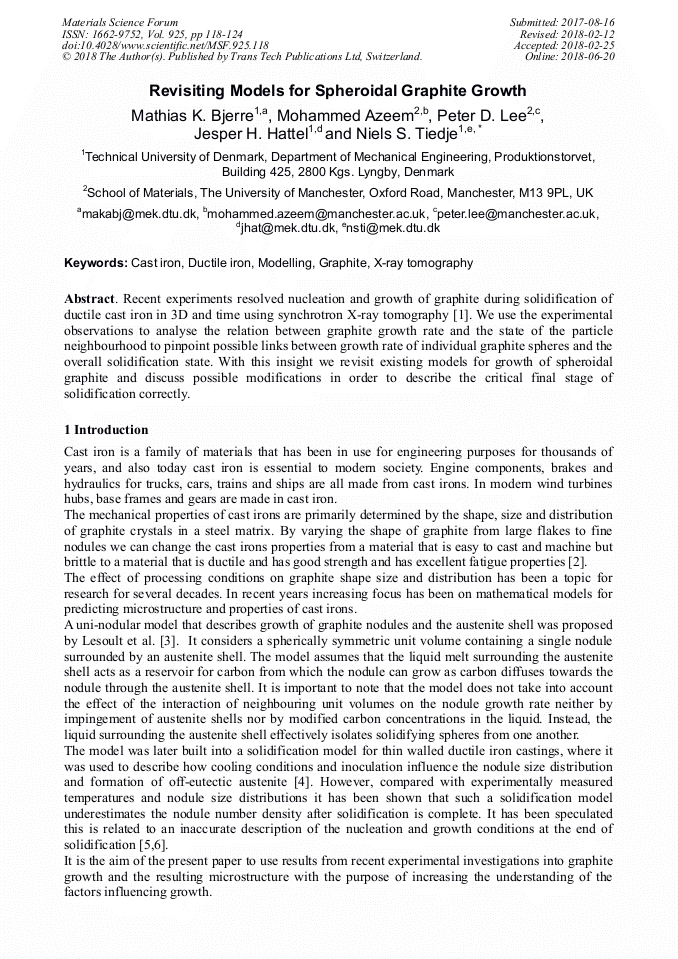

Article Preview

Abstract:

Recent experiments resolved nucleation and growth of graphite during solidification of ductile cast iron in 4D using synchrotron X-ray tomography. A numerical model for microstructure formation during solidification is compared with the experiments. Despite very good overall agreement between observations of spheroidal graphite growth and model results, significant deviations exist towards the end of solidification. We use the experimental observations to analyse the relation between graphite growth rate and the state of the particle neighbourhood to pinpoint possible links between growth rate of individual graphite spheres and the overall solidification state. With this insight we revisit existing models for growth of spheroidal graphite and discuss possible modifications in order to correctly describe the critical final stage of solidification.

By email View Pdf

You have full access to the following eBook

Science and Processing of Cast Iron XI

Info:

Periodical:

Materials Science Forum (Volume 925)

Pages:

118-124

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.925.118

Citation:

Cite this paper

Online since:

June 2018

Authors:

Mathias Karsten Bjerre, Mohammed Azeem, Peter D. Lee, Jesper Henri Hattel, Niels Skat Tiedje*

Keywords:

Cast Iron, Ductile Iron, Graphite, Modelling, X-Ray Tomography

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] M. Azeem, M. Bjerre, R. Atwood, N. Tiedje, P. Lee, Revealing graphite's multitude of growth modes in a metal-carbon alloy, Submitted. (2017).

[2] N.S. Tiedje, Solidification, processing and properties of ductile cast iron, Mater. Sci. Technol. 26 (2010) 505–514.

[3] G. Lesoult, M. Castro, J. Lacaze, Solidification of spheroidal graphite cast iron - I. Physcial modelling, Acta Metall. 46 (1998) 983–995.

DOI: 10.1016/s1359-6454(97)00281-4

[4] K.M. Pedersen, J.H. Hattel, N. Tiedje, Numerical modelling of thin-walled hypereutectic ductile cast iron parts, Acta Mater. 54 (2006) 5103–5114.

DOI: 10.1016/j.actamat.2006.06.049

[5] K.M. Pedersen, N.S. Tiedje, Undercooling and nodule count in thin walled ductile iron castings, Int. J. Cast Met. Res. 20 (2007) 145–150.

DOI: 10.1179/136404607x239816

[6] M. Bjerre, N. Tiedje, J. Thorborg, J. Hattel, Modelling the solidification of ductile cast iron parts with varying wall thicknesses, IOP Conf. Ser. Mater. Sci. Eng. 84 (2015) 12038.

DOI: 10.1088/1757-899x/84/1/012038

[7] M.A. Azeem, P.D. Lee, A.B. Phillion, S. Karagadde, P. Rockett, R.C. Atwood, L. Courtois, K.M. Rahman, D. Dye, Revealing dendritic pattern formation in Ni, Fe and Co alloys using synchrotron tomography, Acta Mater. (2017).

DOI: 10.1016/j.actamat.2017.02.022

[8] S. Karagadde, P.D. Lee, B. Cai, J.L. Fife, M.A. Azeem, K.M. Kareh, C. Puncreobutr, D. Tsivoulas, T. Connolley, R.C. Atwood, Transgranular liquation cracking of grains in the semi-solid state., Nat. Commun. 6 (2015) 8300.

DOI: 10.1038/ncomms9300

[9] K.M. Kareh, P.D. Lee, R.C. Atwood, T. Connolley, C.M. Gourlay, Revealing the micromechanisms behind semi-solid metal deformation with time-resolved X-ray tomography, Nat. Commun. 5 (2014) 4464.

DOI: 10.1038/ncomms5464

[10] M. Bjerre, In situ observations of graphite formation during solidification of cast iron, Ph.D.-thesis, Technical University of Denmark, (2017).

[11] K.C. Su, I. Ohnaka, I. Yamauchi, T. Fukusako, Computer Simulation of Solidification of Nodular Cast Iron, in: H. Fredriksson, M. Hillert (Eds.), Proc Int Symp Met. Cast Iron, 3rd, Stockholm, 1985: p.181–190.

DOI: 10.1557/proc-34-181

[12] R.E. Boeri, The solidification of ductile cast iron, The University of British Columbia, (1989).

[13] M. Zhu, L. Zhang, H. Zhao, D.M. Stefanescu, Modeling of microstructural evolution during divorced eutectic solidification of spheroidal graphite irons, Acta Mater. 84 (2015) 413–425.

DOI: 10.1016/j.actamat.2014.10.057

[14] O.R. Myhr, Ø. Grong, Modelling of non-isothermal transformations in alloys containing a particle distribution, Acta Mater. 48 (2000) 1605–1615.

DOI: 10.1016/s1359-6454(99)00435-8

[15] J.D. Robson, P.B. Prangnell, Dispersoid precipitation and process modelling in zirconium containing commercial aluminum alloys, Acta Mater. 49 (2001) 599–613.

DOI: 10.1016/s1359-6454(00)00351-7

[16] J. Lacaze, M. Castro, G. Lesoult, Solidification of spheroidal graphite cast irons - II. Numerical simulation, Acta Mater. 46 (1998) 997–1010.

DOI: 10.1016/s1359-6454(97)00282-6
