Evaluation on Residual Stresses in Thick Titanium Welded Alloys

Abstract:

In this work, both Finite element simulated method and contour method experimental measurement are used to obtain residual stresses of different Titanium welded alloys, the results show that the maximum of the residual stress is mainly related to the internal restraint degree which formed inside of the thickness, the distribution of the residual stress depends primarily on the shape of weld shape. The heating stage plays a major role in relaxing the residual stress in this research. 95% of the residual stress is relieved in the temperature rising period, and about 75% of it is relieved in the temperature rising period when the temperature is above 500°C.

You might also be interested in these eBooks

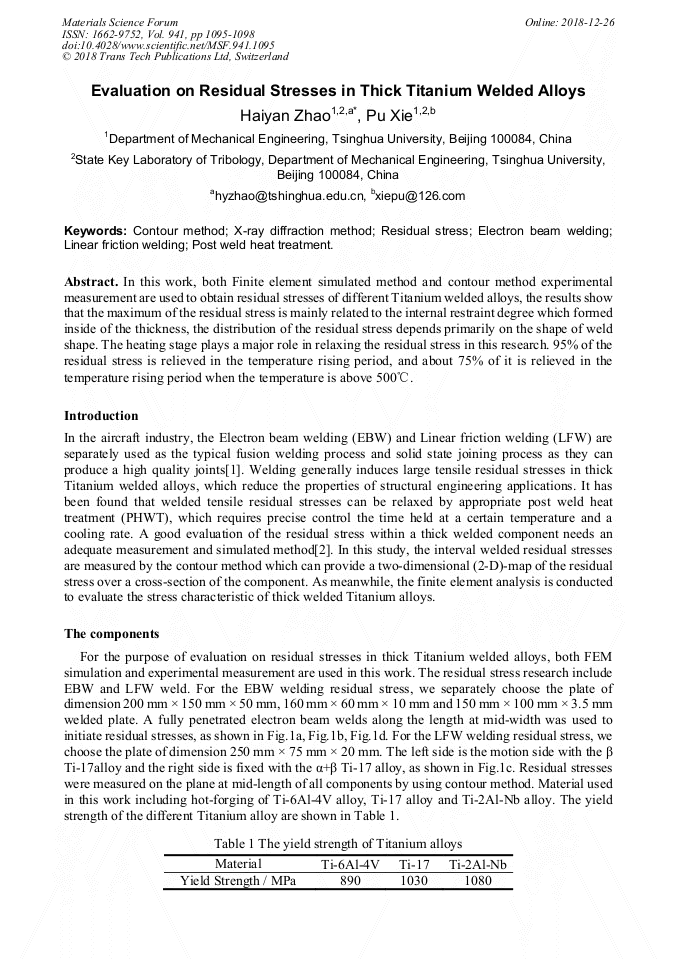

View Preview

Info:

Periodical:

Materials Science Forum (Volume 941)

Pages:

1095-1098

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.941.1095

Citation:

Cite this paper

Online since:

December 2018

Authors:

Hai Yan Zhao*, Pu Xie

Keywords:

Contour Method, Electron Beam Welding, Linear Friction Welding, Post Weld Heat Treatment, Residual Stress, X-Ray Diffraction Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Boyer R. An overview on the use of titanium in the aerospace industry[J].. Materials Science and Engineering: A, 1996, 213(1): 103-114.

Google Scholar

[2] Prime M B. Cross-Sectional Mapping of Residual Stresses by Measuring the Surface Contour after a Cut [J]. Journal of Engineering Materials and Technology, 2001, 123: 162-168.

DOI: 10.1115/1.1345526

Google Scholar

[3] P. Xie, H. Zhao, B. Wu, S. Gong. Evaluation of Residual Stresses Relaxation by Post Weld Heat Treatment Using Contour Method and X-ray Diffraction Method[J]. Experimental Mechanics, 2015, 55:1329-1337.

DOI: 10.1007/s11340-015-0040-2

Google Scholar

[4] P. Xie, H. Zhao, B. Wu, S. Gong. Using Finite Element and Contour Method to Evaluate Residual Stress in Thick Ti-6Al-4V Alloy Welded by Electron Beam Welding[J]. Acta Metallurgica Sinica (English Letters), 2015, 28(7): 922–930.

DOI: 10.1007/s40195-015-0276-y

Google Scholar

[5] P. Xie, H. Zhao, Y. Liu. Measuring Residual Stresses in Linear Friction Welded Joints Composed by Dissimilar Titanium[J]. Science and Technology of Welding and Joining, 2016, 21(5): 351-357.

DOI: 10.1080/13621718.2015.1115158

Google Scholar
