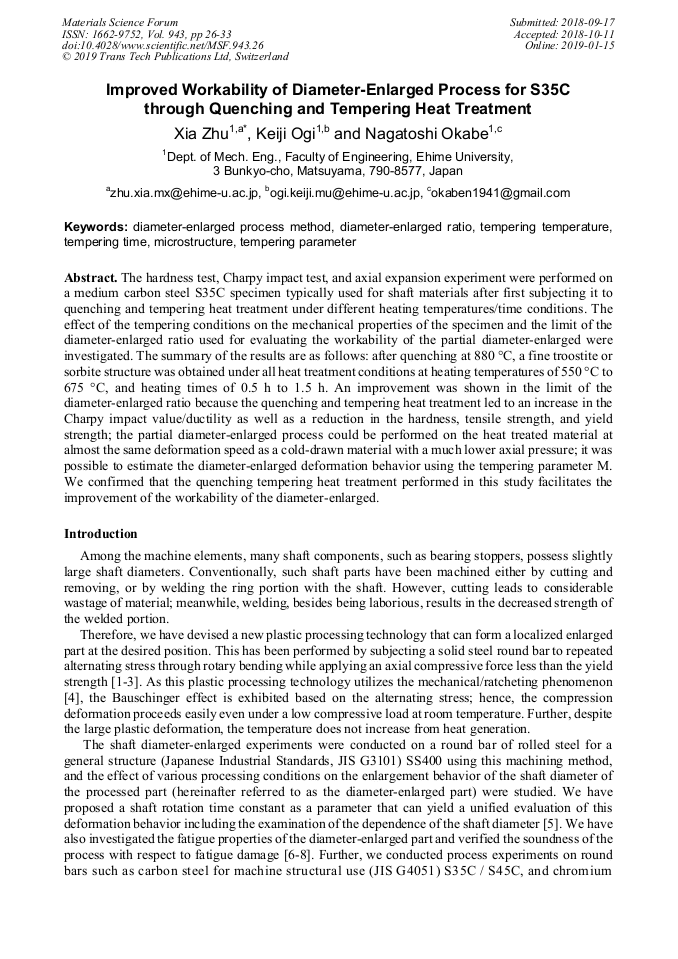

Improved Workability of Diameter-Enlarged Process for S35C through Quenching and Tempering Heat Treatment

Abstract:

The hardness test, Charpy impact test, and axial expansion experiment were performed on a medium carbon steel S35C specimen typically used for shaft materials after first subjecting it to quenching and tempering heat treatment under different heating temperatures/time conditions. The effect of the tempering conditions on the mechanical properties of the specimen and the limit of the diameter-enlarged ratio used for evaluating the workability of the partial diameter-enlarged were investigated. The summary of the results are as follows: after quenching at 880 °C, a fine troostite or sorbite structure was obtained under all heat treatment conditions at heating temperatures of 550 °C to 675 °C, and heating times of 0.5 h to 1.5 h. An improvement was shown in the limit of the diameter-enlarged ratio because the quenching and tempering heat treatment led to an increase in the Charpy impact value/ductility as well as a reduction in the hardness, tensile strength, and yield strength; the partial diameter-enlarged process could be performed on the heat treated material at almost the same deformation speed as a cold-drawn material with a much lower axial pressure; it was possible to estimate the diameter-enlarged deformation behavior using the tempering parameter M. We confirmed that the quenching tempering heat treatment performed in this study facilitates the improvement of the workability of the diameter-enlarged.

• Periodical: Materials Science Forum (Volume 943)
• Pages: 26-33
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.943.26
• Online since: January 2019
• Authors: Xia Zhu*, Keiji Ogi, Nagatoshi Okabe
• Keywords: Diameter-Enlarged Processing Method, Diameter-Enlarged Ratio, Microstructure, Tempering Parameter, Tempering Temperature, Tempering Time

References

[1] T. Iura, K. Mori, K. Yamamoto, Y. Aono, K. Kurita, O. Nakamura, T. Sano, Local Collar Developed by Metal Plastic Deformation, Proc. 6th ICTP, (1999)613-618.

[2] N. Okabe, T. Iura, X. Zhu, M. Tsutsumi, K. Mori, A Cold Working for Local Collar-forming with Superplasticity-like Deformation Using a New Conceptual Technology, Proc. 4th PRICM, (2001) 2105-2108.

[3] N. Okabe, X. Zhu, T. Iura, K. Mori, Model Analysis for a Clod Working of Collar-forming in a Metal Bar with Local Superplastic Deformation by a New Conceptual Technology, Proc. 7th ICTP, (2002) 871-976.

[4] F. Yoshida, N. Tajima, K. Ikegami, E. Shiratori, Machine Theory (Part 1), Plastic Dynamical Study of Mechanical Ratchet Phenomenon: Analysis Using Anisotropic Plastic Potential and Experiment with Brass Material, Transactions of the JSME, Part 1, 43-371 (1977) 2500-2510.

DOI: 10.1299/kikai1938.43.2500

[5] T. Iura, N. Okabe, X. Zhu, Development of Novel Plastic Working Process for Producing a Collar on a Round Shaft, J. of JSTP, 44-514 (2003) 45-49.

[6] T. Iura, N. Okabe, X. Zhu, Fatigue Properties and Fatigue Damage in a Round Shaft with a Collar Formed by a Novel Processing Method for Enlarging Diameter, J. of JSTP, 45-516 (2004)33-37.

[7] X. Zhu, , N. Okabe, K. Ogi, M. Takahashi, Fatigue Strength of Shaft with Diameter Enlarged Partially by Cyclic Bending and Axial Compressive Loading, Appl. Mech. Mater., Vols. 217-219 (2012) 2346-2350.

DOI: 10.4028/www.scientific.net/amm.217-219.2346

[8] X. Zhu, H. Takahashi, K. Ogi, M. Takahashi, N. Okabe, Investigation of Crack Generation in a Notch during Diameter-Enlargement Working Method Processing, Key Eng. Mater., Vol. 656-657 (2015)473-478.

DOI: 10.4028/www.scientific.net/kem.656-657.473

[9] T. Iura, N. Okabe, X. Zhu, Generation of Bending Moment and Twist Torque and Temperature Increase during the Working Process for the Production of a Collar in a Round Bar Plasticity and Processing, J. of JSTP, 45-520(2004)35-39.

[10] T. Iura, N. Okabe, X. Zhu, Influence of Strength Properties on Diameter Increase for Processed Material during the Process of Enlarging a Partial Diameter, J. of JSTP, 46-531(2005)55-59.

[11] The Japan Society for Heat Treatment: Introduction: Structure and Properties of Metallic Materials, Taiga Publishing, Tokyo, 2004, p.81.
