Effect of Ultrasonic Impact Treatment on the Residual Stress Distribution of Electron Beam Welded TA15/BTi-6431S Dissimilar Titanium Alloys

Abstract:

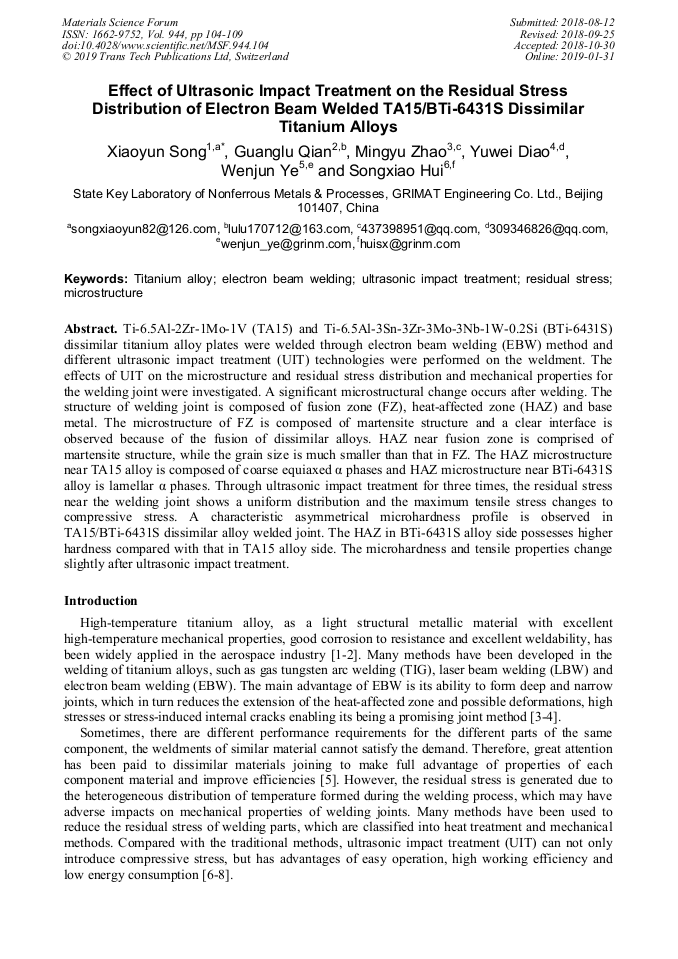

Ti-6.5Al-2Zr-1Mo-1V (TA15) and Ti-6.5Al-3Sn-3Zr-3Mo-3Nb-1W-0.2Si (BTi-6431S) dissimilar titanium alloy plates were welded through electron beam welding (EBW) method and different ultrasonic impact treatment (UIT) technologies were performed on the weldment. The effects of UIT on the microstructure and residual stress distribution and mechanical properties for the welding joint were investigated. A significant microstructural change occurs after welding. The structure of welding joint is composed of fusion zone (FZ), heat-affected zone (HAZ) and base metal. The microstructure of FZ is composed of martensite structure and a clear interface is observed because of the fusion of dissimilar alloys. HAZ near fusion zone is comprised of martensite structure, while the grain size is much smaller than that in FZ. The HAZ microstructure near TA15 alloy is composed of coarse equiaxed α phases and HAZ microstructure near BTi-6431S alloy is lamellar α phases. Through ultrasonic impact treatment for three times, the residual stress near the welding joint shows a uniform distribution and the maximum tensile stress changes to compressive stress. A characteristic asymmetrical microhardness profile is observed in TA15/BTi-6431S dissimilar alloy welded joint. The HAZ in BTi-6431S alloy side possesses higher hardness compared with that in TA15 alloy side. The microhardness and tensile properties change slightly after ultrasonic impact treatment.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 104-109
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.104
• Online since: January 2019
• Authors: Xiao Yun Song*, Guang Lu Qian, Ming Yu Zhao, Yu Wei Diao, Wen Jun Ye, Song Xiao Hui
• Keywords: Electron Beam Welding, Microstructure, Residual Stress, Titanium Alloy, Ultrasonic Impact Treatment

References

[1] R.R. Boyer, An overview on the use of titanium in the aerospace industry, Mater. Sci. Eng. A. 213 (1996) 103-114.

[2] R.R. Boyer, Titanium for aerospace: rationale and applications, Advanced Performance Materials, 2 (1995) 349-368.

[3] D. Suresh, Meshram, T. Mohandas, A comparative evaluation of friction and electron beam welds of near-α titanium alloy, Materials and Design, 31 (2010) 2245-2252.

DOI: 10.1016/j.matdes.2009.10.012

[4] Y.L. Qi, J. Deng, Q. Hong, L.Y. Zeng, Electron beam welding, laser beam welding and gas tungsten arc welding of titanium sheet, Materials Science and Engineering A, (2000) 177-181.

DOI: 10.1016/s0921-5093(99)00662-0

[5] V.E. Yeganeh, P.J. Li, Effect of beam offset on microstructure and mechanical properties of dissimilar electron beam welded high temperature titanium alloys, Materials and Design, 124 (2017) 78-86.

DOI: 10.1016/j.matdes.2017.03.056

[6] M. Teng, X.Y. Song, W.J. Ye, S.X. Hui, R. Liu, Effects of Stress-relief annealing on the residual stress and the microstructure of TA15 welded joint, Materials Science Forum, 849 (2016) 281-286.

DOI: 10.4028/www.scientific.net/msf.849.281

[7] A. Abdullah., M. Malaki., A. Eskandari, Strength enhancement of the welded structures by ultrasonic peening, Materials and Design, (38) (2012) 7-18.

DOI: 10.1016/j.matdes.2012.01.040

[8] G.L. Qian, X.Y. Song, W.J. Ye, R. Chen, T. Ma, S.X. Hui, Effects of ultrasonic impact treatment on the residual stress and microstructure of TA15 welded joint, Materials Science Forum, 898 (2017) 1056-1062.

DOI: 10.4028/www.scientific.net/msf.898.1056

[9] L. Liu, X. Du, M. Zhu, Research on the microstructure and properties of weld repairs in TA15 titanium alloy, Materials Science and Engineering: A, 445-446 (2007) 691-696.

DOI: 10.1016/j.msea.2006.10.001

[10] W.J. Zhang, X.Y. Song, S.X. Hui, W.J. Ye, W.Q. Wang, Phase precipitation behavior and tensile property of a Ti-Al-Sn-Zr-Mo-Nb-W-Si titanium alloy, Rare Metals, (2015).

DOI: 10.1007/s12598-015-0666-3
