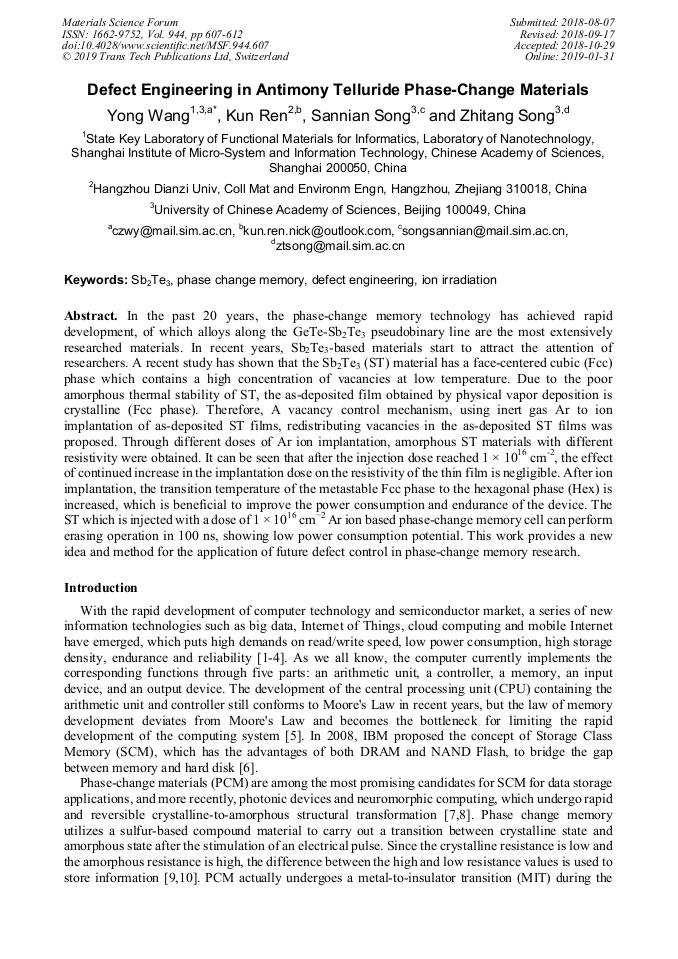

Defect Engineering in Antimony Telluride Phase-Change Materials

Abstract:

In the past 20 years, the phase-change memory technology has achieved rapid development, of which alloys along the GeTe-Sb₂Te₃ pseudobinary line are the most extensively researched materials. In recent years, Sb₂Te₃-based materials start to attract the attention of researchers. A recent study has shown that the Sb₂Te₃ (ST) material has a face-centered cubic (Fcc) phase which contains a high concentration of vacancies at low temperature. Due to the poor amorphous thermal stability of ST, the as-deposited film obtained by physical vapor deposition is crystalline (Fcc phase). Therefore, we proposed a vacancy control mechanism, using inert gas Ar to ion implantation of as-deposited ST films, redistributing vacancies in the as-deposited ST films. Through different doses of Ar ion implantation, we obtain amorphous ST materials with different resistivity. We find that after the injection dose reached 1 × 10¹⁶ cm^-2, the effect of continued increase in the implantation dose on the resistivity of the thin film is negligible. After ion implantation, the transition temperature of the metastable Fcc phase to the hexagonal phase (Hex) is increased, which is beneficial to improve the power consumption and endurance of the device. The ST which is injected with a dose of 1 × 10¹⁶ cm⁻² Ar ion based phase-change memory cell can perform erasing operation in 100 ns, showing low power consumption potential. Our work provides a new idea and method for the application of future defect control in phase-change memory research.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 607-612
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.607
• Online since: January 2019
• Authors: Yong Wang*, Kun Ren, San Nian Song, Zhi Tang Song
• Keywords: Defect Engineering, Ion Irradiation, Phase Change Memory, Sb₂Te₃

References

[1] S.W. Fong, C.M. Neumann, H.-S.P. Wong, Phase-Change Memory--Towards a Storage-Class Memory, IEEE T. Electron Dev. 99 (2017), 1-12.

[2] S. Raoux, W. Welnic, D. Ielmini, Phase change materials and their application to nonvolatile memories, Chem. Rev. 110 (2010), 240-267.

DOI: 10.1021/cr900040x

[3] G.W. Burr, et al. Phase change memory technology, J. Vac.Sci.Technol. B 28 (2010), 223-262.

[4] H.-S.P. Wong, et al. Phase change memory, Proc. IEEE 98 (2010), 2201-2227.

[5] G. E. Moore, Cramming more components onto integrated circuits, Proceedings of the IEEE 86 (198), 82-85.

DOI: 10.1109/jproc.1998.658762

[6] R.F. Freitas, and W.W. Wilcke, Storage-class memory: the next storage system technology, IBM Journal of Research and Development, 52 (2008), 439-447.

DOI: 10.1147/rd.524.0439

[7] G. Atwood, Phase-change materials for electronic memories, Science 321 (2008), 210-211.

[8] L. Desmond, et al. Guest-cage atomic interactions in a clathrate-based phase-change material, Adv. Mater. 26.11 (2014), 1725-30.

[9] S. Raoux, F. Xiong, M. Wuttig, E. Pop, Phase change materials and phase change memory, MRS Bull. 39 (2014), 703-710.

DOI: 10.1557/mrs.2014.139

[10] M.H. Lankhorst, B.W. Ketelaars, R.A. Wolters, Low-cost and nanoscale non-volatile memory concept for future silicon chips, Nat. Mater. 4 (2005), 347-352.

DOI: 10.1038/nmat1350

[11] W. Zhang, A. Thiess, P. Zalden, et al. Role of vacancies in metal-insulator transitions of crystalline phase-change materials, Nat. Mater., 11 (2012), 952-956.

DOI: 10.1038/nmat3456

[12] M. Wuttig, H. Bhaskaran, T. Taubner, Phase-change materials for non-volatile photonic applications, Nat. Photonics, 11 (2017), 465-476.

DOI: 10.1038/nphoton.2017.126

[13] M. Zhu, M. Xia, F. Rao, et al. One order of magnitude faster phase change at reduced power in Ti-Sb-Te, Nat. Commun. 5 (2014), 4086.

DOI: 10.1038/ncomms5086

[14] Rao F., Ding K., Zhou Y., et al. Reducing the stochasticity of crystal nucleation to enable subnanosecond memory writing, Science, 358 (2017), 1423-1427.

DOI: 10.1126/science.aao3212

[15] Y. Wang, Y. Zheng, G. Liu, et al. Scandium doped Ge2Sb2Te5 for high-speed and low-power-consumption phase change memory, Appl. Phys. Lett. 112 (2018), 133104.

DOI: 10.1063/1.5012872

[16] J. Jeong, N. Aetukuri, T. Graf, et al. Suppression of metal-insulator transition in VO2 by electric field-induced oxygen vacancy formation, Science, 339 (2013), 1402-1405.

DOI: 10.1126/science.1230512

[17] J. Cao, E. Ertekin, V. Srinivasan, et al. Strain engineering and one-dimensional organization of metal-insulator domains in single-crystal vanadium dioxide beams, Nat. Nanotechnol., 4 (2009): 732-7.

DOI: 10.1038/nnano.2009.266

[18] P. Nukala, C.C. Lin, R. Composto, et al. Ultralow-power switching via defect engineering in germanium telluride phase-change memory devices, Nat. Commun. 7 (2016), 10482.

DOI: 10.1038/ncomms10482

[19] S. Caravati, M. Bernasconi, M. Parrinello. First-principles study of liquid and amorphous Sb2Te3, Phys. Rev. B, 81 (2010), 1718-1720.

[20] Y. Zheng,M. Xia, Y. Cheng, et al. Direct observation of metastable face-centered cubic Sb2Te3 crystal. Nano Res. 9 (2016), 3453-3462.

DOI: 10.1007/s12274-016-1221-8
