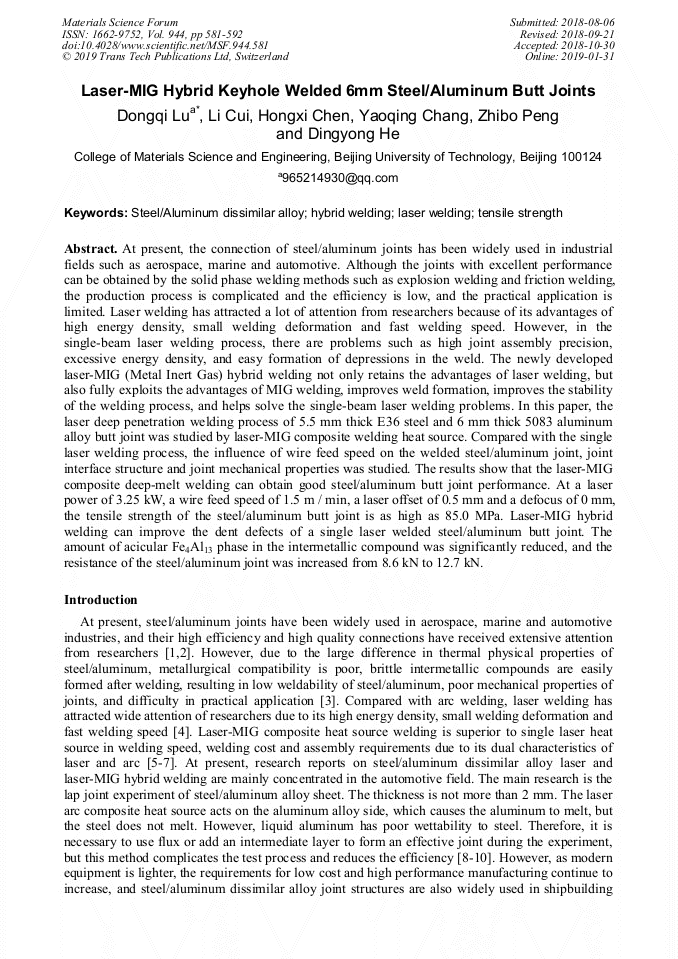

Laser-MIG Hybrid Keyhole Welded 6mm Steel/Aluminum Butt Joints

Abstract:

At present, the connection of steel/aluminum joints has been widely used in industrial fields such as aerospace, marine and automotive.Although the joints with excellent performance can be obtained by the solid phase welding methods such as explosion welding and friction welding, the production process is complicated and the efficiency is low, and the practical application is limited.Laser welding has attracted a lot of attention from researchers because of its advantages of high energy density, small welding deformation and fast welding speed.However, in the single-beam laser welding process, there are problems such as high joint assembly precision, excessive energy density, and easy formation of depressions in the weld.The newly developed laser-MIG (Metal Inert Gas) hybrid welding not only retains the advantages of laser welding, but also fully exploits the advantages of MIG welding, improves weld formation, improves the stability of the welding process, and helps solve the single-beam laser welding problems.In this paper, the laser deep penetration welding process of 5.5 mm thick E36 steel and 6 mm thick 5083 aluminum alloy butt joint was studied by laser-MIG composite welding heat source. Compared with the single laser welding process, the influence of wire feed speed on the welded steel/aluminum joint, joint interface structure and joint mechanical properties was studied.The results show that the laser-MIG composite deep-melt welding can obtain good steel/aluminum butt joint performance. At a laser power of 3.25 kW, a wire feed speed of 1.5 m / min, a laser offset of 0.5 mm and a defocus of 0 mm, the tensile strength of the steel/aluminum butt joint is as high as 85.0 MPa.Laser-MIG hybrid welding can improve the dent defects of a single laser welded steel/aluminum butt joint. The amount of acicular Fe₄Al₁₃ phase in the intermetallic compound was significantly reduced, and the resistance of the steel/aluminum joint was increased from 8.6 kN to 12.7 kN.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 581-592
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.581
• Online since: January 2019
• Authors: Dong Qi Lu*, Li Cui, Hong Xi Chen, Yao Qing Chang, Zhi Bo Peng, Ding Yong He
• Keywords: Hybrid Welding, Laser Welding, Steel/Aluminum Dissimilar Alloy, Tensile Strength

References

[1] G. Sierra, P. Peyre, F. Deschaux-Beaume, et al, Steel to Aluminium key-hole laser welding, Materials Science and Engineering: A, 447(1-2) (2007) 197-208.

DOI: 10.1016/j.msea.2006.10.106

[2] S.H. Chen, K. Ma, J.H. Huang, et al, Chinese Journal of Nonferrous Metals, 21(12) (2011) 3076-3081.

[3] D.W. Zhou, Y.L. Liu, N.N. Li, S.H. Xu, J.H. Liu, Effect of Sn-5%Zr powder addition on microstructure and mechanical property of Steel/Al laser welding, Chinese Journal of Lasers, 42(5) (2015) 0503004.

DOI: 10.3788/cjl201542.0503004

[4] T. Wang, Y.W. Zhou, Y. Peng, et al, Fiber laser welding of steel/aluminum dissimilar metal preset Si powder, Chinese Journal of Lasers, 39(3) (2012) 100-107.

[5] C.L. Li, D. Fan, B. Wang, Characteristics of TIG arc-assisted laser welding-brazing joint of aluminum to galvanized steel with preset filler powder, Rare Metals, 34(9) (2015) 650-656.

DOI: 10.1007/s12598-015-0539-9

[6] F. Vollertsen, C. Thomy, Laser-MIG hybrid welding of Aluminium to steel - A straightforward analytical model for wetting length, Weld World, 55 (2011) 58-66.

DOI: 10.1007/bf03263516

[7] C. Thomy, F. Vollertsen, Laser-MIG hybrid welding of Aluminium to steel-effect of process parameters on joint properties, Weld World, 56 (2012) 124-132.

DOI: 10.1007/bf03321356

[8] C.L. Li, D. Fan, X.Q. Yu, et al, Arc-assisted laser-coated powder filler welding method for aluminum/galvanized steel, China Laser, (7) (2016) 125-132.

[9] S.W. Mei, M. Gao, J. Yan, et al, Interface properties and thermodynamic analysis of laser–arc hybrid welded Al/steel joint, Sci Technol Weld Joi. 18(4) (2013) 293-300.

DOI: 10.1179/1362171813y.0000000106

[10] M. Gao, C. Chen, S.W. Mei, et al, The International Journal of Advanced Manufacturing Technology, 74(1-4) (2014) 199-208.

[11] Q.S. Mao, J.Y. Li, X.Y. Zhang, et al, Effect of welding thermal cycle on properties of Aluminum-Aluminum-steel composite transition joints, Ship Engineering, 32(3) (2010) 54-57.

[12] J. Huang, W. Qiu, J. Zhang, et al, Application research of Steel-Aluminum transition joints, Ship and Ocean Engineering, 32(4) (2016) 54-58.

[13] A.M. Mazar, J. Ma, W. Liu, et al, Hybrid laser/arc welding of advanced high strength steel to Aluminum alloy by using structural transition insert, Mater Design, 75 (2015) 120-135.

DOI: 10.1016/j.matdes.2015.03.022

[14] J. Liu, Numerical simulation of arc-assisted laser butt fusion welding of Aluminum steel with thick metal, Lanzhou University of Technology, (2016).
