The Influence of Temperature Storage on Threshold Voltage Stability for SiC VDMOSFET

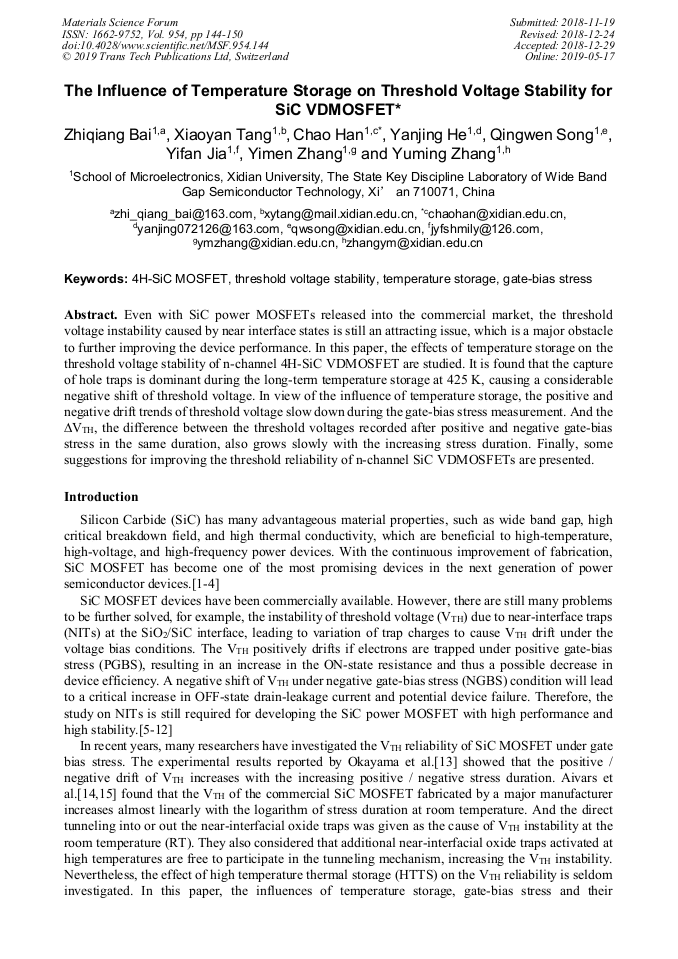

Abstract:

Even with SiC power MOSFETs released into the commercial market, the threshold voltage instability caused by near interface states is still an attracting issue, which is a major obstacle to further improving the device performance. In this paper, the effects of temperature storage on the threshold voltage stability of n-channel 4H-SiC VDMOSFET are studied. It is found that the capture of hole traps is dominant during the long-term temperature storage at 425 K, causing a considerable negative shift of threshold voltage. In view of the influence of temperature storage, the positive and negative drift trends of threshold voltage slow down during the gate-bias stress measurement. And the ∆V_TH, the difference between the threshold voltages recorded after positive and negative gate-bias stress in the same duration, also grows slowly with the increasing stress duration. Finally, some suggestions for improving the threshold reliability of n-channel SiC VDMOSFETs are presented.

• Periodical: Materials Science Forum (Volume 954)
• Pages: 144-150
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.954.144
• Online since: May 2019
• Authors: Zhi Qiang Bai, Xiao Yan Tang, Chao Han*, Yan Jing He, Qing Wen Song, Yi Fan Jia, Yi Men Zhang, Yu Ming Zhang
• Keywords: 4H-SiC MOSFET, Gate-Bias Stress, Temperature Storage, Threshold Voltage Stability

References

[1] R. Singh, Reliability and performance limitations in SiC power devices, Microelectron. Reliab. 46 (2006) 713-730.

DOI: 10.1016/j.microrel.2005.10.013

[2] K. Rottner, M. Frischholz, T. Myrtveit, et al., SiC power devices for high voltage applications, Mater. Sci. Eng. B 61-62 (1999) 330-338.

DOI: 10.1016/s0921-5107(98)00528-5

[3] S.H. Ryu, B.A. Hull, S. Dhar, et al., Performance, Reliability, and Robustness of 4H-SiC Power DMOSFETs, Mater. Sci. Forum 645–648 (2010) 969-947.

DOI: 10.4028/www.scientific.net/msf.645-648.969

[4] K. Matocha, P.A. Losee, A. Gowda, et al., Performance and Reliability of SiC MOSFETs for High-Current Power Modules, Mater. Sci. Forum 645-648 (2010) 1123-1126.

DOI: 10.4028/www.scientific.net/msf.645-648.1123

[5] L.C. Yu, G.T. Dunne, K.S. Matocha, et al., Reliability Issues of SiC MOSFETs: A Technology for High-Temperature Environments, IEEE Trans. Device Mater. Reliab. 10 (2010) 418-426.

DOI: 10.1109/tdmr.2010.2077295

[6] A. Lelis, R. Green, D. Habersat, Effect of Threshold-Voltage Instability on SiC Power MOSFET High-Temperature Reliability, Ecs Transactions 41 (2011) 203-214.

DOI: 10.1149/1.3631498

[7] H. Yano, Y. Oshiro, D. Okamoto, et al., Instability of 4H-SiC MOSFET Characteristics due to Interface Traps with Long Time Constants, Mater. Sci. Forum 679-680 (2011) 603-606.

DOI: 10.4028/www.scientific.net/msf.679-680.603

[8] J.T. Ryan, P.M. Lenahan, T.Grasser, et al., Observations of negative bias temperature instability defect generation via on the fly electron spin resonance, Appl. Phys. Lett. 96 (2010) 399-436.

DOI: 10.1063/1.3428783

[9] A. Lelis, D. Habersat, R. Green, et al., Time Dependence of Bias-Stress-Induced SiC MOSFET Threshold-Voltage Instability Measurements, IEEE Trans. Electron Devices 55 (2008) 1835-1840.

DOI: 10.1109/ted.2008.926672

[10] M.J. Tadjer, K.D. Hobart, E.A. Imhoff, et al., Temperature and Time Dependent Threshold Voltage Instability in 4H-SiC Power DMOSFET Devices, Mater. Sci. Forum 600-603 (2008) 1147-1150.

DOI: 10.4028/www.scientific.net/msf.600-603.1147

[11] A. Lelis, R. Green, D. Habersat, High-Temperature Reliability of SiC Power MOSFETs, Mater. Sci. Forum 679-680 (2011) 599-602.

DOI: 10.4028/www.scientific.net/msf.679-680.599

[12] D.K. Schroder, Negative bias temperature instability: What do we understand?, Microelectron. Reliab. 47 (2007) 841-852.

DOI: 10.1016/j.microrel.2006.10.006

[13] T. Okayama, S.D. Arthur, J.L. Garrett, et al., Bias-stress induced threshold voltage and drain current instability in 4H–SiC DMOSFETs, Solid-State Electron. 52 (2008) 164-170.

DOI: 10.1016/j.sse.2007.07.031

[14] A. Lelis, R. Green, D. Habersat, et al., Basic Mechanisms of Threshold-Voltage Instability and Implications for Reliability Testing of SiC MOSFETs, IEEE Trans. Electron Devices 62 (2015) 316-323.

DOI: 10.1109/ted.2014.2356172

[15] A. Lelis, D. Habersat, G. Lopez, et al., Bias Stress-Induced Threshold-Voltage Instability of SiC MOSFETs, Mater. Sci. Forum 527-529 (2006) 1317-1320.

DOI: 10.4028/www.scientific.net/msf.527-529.1317

[16] Y.J. He, H.L. Lv, X.Y. Tang, et al., Experimental study on the 4H-SiC-based VDMOSFETs with lightly doped P-well field-limiting rings termination, Solid-State Electron. 129 (2017) 175-181.

DOI: 10.1016/j.sse.2016.11.008

[17] S. Yang, Y. Zhang, Q. Song, et al., Impact of High-Temperature Storage Stressing (HTSS) on Degradation of High-Voltage 4H-SiC Junction Barrier Schottky Diodes, IEEE Trans. Power Electron. 33 (2017) 1874-1877.

DOI: 10.1109/tpel.2017.2737358

[18] A. Lelis, R. Green, M. El, et al., Effect of Stress and Measurement Conditions in Determining the Reliability of SiC Power MOSFETs, Ecs Transactions 50 (2013) 251-256.

DOI: 10.1149/05003.0251ecst
