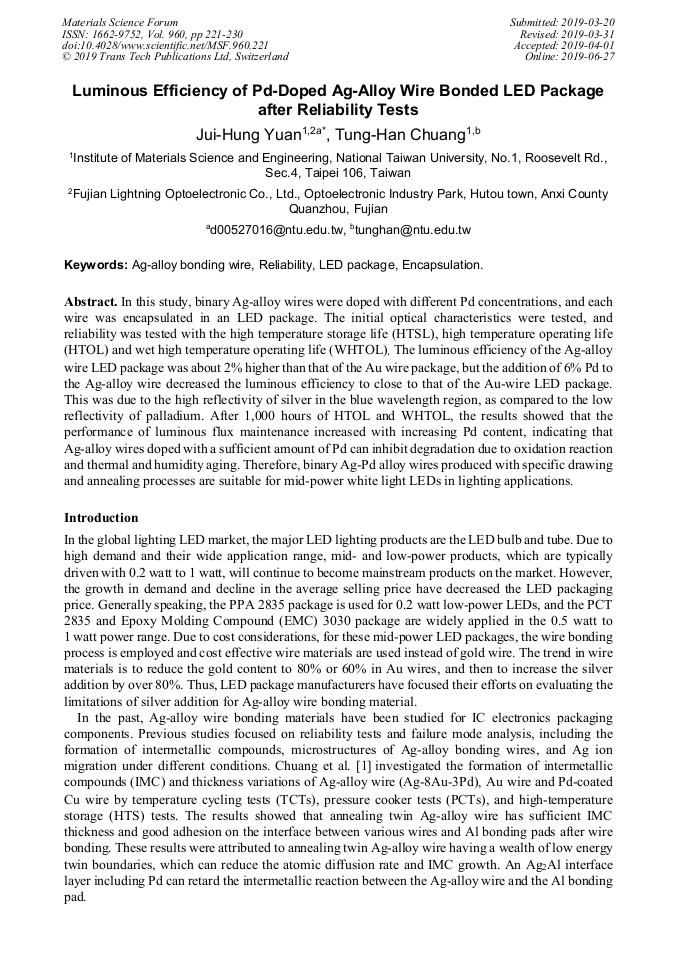

Luminous Efficiency of Pd-Doped Ag-Alloy Wire Bonded LED Package after Reliability Tests

Abstract:

In this study, binary Ag-alloy wires were doped with different Pd concentrations, and each wire was encapsulated in an LED package. The initial optical characteristics were tested, and reliability was tested with the high temperature storage life (HTSL), high temperature operating life (HTOL) and wet high temperature operating life (WHTOL). The luminous efficiency of the Ag-alloy wire LED package was about 2% higher than that of the Au wire package, but the addition of 6% Pd to the Ag-alloy wire decreased the luminous efficiency to close to that of the Au-wire LED package. This was due to the high reflectivity of silver in the blue wavelength region, as compared to the low reflectivity of palladium. After 1,000 hours of HTOL and WHTOL, the results showed that the performance of luminous flux maintenance increased with increasing Pd content, indicating that Ag-alloy wires doped with a sufficient amount of Pd can inhibit degradation due to oxidation reaction and thermal and humidity aging. Therefore, binary Ag-Pd alloy wires produced with specific drawing and annealing processes are suitable for mid-power white light LEDs in lighting applications.

• Periodical: Materials Science Forum (Volume 960)
• Pages: 221-230
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.960.221
• Online since: June 2019
• Authors: Jui Hung Yuan*, Tung Han Chuang
• Keywords: Ag-Alloy Bonding Wire, Encapsulation, LED Package, Reliability

References

[1] T.H. Chuang, et al., Formation and growth of intermetallics in an annealing-twinned Ag-8Au-3Pd wire bonding package during reliability tests, IEEE Transactions on Components, Packaging and Manufacture Technology 3 (2013) 3-9.

DOI: 10.1109/tcpmt.2012.2221090

[2] S.A. Gam, et al., Effects of Cu and Pd addition on Au bonding wire/Al pad interfacial reactions and bond reliability, Journal of Electronic Materials 35 (2006) 2048-2055.

DOI: 10.1007/s11664-006-0312-9

[3] I. Karakaya, W.T. Thompson, The Ag-Pd (silver-palladium) system, Bulletin of Alloy Phase Diagrams 9 (1988) 237-243.

DOI: 10.1007/bf02881271

[4] J.S. Cho, et al., Pd effects on the reliability in the low cost Ag bonding wire, Electronic Components and Technology Conference (2010) 1541-1546.

[5] J.D. Lee, T.H. Chung and H.H. Tsai, Electronic package alloy wire and methods for manufacturing the same, Taiwan Patent I396,756. (2013).

[6] H.H. Tsai, et al., High performance Ag-Pd alloy wires for high frequency IC packages, International Microsystems, Packaging, Assembly and Circuits Technology Conference (2013).

DOI: 10.1109/impact.2013.6706697

[7] C.D. Breach, Moisture induced corrosion in gold and copper ball bonds, IEEE/CPMT International Electronic Manufacturing Technology Symposium (2010).

DOI: 10.1109/iemt.2010.5746748

[8] I. Khalilullah, et al., In-Situ characterization of moisture absorption and hygroscopic swelling of silicone/phosphor composite film and epoxy mold compound in LED packaging, J. Microelectronics Reliability 84 (2018) 208-214.

DOI: 10.1016/j.microrel.2018.03.025

[9] J. Huang, et al., Degradation mechanisms of mid-power white-light LEDs under high-temperature–humidity conditions, IEEE Transactions on Device and Materials Reliability 15 (2015) 220-228.

DOI: 10.1109/tdmr.2015.2418345

[10] M. Bass, E.W. Van Stryland et al, Handbook of Optics vol. 2, second ed., McGraw-Hill, (1994).

[11] T.K. Mau, M. Tillack, et al., Integrated target reflectivity analysis, 2001. Information on https://slideplayer.com/slide/9263590/.

[12] M. Yazdan Mehr, W. D. van Driel, and G. Q. Zhang, Reliability and lifetime assessment of optical materials in LED-based products, in: Solid State Lighting Reliability Part 2, Springer, New York, 2018, pp.115-139.

DOI: 10.1007/978-3-319-58175-0_5

[13] H. Ardebili, J. Zhang, M. G. Pecht, Encapsulation Techniques for Electronic Applications, second ed., William Andrews, California, (2009).

[14] J. Huang, et al., Rapid degradation of mid-power white-light LEDs in saturated moisture conditions, IEEE Transactions on Device and Materials Reliability 15 (2015) 478-485.

DOI: 10.1109/tdmr.2015.2468587

[15] L. Zhang, et al., Failure analysis on reflector blackening between lead frame electrodes in LEDs under WHTOL test, Microelectronics Reliability 55 (2015) 799–806.

DOI: 10.1016/j.microrel.2015.01.004

[16] K.C. Chen, et al., Observation of atomic diffusion at twin-modified grain boundaries in copper, Science 321 (2008) 1066-1069.

DOI: 10.1126/science.1160777
