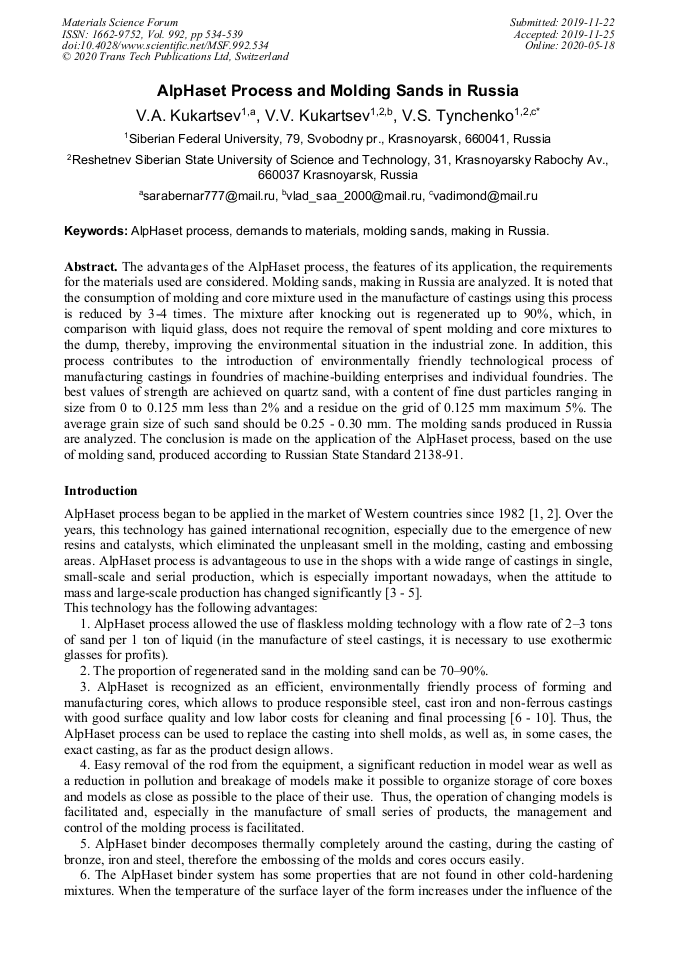

AlpHaset Process and Molding Sands in Russia

Abstract:

The advantages of the AlpHaset process, the features of its application, the requirements for the materials used are considered. Molding sands, making in Russia are analyzed. It is noted that the consumption of molding and core mixture used in the manufacture of castings using this process is reduced by 3-4 times. The mixture after knocking out is regenerated up to 90%, which, in comparison with liquid glass, does not require the removal of spent molding and core mixtures to the dump, thereby, improving the environmental situation in the industrial zone. In addition, this process contributes to the introduction of environmentally friendly technological process of manufacturing castings in foundries of machine-building enterprises and individual foundries. The best values of strength are achieved on quartz sand, with a content of fine dust particles ranging in size from 0 to 0.125 mm less than 2% and a residue on the grid of 0.125 mm maximum 5%. The average grain size of such sand should be 0.25 - 0.30 mm. The molding sands produced in Russia are analyzed. The conclusion is made on the application of the AlpHaset process, based on the use of molding sand, produced according to Russian State Standard 2138-91.

• Periodical: Materials Science Forum (Volume 992)
• Pages: 534-539
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.992.534
• Online since: May 2020
• Authors: Viktor Alekseevich Kukartsev, Vladislav Viktorovich Kukartsev, Vadim Sergeevich Tynchenko*
• Keywords: AlpHaset Process, Demands to Materials, Making in Russia, Molding Sands

References

[1] C.J. Nyberg, AlpHaset process and its use in Russia, Russian caster. 3 (2002) 26-32.

[2] H. Hobelsberger, H. Kroger, D. Nisi, Initial experience with an advanced environmentally friendly cold box system at Daimler-Benz, Giesserei. 84 (1997) 48-49.

[3] M. Holtzer, Trends in sand moulds and cores with organic binder, Archives of Foundry. 3(9) (2003) 189-196.

[4] J.W. Sutherland, K.L. Gunter, Enviromental Attributes of Manufacturing Processes, Graduate Research Fellow Department of Mechanical Engineering. 13 (2001) 293-316.

[5] J.R. Brown, Foseco Ferrous Foundryman's Handbook, Butterworth Heinemann, Oxford, (2000).

[6] M. Holtzer, A. Bobrowski, D. Drozynski, J. Makselon, B. Isendorf, Investigations of properties of moulding sands with resins applied in the AlpHaset technology, Archives of Foundry Engineering. 13 (2013) 211-223.

[7] I. Vaskova, M. Smolkovab, J. Malika, Experience in forming and core mixtures by Alphaset technology archives of foundry engineering, S. Eperjesic a Department of Ferrous Metallurgy and Foundra. 8 (2008) 141-144.

[8] A. Dioszegi, J. Svidro, T. Ferenczi, The effect of different binder levels on the heat absorption capacity of moulding mixtures made by the phenolic urethane cold-box process, Journal of Thermal Analysis and Calorimetry. 130 (2017) 1769–1777.

DOI: 10.1007/s10973-017-6611-y

[9] S.S. Gukovskii, Cold harden binding and mixes for wafer cores and forms, Mechanical engineering, Moscow, (2010).

[10] E.A. Chernyshev, А.А. Evlampiyev, A.V. Korolev, S.А. Kuznetcev, L.A. Ivanova, About modernization of steel departments with use of the modern technologies of shaping, Foundry production. 3 (2015) 36-38.

[11] L. Pilato, Phenolic resins: a century of progress, Springer, New York, (2010).

[12] J. Orkas, Technical and environmental requirements for surplus foundry sand utilization, Helsinki University of Technology, Espoo, Finland, (2001).

[13] P.S. Zinchenko, M.P. Aksenenko, A.V. Yovbak, U.V. Orendarchuk, Use of liquid glass mixes with the under content of liquid glass as factor of upgrading of mold pieces of machine-building appointment, Science Rise. 2 (2016) 6-9.

[14] A.G. Grigoriev, I.I. Yurkov, System binding alpha set. Phenolic no-bake system with ether hardening, Casting of Ukraine. 12(100) (2008) 261-268.

[15] J. Bolden, T. Abu-Lebdeh, E. Fini, Utilization of recycled and waste materials in various construction applications, American Journal of Environmental Science. 9(1) (2013) 14-24.

DOI: 10.3844/ajessp.2013.14.24

[16] M. Holtzer, M. Gorny, R. Danko, Microstructure and properties of ductile iron and compacted graphite iron castings: the effects of mold sand/metal interface phenomena, Springer, New York, (2015).

DOI: 10.1007/978-3-319-14583-9_5

[17] S.S. Tkachenko, V.S. Krivitckii, U.N. Muravyev, G.A. Kolodii, Revival in machine-tool construction of technology of shaping on the basis of inorganic components, Foundry production. 5 (2017) 5-10.

[18] I. Gross, F. Voldert, The modern revitalization system of forming mix on the basis of furan resins, Founder of Russia. 3 (2013) 19-20.

[19] E.A. Chernyshev, А.А. Evlampiyev, A.V. Korolev, S.А. Kuznetcev, L.A. Ivanova, About modernization of steel departments with use of the modern technologies of shaping, Foundry production. 3 (2015) 36-38.

[20] V.A. Kukartsev, V.V. Kukartsev, V.S. Tynchenko. An experience of a liquid glass mixture using for AlpHaset process in Russia, Materials Science Forum. 946 (2019) 690-695.

DOI: 10.4028/www.scientific.net/msf.946.690

[21] M.A. Druzhevsky, V.N. Sharov, V.N. Volkov, O.N. Bogatyryova, The use of Sibelko Russia" company's molding sands produced by ZAO "Nabolchinskoye Karyeroupravleniye,, Foundry. 9 (2010) 21-24.

[22] S.S. Zhukovskyi, Technological parameters of synthetic binders produced by Uralchimplast-Kavenagi, Russian Caster. 4,5 (2007) 89-94.
