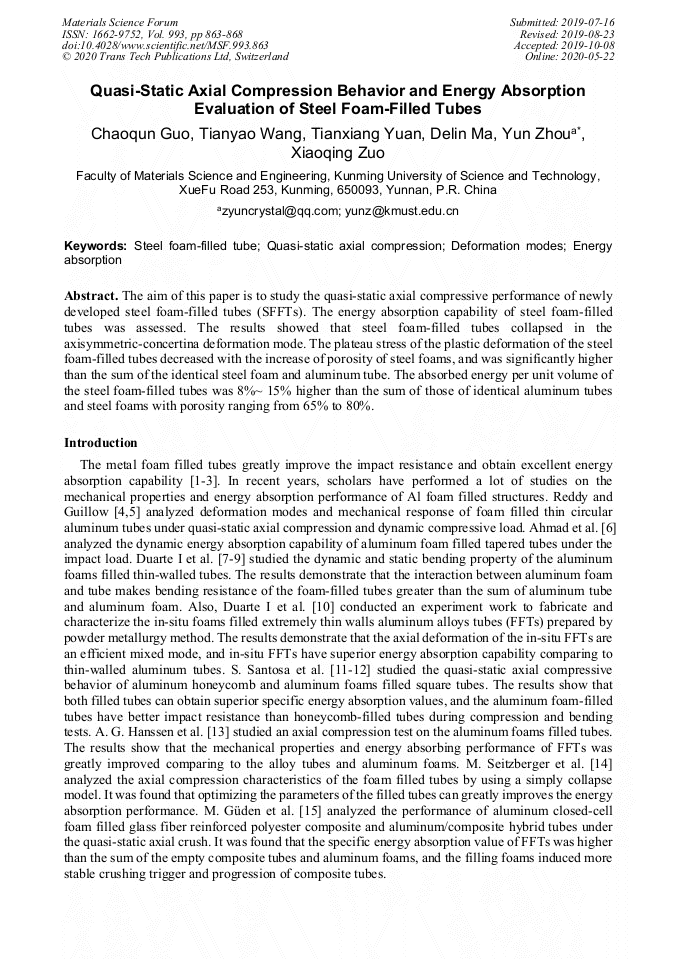

Quasi-Static Axial Compression Behavior and Energy Absorption Evaluation of Steel Foam-Filled Tubes

Abstract:

The aim of this paper is to study the quasi-static axial compressive performance of newly developed steel foam-filled tubes (SFFTs). The energy absorption capability of steel foam-filled tubes was assessed. The results show that steel foam-filled tubes collapse in the axisymmetric-concertina deformation mode. The plateau stress of the plastic deformation of the steel foam-filled tubes decreases with the increase of porosity of steel foams, and is significantly higher than the sum of the identical steel foam and aluminum tube. The absorbed energy per unit volume of the steel foam-filled tubes is 8%~ 15% higher than the sum of those of identical aluminum tubes and steel foams with porosity ranging from 65% to 80%.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 863-868
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.863
• Online since: May 2020
• Authors: Chao Qun Guo*, Tian Yao Wang, Tian Xiang Yuan, De Lin Ma, Yun Zhou, Xiao Qing Zuo
• Keywords: Deformation Modes, Energy Absorption, Quasi-Static Axial Compression, Steel Foam-Filled Tube

References

[1] A. Baroutaji, M. Sajjia, A.G. Olabi, On the crashworthiness performance of thin-walled energy absorbers: Recent advances and future developments, Thin. Wall. Struct. 118 (2017) 137-163.

DOI: 10.1016/j.tws.2017.05.018

[2] K. Vinayagar, A. Senthil Kumar, Crashworthiness analysis of double section bi-tubular thin-walled structures,Thin. Wall. Struct. 112 (2017) 184-193.

DOI: 10.1016/j.tws.2016.12.008

[3] N. Movahedi, E. Linul, Quasi-static compressive behavior of the ex-situ aluminum-alloy foam-filled tubes under elevated temperature conditions, Mater. Lett. 206 (2017) 182-184.

DOI: 10.1016/j.matlet.2017.07.018

[4] T. Y. Reddy, R. J.Wall, Axial compression of foam-filled thin-walled circular tubes, Int. J. Impact. Eng. 7 (1988) 151-166.

DOI: 10.1016/0734-743x(88)90023-1

[5] S. R. Guillow, G. Lu, R. H. Grzebieta, Quasi-static Axial Compression of Thin-Walled Circular Aluminium Tubes, Int. J. Mech. Sci. 43 (2001) 2103-2123.

DOI: 10.1016/s0020-7403(01)00031-5

[6] Z. Ahmad, D. Thambiratnam, A. Tan, Dynamic energy absorption characteristics of foam-filled conical tubes under oblique impact loading, Int. J. Impact. Eng. 37 (2010) 475-88.

DOI: 10.1016/j.ijimpeng.2009.11.010

[7] I. Duarte, M. Vesenjak, L. Krstulović-Opara.Dynamic and quasi-static bending behaviour of thin-walled aluminium tubes filled with aluminium foam, Compos. Struct. 109 (2014) 48-56.

DOI: 10.1016/j.compstruct.2013.10.040

[8] I. Duarte, M. Vesenjak, L. Krstulović-Opara,Compressive behaviour of unconstrained and constrained integral-skin closed-cell aluminium foam,Compos. Struct. 154 (2016) 231-238.

DOI: 10.1016/j.compstruct.2016.07.038

[9] I. Duarte, M. Vesenjak, L. Krstulović-Opara, Z. Ren, Static and dynamic axial crush performance of in-situ foam-filled tubes,Compos. Struct. 124 (2015) 128-139.

DOI: 10.1016/j.compstruct.2015.01.014

[10] I. Duarte, M. Vesenjak, L. Krstulović-Opara, Axial crush behaviour of the aluminium alloy, in-situ, foam filled tubes with very low wall thickness, Compos. Struct. 192 (2018) 184-192.

DOI: 10.1016/j.compstruct.2018.02.094

[11] S. P. Santosa, Crash behavior of box columns filled with aluminum honeycomb or foam,Comput. Struct. 68 (1998) 343-367.

DOI: 10.1016/s0045-7949(98)00067-4

[12] S. P. Santosa, T. Wierzbicki, A. G. Hanssen, M. Langseth, Experimental and Numerical Studies Of Foam-Filled Sections, Int. J. Impact. Eng. 24 (2000) 509-534.

DOI: 10.1016/s0734-743x(99)00036-6

[13] A. G. Hanssen, M. Langseth, O. S. Hopperstad, Static and dynamic crushing of circular aluminium extrusions with aluminium foam filler,Int. J. Impact. Eng. 24 (2000)475-507.

DOI: 10.1016/s0734-743x(99)00170-0

[14] M. Seitzberger, S. Willminger, Application of plastic collapse mechanisms for the axial crushing analysis of tubular steel structures filled with aluminium foam, Int. J. Crashworthines. 6 (2001) 165-176.

DOI: 10.1533/cras.2001.0170

[15] M. Güden, S. Yüksel, A. Taşdemirci, M. Tanoğlu, Effect of aluminum closed-cell foam filling on the quasi-static axial crush performance of glass fiber reinforced polyester composite and aluminum/composite hybrid tubes,Compos. Struct. 81 (2007) 480-490.

DOI: 10.1016/j.compstruct.2006.09.005

[16] J. M. Alexander, Q. J. Mech. An approximate analysis of the collapse of thin cylindrical shells under axial loading, Appl. Math. 13 (1960) 10-15.

DOI: 10.1093/qjmam/13.1.10

[17] A. G. Mamalis, D.E. Manolakos, A.K. Baldoukas, G.L. Viegelahn,Energy dissipation and associated failure modes when axially loading polygonal thin-walled cylinders, Thin. Wall. Struct. 12 (1991) 17-34.

DOI: 10.1016/0263-8231(91)90024-d

[18] W. Abramowicz, N. Jones, Dynamic progressive buckling of circular and square tubes, Int. J. Impact. Eng. 4 (1986) 243-270.

DOI: 10.1016/0734-743x(86)90017-5
