Preparation and Characterization of High Mobility Nb-Doped SnO₂ Transparent Conducting Films

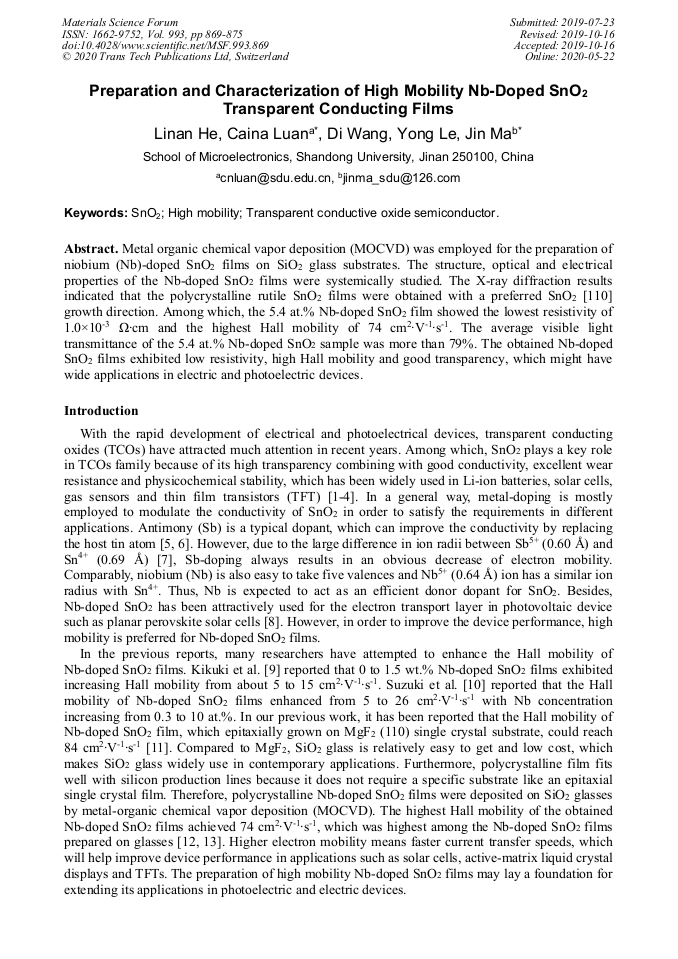

Abstract:

Metal organic chemical vapor deposition (MOCVD) was employed for the preparation of niobium (Nb)-doped SnO₂ films on SiO₂ glass substrates. The structure, optical and electrical properties of the Nb-doped SnO₂ films were systemically studied. The X-ray diffraction results indicated that the polycrystalline rutile SnO₂ films were obtained with a preferred SnO₂ [110] growth direction. Among which, the 5.4 at.% Nb-doped SnO₂ film showed the lowest resistivity of 1.0×10^-3 Ω∙cm and the highest Hall mobility of 74 cm²∙V^-1∙s^-1. The average visible light transmittance of the 5.4 at.% Nb-doped SnO₂ sample was more than 79%. The obtained Nb-doped SnO₂ films exhibited low resistivity, high Hall mobility and good transparency, which might have wide applications in electric and photoelectric devices.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 869-875
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.869
• Online since: May 2020
• Authors: Lin An He, Cai Na Luan*, Di Wang, Yong Le, Jin Ma
• Keywords: High Mobility, SnO₂, Transparent Conductive Oxide Semiconductor

References

[1] Kim, J.Y., Kim, E.R., Han, Y.K., Nam, K.H., Ihm, D.W. Highly transparent tin oxide films prepared by DC magnetron sputtering and its liquid crystal display application. Jpn. J. Appl. Phys. 2002, 41, 237-40.

DOI: 10.1143/jjap.41.237

[2] Dattoli, E.N., Wan, Q., Guo, W., Chen, Y., Pan, X., Lu, W. Fully transparent thin-film transistor devices based on SnO2 nanowires. Nano Lett. 2007, 7, 2463-9.

DOI: 10.1021/nl0712217

[3] Kim, D.H., Kim, W.-S., Lee, S.B., Hong, S.-H. Gas sensing properties in epitaxial SnO2 films grown on TiO2 single crystals with various orientations. Sensors and Actuators B: Chemical. 2010, 147, 653-9.

DOI: 10.1016/j.snb.2010.03.065

[4] Xu, P., Wang, G., Yan, J., Zhang, Z., Xu, M., Cai, S., et al. Reversible and high-capacity SnO2/carbon cloth composite electrode materials prepared by magnetron sputtering for Li-ion batteries. Mater. Lett. 2017, 190, 56-9.

DOI: 10.1016/j.matlet.2016.12.071

[5] Bissig, B., Jäger, T., Ding, L., Tiwari, A.N., Romanyuk, Y.E. Limits of carrier mobility in Sb-doped SnO2 conducting films deposited by reactive sputtering. Apl Materials. 2015, 3, 062802.

DOI: 10.1063/1.4916586

[6] Zheng, M., Ni, J., Liang, F., Wang, M.C., Zhao, X. Effect of annealing temperature on the crystalline structure, growth behaviour and properties of SnO2: Sb thin films prepared by radio frequency (RF)-magnetron sputtering. Journal of Alloys & Compounds. 2016, 663, 371-8.

DOI: 10.1016/j.jallcom.2015.12.037

[7] Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. Sect. A. 1976, 32, 751-67.

DOI: 10.1107/s0567739476001551

[8] Ren, X.D., Yang, D., Yang, Z., Feng, J.S., Zhu, X.J., Niu, J.Z., et al. Solution-processed Nb: SnO2 electron transport layer for efficient planar perovskite solar cells. ACS Appl. Mater. Interfaces. 2017, 9, 2421-9.

DOI: 10.1021/acsami.6b13362

[9] Kikuchi, N., Kusano, E., Kishio, E., Kinbara, A. Electrical and mechanical properties of SnO2: Nb films for touch screens. Vacuum. 2002, 66, 365-71.

DOI: 10.1016/s0042-207x(02)00156-2

[10] Ai, Y.S., Nose, K., Ai, U., Kamiko, M., Mitsuda, Y. High transparency and electrical conductivity of SnO2: Nb thin films formed through (001)-oriented SnO: Nb on glass substrate. Applied Physics Express. 2012, 5, 1103.

DOI: 10.1143/apex.5.011103

[11] He, L., Luan, C., Feng, X., Xiao, H., Ma, J. Effect of niobium doping on the structural, electrical and optical properties of epitaxial SnO2 films on MgF2 (110) substrates by MOCVD. Journal of Alloys and Compounds. 2018, 741, 677-81.

DOI: 10.1016/j.jallcom.2018.01.219

[12] Gokulakrishnan, V., Parthiban, S., Jeganathan, K., Ramamurthi, K. Investigations on the structural, optical and electrical properties of Nb-doped SnO2 thin films. J. Mater. Sci. 2011, 46, 5553-8.

DOI: 10.1007/s10853-011-5504-x

[13] Seo, Y.J., Kim, G.W., Sung, C.H., Anwar, M.S., Lee, C.G., Koo, B.H. Characterization of transparent and conductive electrodes of Nb-doped SnO2 thin film by pulsed laser deposition. Current Applied Physics. 2011, 11, S310-S3.

DOI: 10.1016/j.cap.2010.11.070

[14] Patra, S.N., Bhattacharya, D.P. Effect of screening on the carrier transport in semiconductors at low lattice temperatures. Journal of Physics & Chemistry of Solids. 1997, 58, 829-33.

DOI: 10.1016/s0022-3697(96)00186-2

[15] He, L.A., Luan, C.N., Feng, X.J., Xiao, H.D., Ma, J. Effect of niobium doping on the structural, electrical and optical properties of epitaxial SnO2 films on MgF2 (110) substrates by MOCVD. Journal of Alloys and Compounds. 2018, 741, 677-81.

DOI: 10.1016/j.jallcom.2018.01.219

[16] Zhitomirsky, V.N., Çetinörgü, E., Boxman, R.L., Goldsmith, S. Properties of SnO2 films fabricated using a rectangular filtered vacuum arc plasma source. Thin Solid Films. 2008, 516, 5079-86.

DOI: 10.1016/j.tsf.2008.02.020

[17] Fauzia, V., Yusnidar, M.N., Lalasari, L.H., Subhan, A., Umar, A.A. High figure of merit transparent conducting Sb-doped SnO2 thin films prepared via ultrasonic spray pyrolysis. Journal of Alloys & Compounds. 2017, 720, 79-85.

DOI: 10.1016/j.jallcom.2017.05.243
