Silicon and Oxygen in High-Al-Content AlGaN: Incorporation Kinetics and Electron Paramagnetic Resonance Study

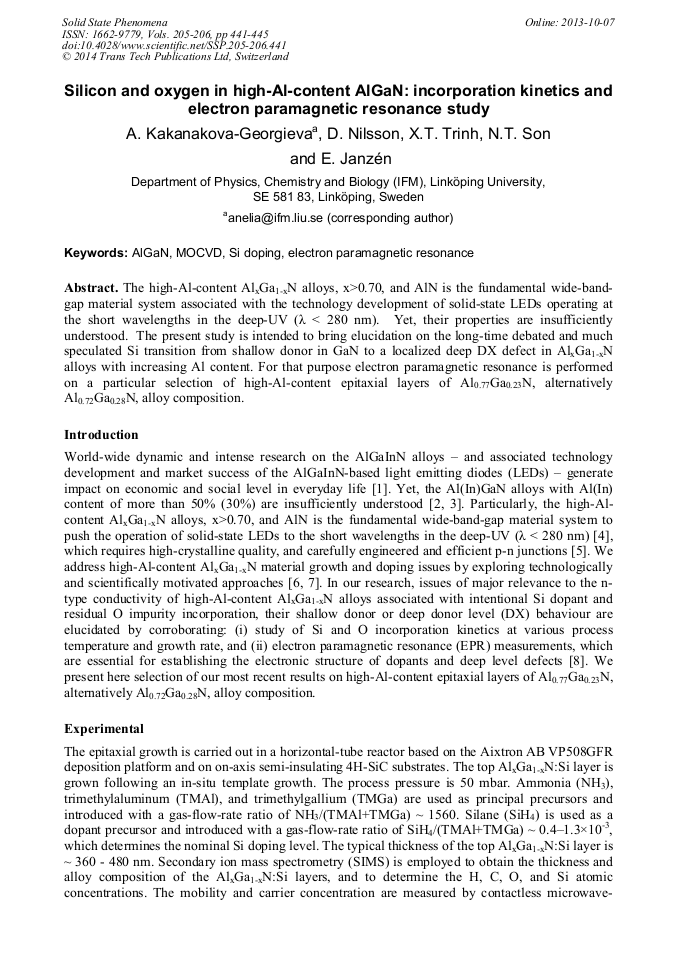

Article Preview

Abstract:

The high-Al-content Al_xGa_1-xN alloys, x>0.70, and AlN is the fundamental wide-band-gap material system associated with the technology development of solid-state LEDs operating at the short wavelengths in the deep-UV (λ < 280 nm). Yet, their properties are insufficiently understood. The present study is intended to bring elucidation on the long-time debated and much speculated Si transition from shallow donor in GaN to a localized deep DX defect in Al_xGa_1-xN alloys with increasing Al content. For that purpose electron paramagnetic resonance is performed on a particular selection of high-Al-content epitaxial layers of Al_0.77Ga_0.23N, alternatively Al_0.72Ga_0.28N, alloy composition.
