Investigations of Critical Structural Defects in Active Layers of GaN-on-Si for Power Electronic Devices

Abstract:

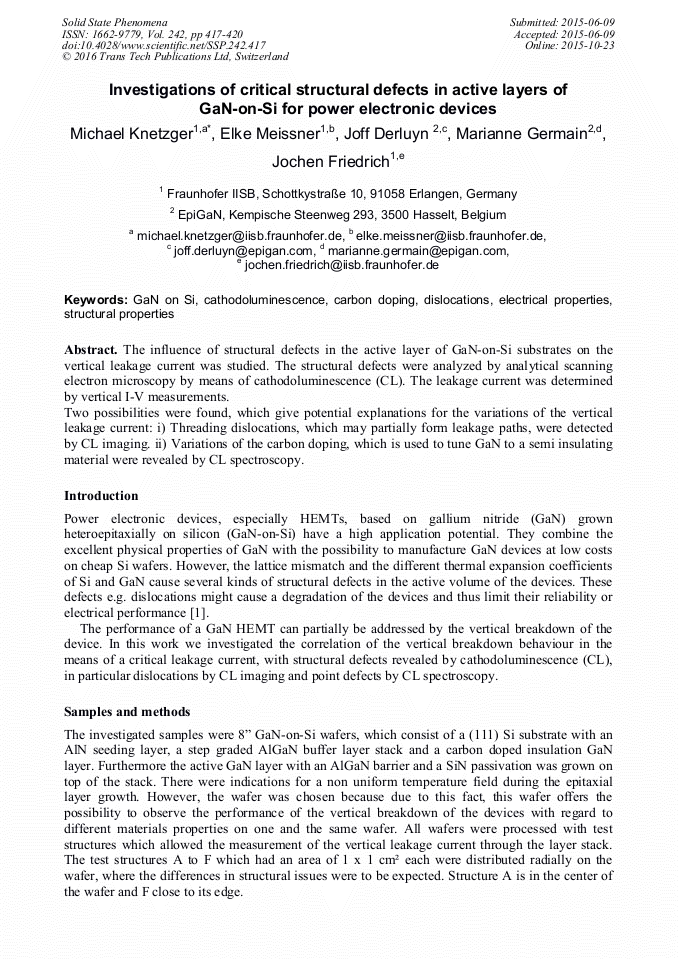

The influence of structural defects in the active layer of GaN-on-Si substrates on the vertical leakage current was studied. The structural defects were analyzed by analytical scanning electron microscopy by means of cathodoluminescence (CL). The leakage current was determined by vertical I-V measurements.Two possibilities were found, which give potential explanations for the variations of the vertical leakage current: i) Threading dislocations, which may partially form leakage paths, were detected by CL imaging. ii) Variations of the carbon doping, which is used to tune GaN to a semi insulating material were revealed by CL spectroscopy.
