ZnO Nanoparticle Formation in ⁶⁴Zn⁺ Ion Implanted Al₂O₃

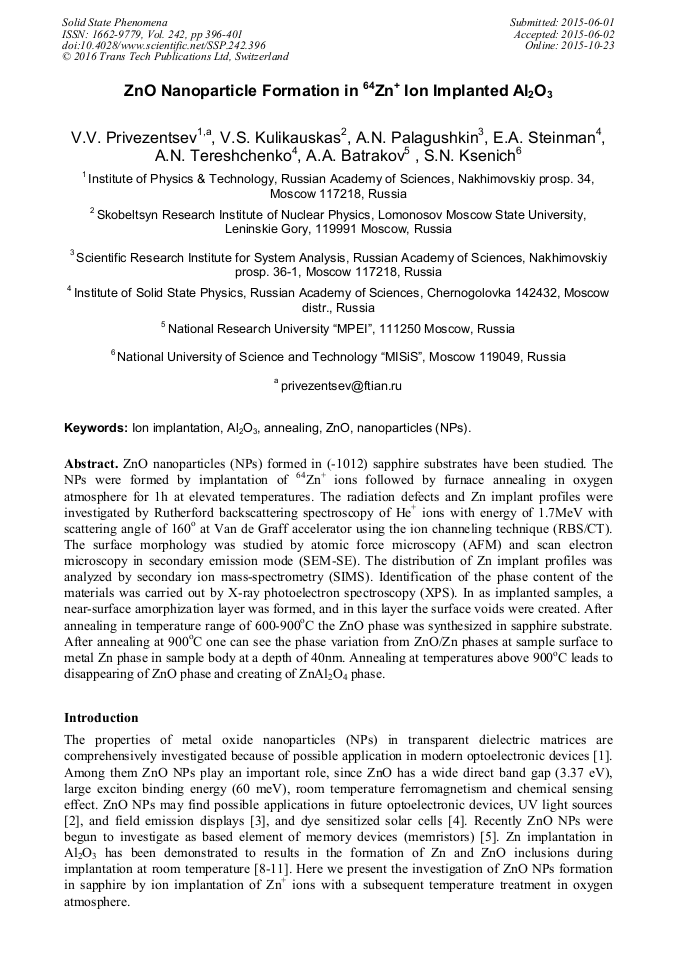

Abstract:

ZnO nanoparticles (NPs) formed in (-1012) sapphire substrates have been studied. The NPs were formed by implantation of ⁶⁴Zn⁺ ions followed by furnace annealing in oxygen atmosphere for 1h at elevated temperatures. The radiation defects and Zn implant profiles were investigated by Rutherford backscattering spectroscopy of He⁺ ions with energy of 1.7MeV with scattering angle of 160^o at Van de Graff accelerator using the ion channeling technique (RBS/CT). The surface morphology was studied by atomic force microscopy (AFM) and scan electron microscopy in secondary emission mode (SEM-SE). The distribution of Zn implant profiles was analyzed by secondary ion mass-spectrometry (SIMS). Identification of the phase content of the materials was carried out by X-ray photoelectron spectroscopy (XPS). In as implanted samples, a near-surface amorphization layer was formed, and in this layer the surface voids were created. After annealing in temperature range of 600-900°C the ZnO phase was synthesized in sapphire substrate. After annealing at 900°C one can see the phase variation from ZnO/Zn phases at sample surface to metal Zn phase in sample body at a depth of 40nm. Annealing at temperatures above 900°C leads to disappearing of ZnO phase and creating of ZnAl₂O₄ phase.

• Periodical: Solid State Phenomena (Volume 242)
• Pages: 396-401
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.242.396
• Online since: October 2015
• Authors: Vladimir V. Privezentsev*, V.S. Kulikauskas, A.N. Palagushkin, Edward A. Steinman, A.N. Tereshchenko, A.A. Batrakov, S.N. Ksenich
• Keywords: Al₂O₃, Annealing, Ion Implantation, Nanoparticles, ZNO

References

[1] Metal Oxide Nanostructures and Their Applications. Ed. by Ahmad Umar and Yoon-Bong Hahn. Chonbuk National University, S. Korea, (2010).

[2] S. Chu, M. Olmedo, Zh. Yang, J. Kong, J. Liu. et al. Appl. Phys. Lett., 93, 181106 (2008).

[3] C.Y. Jiang, X.W. Sun, G.Q. Lo, D.L. Kwong, J.X. Wang. Appl. Phys. Lett.; 90, 263501 (2007).

[4] C. Li, Y. Yang, X.W. Sun, W. Lei, X.B. Zhang, B.P. Wang, J.X. Wang, B.K. Tay, J.D. Ye, G.Q. Lo, D.L. Kwong. Nanotechnology, 18, 135604 (2007).

DOI: 10.1088/0957-4484/18/13/135604

[5] G.P. Smestad, M. Gratzel. J. Chem. Educ., 75, 752 (1998).

[6] X. Xiang, X.T. Zu, S. Zhu, C.F. Zhang, L.M. Wang. Nucl. Instrum. Meth. Phys. Res. B, 250 (2006) 192 (2006).

[7] C. Marques, N. Franco, L.C. Alves, R.C. da Silva, E. Alves, G. Safran, C.J. McHargue. Nucl. Instrum. Meth. Phys. Res. B, 257, 515 (2007).

[8] X. Xiang, X.T. Zu, S. Zhu, Q.M. Wei, C.F. Zhang, K. Sun, L.M. Wang. Nanotechnology, 17, 2636 (2006).

[9] X.H. Xiao, F. Ren, L.X. Fan, G.X. Cai, C.Z. Jiang. Nanotechnology, 19, 325604 (2008).

[10] J.X. Xu, X.H. Xiao, F. Ren, C.Z. Jiang. Nucl. Instrum. Meth. Phys. Res. B, 268, 2702 (2010).

[11] A.L. Stepanov, D.E. Hole. Surf. Coat. Technol., 158, 526 (2002).

[12] Y. Shen, W. He, D. Zhang, X. Zhang, Y. Xue, C.L. Liu. J. Luminesc., 131, 2725 (2011).

[13] V. Privezentsev, A. Goryachev, K. Shcherbachev. Proc. 6thICNFA, Barselona, Spane, 2015, in press.

[14] The NIST X-ray Photoelectron Spectroscopy Database. Version 4. 1. http: /srdata. nist. gov/xps.
