Radiation Damage in 4H-SiC and its Effect on Power Device Characteristics

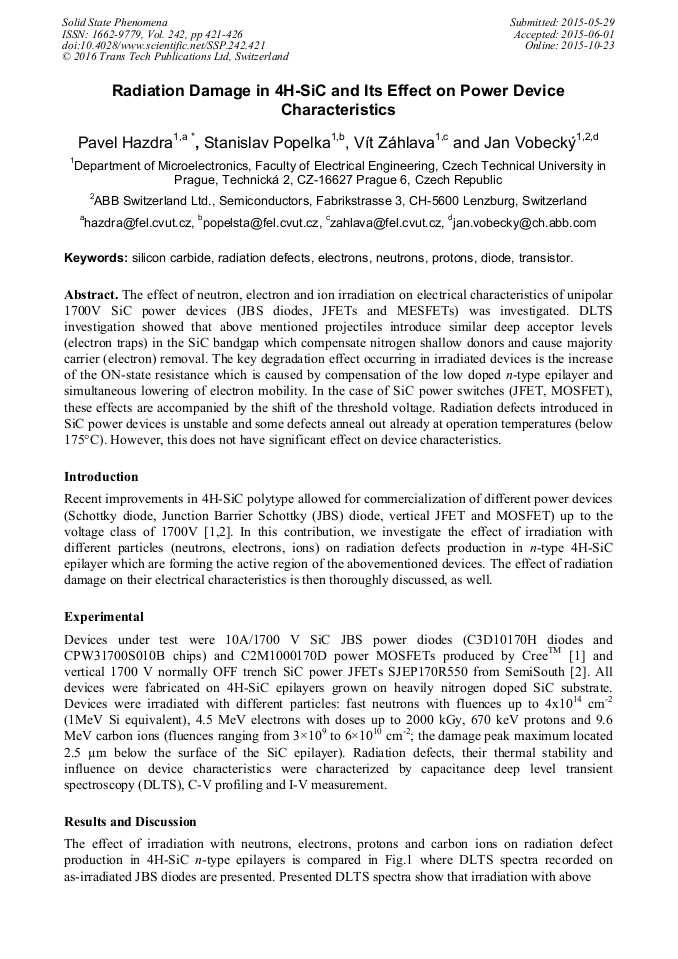

Article Preview

Abstract:

The effect of neutron, electron and ion irradiation on electrical characteristics of unipolar 1700V SiC power devices (JBS diodes, JFETs and MESFETs) was investigated. DLTS investigation showed that above mentioned projectiles introduce similar deep acceptor levels (electron traps) in the SiC bandgap which compensate nitrogen shallow donors and cause majority carrier (electron) removal. The key degradation effect occurring in irradiated devices is the increase of the ON-state resistance which is caused by compensation of the low doped n-type epilayer and simultaneous lowering of electron mobility. In the case of SiC power switches (JFET, MOSFET), these effects are accompanied by the shift of the threshold voltage. Radiation defects introduced in SiC power devices is unstable and some defects anneal out already at operation temperatures (below 175°C). However, this does not have significant effect on device characteristics.

You might also be interested in these eBooks

Info:

Periodical:

Solid State Phenomena (Volume 242)

Pages:

421-426

Citation:

Online since:

October 2015

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Information on http: /www. cree. com.

Google Scholar

[2] SJEP170R550 Datasheet, Rev. 1. 4, SemiSouth, Feb. (2011).

Google Scholar

[3] J.P. Doyle, M.K. Linnarsson, P. Pellegrino, N. Keskitalo, B.G. Svensson, A. Schöner, N. Nordell, and J.L. Lindström, Electrically active point defects in n-type 4H-SiC, J. Appl. Phys. 84 (1998) 1354-1357.

DOI: 10.1063/1.368247

Google Scholar

[4] C. Hemmingsson, N.T. Son, O. Kordina, J.P. Bergman, E. Janzén, J.L. Lindström, S. Savage, N. Nordell, Deep level defects in electron irradiated 4H SiC epitaxial layers, J. Appl. Phys. 81 (1997) 6155.

DOI: 10.1063/1.364397

Google Scholar

[5] A. Castaldini, A. Cavallini, L. Rigutti, F. Nava, Low temperature annealing of irradiation induced defects in 4H-SiC, Appl. Phys. Lett. 85 (2004) 3780-2982.

DOI: 10.1063/1.1810627

Google Scholar

[6] L. Storasta, J.P. Bergman, E. Janzén, A. Henry, J. Lu, Deep levels created by low energy electron irradiation in 4H-SiC, J. Appl. Phys. 96 (2004) 4909-4915.

DOI: 10.1063/1.1778819

Google Scholar

[7] G. Alfieri, E.V. Monakhov, B.G. Svensson, M. K. Linnarson, Annealing behavior between room temperature and 2000oC of deep level defects in electron–irradiated n-type 4H silicon carbide, J. Appl. Phys. 98 (2005) 043518.

DOI: 10.1063/1.2009816

Google Scholar

[8] T. Dalibor, G. Pensl, H. Matsunami, T. Kimoto, W.J. Choyke, A. Schöner, and N. Nordell, Deep Defect Centers in Silicon Carbide Monitored with Deep Level Transient Spectroscopy, phys. stat. sol. (a) 162 (1997) 199-225.

DOI: 10.1002/1521-396x(199707)162:1<199::aid-pssa199>3.0.co;2-0

Google Scholar

[9] G. Izzo, G. Litrico, L. Calcagno, G. Foti and F. La Via, Electrical properties of high energy ion irradiated 4H-SiC Schottky diodes, J. Appl. Phys. 104 (2008) 093711.

DOI: 10.1063/1.3018456

Google Scholar

[10] P. Hazdra, V. Záhlava, J. Vobecký, Point defects in 4H-SiC epilayers introduced by 4. 5 MeV electron irradiation and their effect on power JBS SiC diode characteristics, Solid State Phenomena Vols. 205-206 (2014) 451 - 456.

DOI: 10.4028/www.scientific.net/ssp.205-206.451

Google Scholar

[11] J. Vobecký, P. Hazdra, S. Popelka, R.K. Sharma, Impact of Electron Irradiation on the ON-State Characteristics of a 4H–SiC JBS Diode, IEEE Trans. on Electron Devices 62 (2015) 1964 - (1969).

DOI: 10.1109/ted.2015.2421503

Google Scholar

[12] P. Hazdra, V. Záhlava, J. Vobecký, M. Berthou, A. Mihaila, Radiation defects produced in 4H-SiC epilayers by proton and alpha-particle irradiation, Mat. Sci. Forum, 740-742 (2013) 661-664.

DOI: 10.4028/www.scientific.net/msf.740-742.661

Google Scholar

[13] R.K. Sharma, P. Hazdra, S. Popelka, The Effect of Light Ion Irradiation on 4H-SiC MPS Power Diode Characteristics: Experiment and Simulation, IEEE Trans. on Nuclear Science 62 (2014) 534 - 541.

DOI: 10.1109/tns.2015.2395712

Google Scholar

[14] S. Popelka, P. Hazdra, R.K. Sharma, V. Záhlava, J. Vobecký, Effect of Neutron Irradiation on High Voltage 4H-SiC Vertical JFET Characteristics: Characterization and Modeling, IEEE Trans. on Nuclear Science 61 (2014) 3030 - 3036.

DOI: 10.1109/tns.2014.2358957

Google Scholar

[15] A. Akturk, J.M. McGarrity, S. Potbhare and N. Goldsman, Radiation Effects in Commercial 1200 V 24 A Silicon Carbide Power MOSFETs, IEEE Trans. on Nuclear Science 59 (2012) 3258 - 3264.

DOI: 10.1109/tns.2012.2223763

Google Scholar
