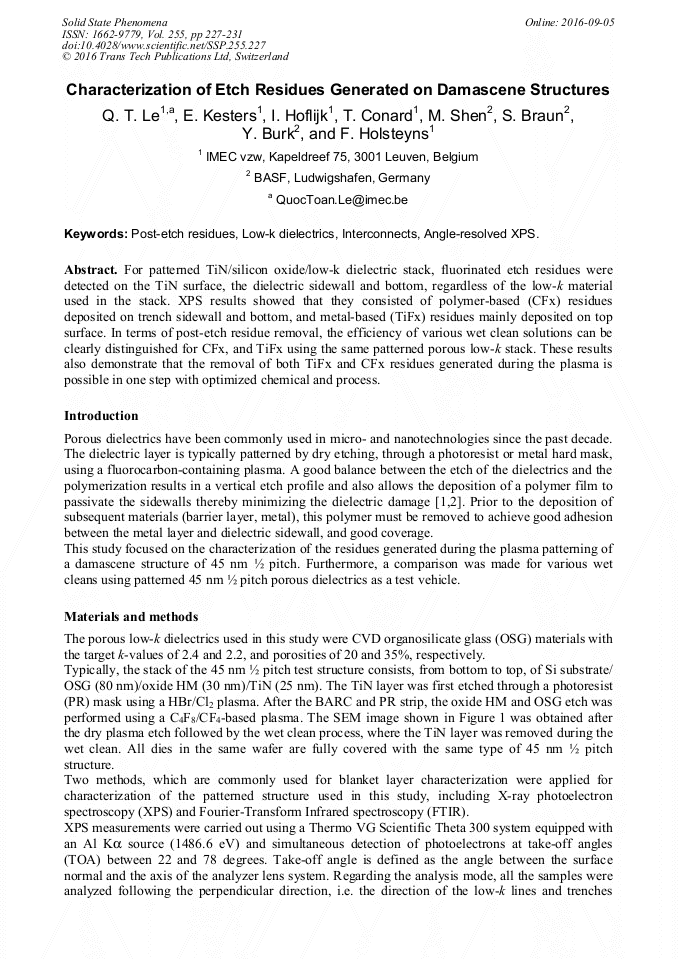

Characterization of Etch Residues Generated on Damascene Structures

Abstract:

For patterned TiN/silicon oxide/low-k dielectric stack, fluorinated etch residues were detected on the TiN surface, the dielectric sidewall and bottom, regardless of the low-k material used in the stack. XPS results showed that they consisted of polymer-based (CFx) residues deposited on trench sidewall and bottom, and metal-based (TiFx) residues mainly deposited on top surface. In terms of post-etch residue removal, the efficiency of various wet clean solutions can be clearly distinguished for CFx, and TiFx using the same patterned porous low-k stack. These results also demonstrate that the removal of both TiFx and CFx residues generated during the plasma is possible in one step with optimized chemical and process.

You might also be interested in these eBooks

Ultra Clean Processing of Semiconductor Surfaces XIII

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 255)

Pages:

227-231

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.255.227

Citation:

Cite this paper

Online since:

September 2016

Authors:

Quoc Toan Le*, Els Kesters, I. Hoflijk, T. Conard, M. Shen, S. Braun, Y. Burk, Frank Holsteyns

Keywords:

Angle-Resolved XPS, Interconnects, Low-k Dielectrics, Post-Etch Residue

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H. Shi et al., Plasma Processing of Low-k Dielectrics, in Advanced Interconnects for ULSI Technology, Ed. M. R. Baklanov, P. S. Ho, and E. Zschech, John Wiley & Sons Ltd. (2012) Doi: 10. 1002/9781119963677.

DOI: 10.1002/9781119963677

Google Scholar

[2] M. R. Baklanov, J. -F. de Marneffe, D. Shamiryan, A. M. Urbanowicz, H. Shi, T. V. Rakhimova, H. Huang, and P. S. Ho, J. Appl. Phys., 113, 041101 (2013).

DOI: 10.1063/1.4765297

Google Scholar

[3] P. J. Matsuo, T. E. F. M. Standaert, S. D. Allen, G. S. Oehrlein, and T. J. Dalton, J. Vac. Sci. Technol. B 17, 1435 (1999).

Google Scholar

[4] Q. T. Le et al., ECS J. Solid-State Sci. Technol. 5, N5 (2016).

Google Scholar
