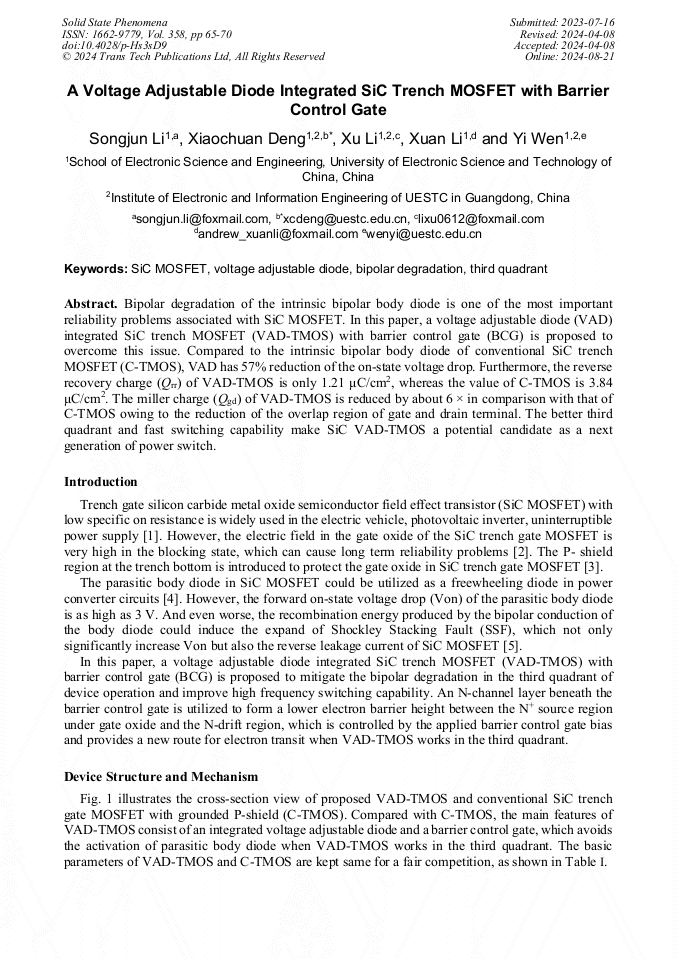

A Voltage Adjustable Diode Integrated SiC Trench MOSFET with Barrier Control Gate

Abstract:

Bipolar degradation of the intrinsic bipolar body diode is one of the most important reliability problems associated with SiC MOSFET. In this paper, a voltage adjustable diode (VAD) integrated SiC trench MOSFET (VAD-TMOS) with barrier control gate (BCG) is proposed to overcome this issue. Compared to the intrinsic bipolar body diode of conventional SiC trench MOSFET (C-TMOS), VAD has 57% reduction of the on-state voltage drop. Furthermore, the reverse recovery charge (Q_rr) of VAD-TMOS is only 1.21 μC/cm², whereas the value of C-TMOS is 3.84 μC/cm². The miller charge (Q_gd) of VAD-TMOS is reduced by about 6 × in comparison with that of C-TMOS owing to the reduction of the overlap region of gate and drain terminal. The better third quadrant and fast switching capability make SiC VAD-TMOS a potential candidate as a next generation of power switch.
