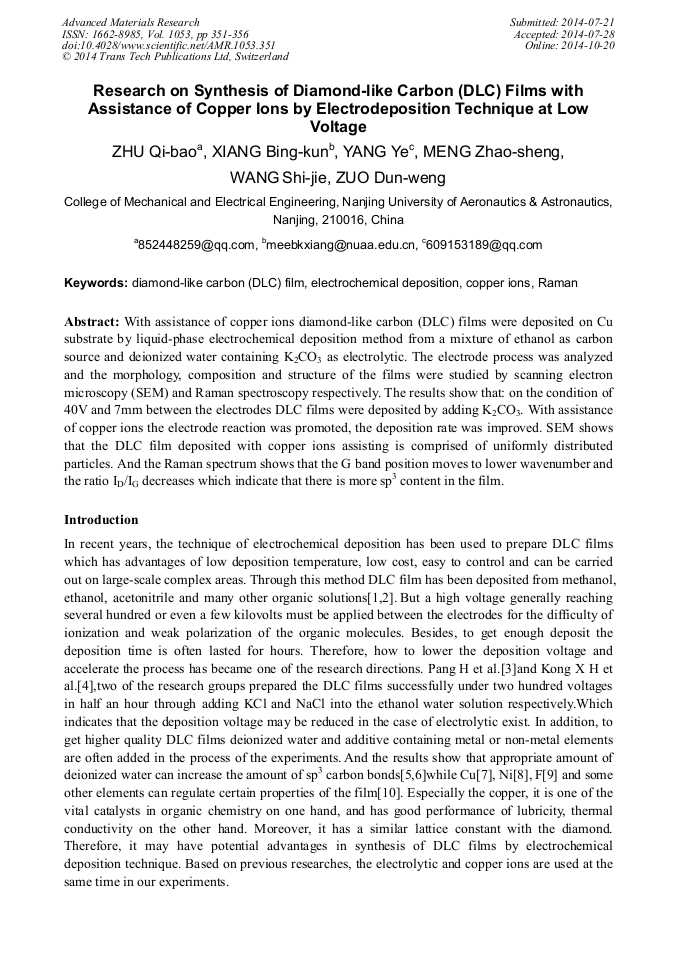

Research on Synthesis of Diamond-Like Carbon (DLC) Films with Assistance of Copper Ions by Electrodeposition Technique at Low Voltage

Abstract:

With assistance of copper ions diamond-like carbon (DLC) films were deposited on Cu substrate by liquid-phase electrochemical deposition method from a mixture of ethanol as carbon source and deionized water containing K₂CO₃ as electrolytic. The electrode process was analyzed and the morphology, composition and structure of the films were studied by scanning electron microscopy (SEM) and Raman spectroscopy respectively. The results show that: on the condition of 40V and 7mm between the electrodes DLC films were deposited by adding K₂CO₃. With assistance of copper ions the electrode reaction was promoted, the deposition rate was improved. SEM shows that the DLC film deposited with copper ions assisting is comprised of uniformly distributed particles. And the Raman spectrum shows that the G band position moves to lower wavenumber and the ratio I_D/I_G decreases which indicate that there is more sp³ content in the film.

• Periodical: Advanced Materials Research (Volume 1053)
• Pages: 351-356
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1053.351
• Online since: October 2014
• Authors: Qi Bao Zhu, Bing Kun Xiang, Ye Yang, Zhao Sheng Meng, Shi Jie Wang, Dun Weng Zuo
• Keywords: Copper Ions, Diamond-Like Carbon (DLC) Film, Electrochemical Deposition, RAMAN

References

[1] Y. Namba, Attempt to grow diamond phase film an organic solution[J]. Journal of Vacuum Science & Technology A: Vacuum, Surface, and Films. 10 (1992) 3368-3370.

DOI: 10.1116/1.577829

[2] T. Suzuki, Y. Manita, S. Yamazaki, et al. Deposition of Carbon-Films by Electrolysis of a Water-Ethylene Glycol Solution[J]. Journal of Materials Science, 30 (1995) 2067-(2069).

DOI: 10.1007/bf00353035

[3] H. Pang, X.Q. Wang, G.L. Zhang, et al. Characterization of diamond-like carbon films by SEM, XRD and Raman spectroscopy[J]. Applied Surface Science, 256 (2010) 6403-6407.

DOI: 10.1016/j.apsusc.2010.04.025

[4] X.H. Kong, S. Wang, H.P. Zhao, et al. Preparation of diamond-like carbon films by cathodic micro-arc discharge in aqueous solutions[J]. Thin Solid Films, 518 (2010) 4211-4214.

DOI: 10.1016/j.tsf.2009.12.078

[5] J.S. Zhang, L.N. Huang, L.G. Yu, et al. Synthesis and tribological behaviors of diamond-like carbon films by electrodeposition from solution of acetonitrile and water[J]. Applied Surface Science, 254 (2008) 3896 – 3901.

DOI: 10.1016/j.apsusc.2007.12.029

[6] S. Kulesza, J. Szatkowski, E. Lulinska, et al. Diamond-like carbon layers grown by electrochemical method-structural study [J]. Energy Conversion and Management, 49 (2008) 1074-1076.

DOI: 10.1016/j.enconman.2008.02.028

[7] L.N. Huang, H.Q. Jiang, J.S. Zhang, et al. Synthesis of copper nanoparticles containing diamond-like carbon films by electrochemical method[J]. Electrochemistry Communications, 8(2006) 262-266.

DOI: 10.1016/j.elecom.2005.11.011

[8] K.D. Ma, G.B. Yang, L.G. Yu, et al. Synthesis and characterization of nickel-doped diamond-like carbon film electrodeposited at a low voltage[J]. Surface and Coatings Technology, 204(2010) 2546-2550.

DOI: 10.1016/j.surfcoat.2010.01.039

[9] G. Chen, J.Y. Zhang, S.R. Yang. Fabrication of hydrophobic fluorinated amorphous carbon thin films by an electrochemical route[J]. Electrochemistry Communications, 10(2008) 7-11.

DOI: 10.1016/j.elecom.2007.10.006

[10] S.H. Wan, L.P. Wang, J.Y. Zhang, et al. Field emission properties of DLC and phosphorus-doped DLC films prepared by electrochemical deposition process [J]. Applied Surface Science, 255 (2009) 3817-3821.

DOI: 10.1016/j.apsusc.2008.10.061

[11] Y.H. Zhang. Further study the reaction of freshly copper hydroxide and acetaldehyde [J]. Chemical Education, 2007(8): 51-52.

[12] M. Vedawas, G. Sivananthan, A Kumar. Textured polycrystal-line diamond films on Cu metal substrates by hot filament chemical vapor deposition[J]. Materials Science and Engineering, 78(2000) 16-21.

DOI: 10.1016/s0921-5107(00)00506-7

[13] A.C. Ferrari, J. Robertson. Interpretation of Raman spectra of disordered and amorphous carbon[J]. Physical Review B, 61(2000) 14095-14107.

DOI: 10.1103/physrevb.61.14095

[14] A.C. Ferrari, J. Robertson. Raman spectroscopy of amorphous nanostructured diamond-like carbon and nanodiamond[J]. Physical transactions of the royal society, 1824 (2004) 2477-2152.

DOI: 10.1098/rsta.2004.1452
