Effect of CW-CO₂ Laser Evaporation Parameters on Structural and Physical Properties of ZnSe Film

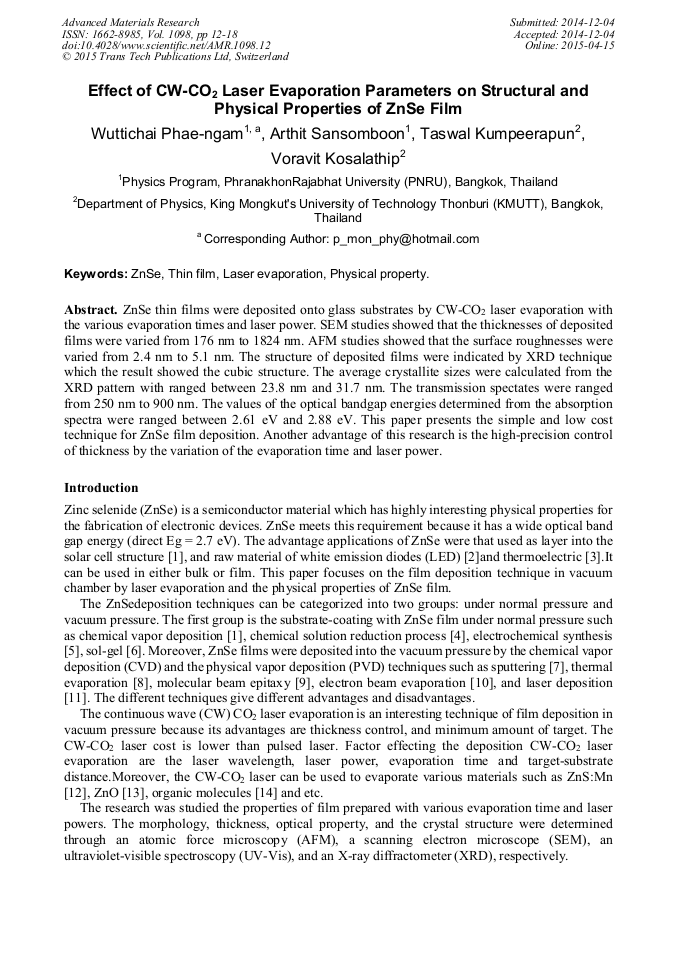

Article Preview

Abstract:

ZnSe thin films were deposited onto glass substrates by CW-CO₂ laser evaporation with the various evaporation times and laser power. SEM studies showed that the thicknesses of deposited films were varied from 176 nm to 1824 nm. AFM studies showed that the surface roughnesses were varied from 2.4 nm to 5.1 nm. The structure of deposited films were indicated by XRD technique which the result showed the cubic structure. The average crystallite sizes were calculated from the XRD pattern with ranged between 23.8 nm and 31.7 nm. The transmission spectates were ranged from 250 nm to 900 nm. The values of the optical bandgap energies determined from the absorption spectra were ranged between 2.61 eV and 2.88 eV. This paper presents the simple and low cost technique for ZnSe film deposition. Another advantage of this research is the high-precision control of thickness by the variation of the evaporation time and laser power.

You might also be interested in these eBooks

Engineering Researches and Decisions in Materials Science

Info:

Periodical:

Advanced Materials Research (Volume 1098)

Pages:

12-18

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1098.12

Citation:

Cite this paper

Online since:

April 2015

Authors:

Wuttichai Phae-Ngam*, Arthit Sansomboon, Taswal Kumpeerapun, Voravit Kosalathip

Keywords:

Laser Evaporation, Physical Property, Thin Film, ZnSe

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] A. Rumberg, Ch. Sommerhalter, M. Toplak, A. Jäger-Waldau, and M. Ch. Lux-Steiner: Thin Solid Films, Vol. 361-362 (2000), p.172.

DOI: 10.1016/s0040-6090(99)00790-7

[2] K. Katayama, H. Matsubara, F. Nakanishi, T. Nakamura, H. Doi, A. Saegusa, T. Mitsui, T. Matsuoka, M. Irikura, T. Takebe, S. Nishine, and T. Shirakawa: Materials Science in Semiconductor Processing, Vol. 10 (2007), p.128.

DOI: 10.1016/s0022-0248(00)00275-x

[3] L. Pan, X.Y. Qin, and M. Liu: Solid State Sciences, Vol. 12 (2010), p.257.

[4] G.L. Agawane, S.W. Shin, M.P. Suryawanshi, K.V. Gurav, A.V. Moholkar, J.Y. Lee, P.S. Patil, J.H. Yun, and J. H. Kim: Ceramics International, Vol. 40 (2014), p.367.

DOI: 10.1016/j.ceramint.2013.06.011

[5] V. Dhanasekaran, T. Mahalingam, Jin-Koo Rhee, and J.P. Chu: Optik, Vol. 124 (2013), p.255.

[6] H. Jiang, X. Yao, J. Che, and M. Wang: Materials Research Bulletin, Vol. 41 (2004), p.2349.

[7] N. Vivet, J.L. Doualan, M. Morales, and M. Levalois: Journal of Luminescence, Vol. 130 (2010), p.1449.

[8] S. Venkatachalam, S. Agilan, D. Mangalaraj, and Sa.K. Narayandass: Materials Science in Semiconductor Processing, Vol. 10 (2007), p.128.

DOI: 10.1016/j.mssp.2007.06.001

[9] J.S. Kim, J.H. Song, and S.H. Suh: Materials Science in Semiconductor Processing, Vol. 3 (2000), p.201.

[10] W.W. Jiang, S.L. Zhao, F.J. Zhang, and Z. Xu: Materials Science in Semiconductor Processing, Vol. 13 (2010), p.360.

[11] T.M. Khan, M. Zakria, M. Ahmad, and R.I. Shakoor: Journal of Luminescence, Vol. 147 (2014), p.97.

[12] H. Eilers: Materials Letters, Vol. 62 (2008), p.967.

[13] X.J. Yin, G.R. Lai, J.S. Chen, and J.S. Kao: Surface and Coatings Technology, Vol. 90 (1997), p.239.

[14] K. Grytsenko, O. Lytvyn, L.F. Ivanov, P.N. Grakovich, M. Sonntag, and S. Schrader: Applied Surface Science, Vol. 253 (2007), p.8028.

DOI: 10.1016/j.apsusc.2007.02.080

[15] M. Ashraf, S.M.J. Akhtar, A.F. Khan, Z. Ali, and A. Qayyum: Journal of Alloys and Compounds, Vol. 509 (2011), p.2414.

[16] G.I. Rusu, V. Ciupina, M.E. Popa, G. Prodan, G.G. Rusu, and C. Baban: Journal of Non-Crystalline Solids, Vol. 352 (2006), p.1525.

DOI: 10.1016/j.jnoncrysol.2006.01.029
