Design and Modeling of Platinum Thin Film Microheater for High Temperature Microtensile Test Application

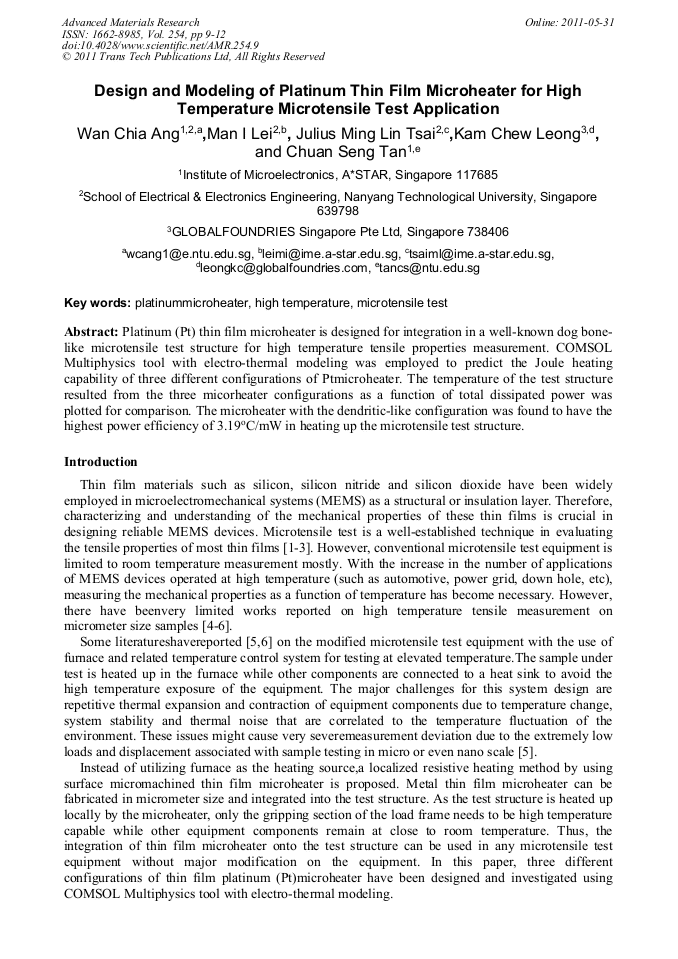

Article Preview

Abstract:

Platinum (Pt) thin film microheater is designed for integration in a well-known dog bone-like microtensile test structure for high temperature tensile properties measurement. COMSOL Multiphysics tool with electro-thermal modeling was employed to predict the Joule heating capability of three different configurations of Ptmicroheater. The temperature of the test structure resulted from the three micorheater configurations as a function of total dissipated power was plotted for comparison. The microheater with the dendritic-like configuration was found to have the highest power efficiency of 3.19°C/mW in heating up the microtensile test structure.
