Preparation and Corrosion Resistance of Electroless Plating of Ni-Cr-P/Ni-P Composite Coating on Sintered Nd-Fe-B Permanent Magnet

Ming Ming Wu; Bai Yang Lou

doi:10.4028/www.scientific.net/AMR.284-286.2187

Paper Titles

Analyses of Transmission Characteristics of a Magneto-Optic Material Used for Faraday Optical Filters at 532nm
p.2166

Analysis of Recovery Current Related to Core Material and Structure of DC Power Supply in High Voltage Active Electronic Current Transformer
p.2170

Preparation of Ta-Ti Co-Doped VO₂ Polycrystal Thin Film with High Resistance Temperature Coefficient and without Hysteresis
p.2177

Comparative Study of the Properties between Transparent Conducting ZnO:Zr and ZnO:Al Films Deposited by DC Magnetron Sputtering
p.2182

Preparation and Corrosion Resistance of Electroless Plating of Ni-Cr-P/Ni-P Composite Coating on Sintered Nd-Fe-B Permanent Magnet
p.2187

X-Ray Photoelectron Spectroscopy of (La_0.7Sr_0.3)MnO₃Thin Films Prepared by Pulsed Laser Deposition
p.2191

Novel Terbium-Cerium Coordination Polymer: Synthesis, Characterization and Fluorescence Properties
p.2198

Electrical Behaviors of LEDs Prepared by Wide-Band GaN Material
p.2202

Microstructure, Magnetic and Optical Properties of Metal/ Semiconductor Magnetic Granular Film
p.2207

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 284-286Preparation and Corrosion Resistance of...

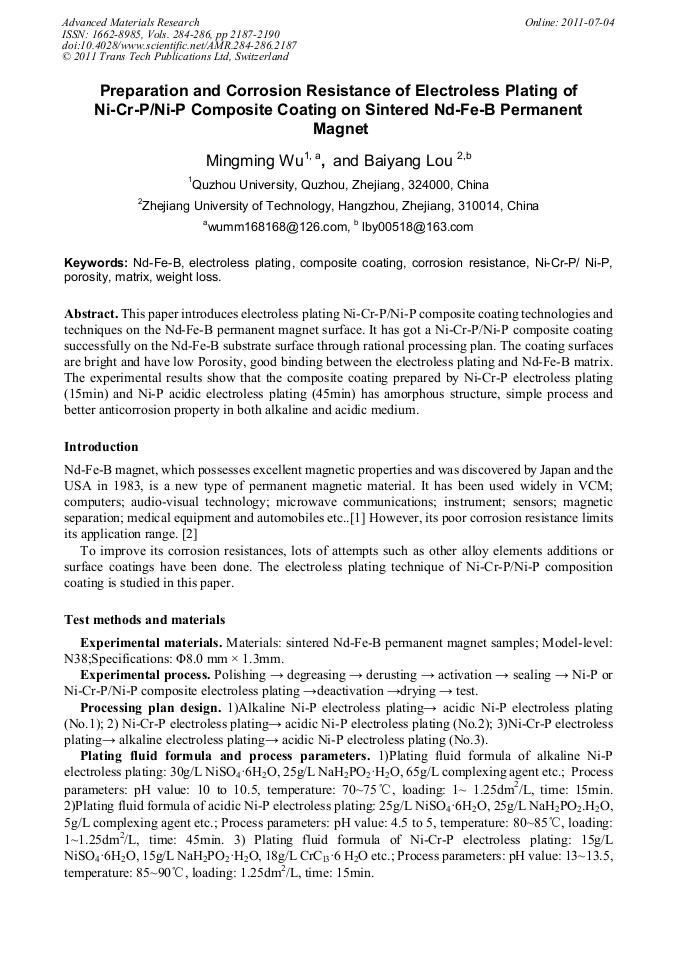

Preparation and Corrosion Resistance of Electroless Plating of Ni-Cr-P/Ni-P Composite Coating on Sintered Nd-Fe-B Permanent Magnet

Abstract:

This paper introduces electroless plating Ni-Cr-P/Ni-P composite coating technologies and techniques on the Nd-Fe-B permanent magnet surface. It has got a Ni-Cr-P/Ni-P composite coating successfully on the Nd-Fe-B substrate surface through rational processing plan. The coating surfaces are bright and have low Porosity, good binding between the electroless plating and Nd-Fe-B matrix. The experimental results show that the composite coating prepared by Ni-Cr-P electroless plating (15min) and Ni-P acidic electroless plating (45min) has amorphous structure, simple process and better anticorrosion property in both alkaline and acidic medium.
