Optical and Surface Morphological Study of GaN Nanocolumn Grown on Gallium Coated Si by Molecular Beam Epitaxy

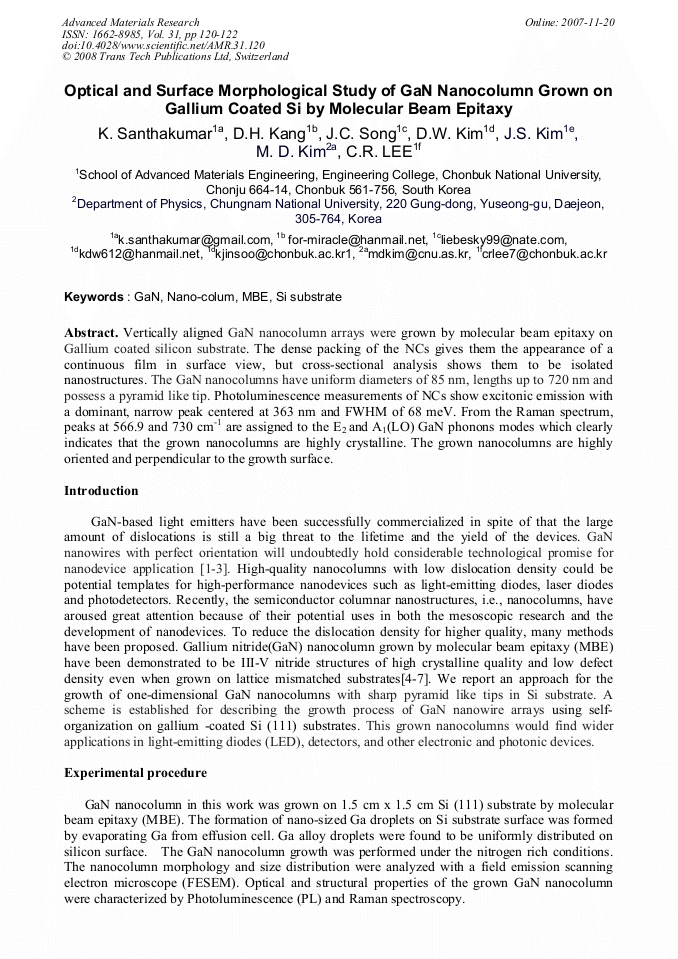

Abstract:

Vertically aligned GaN nanocolumn arrays were grown by molecular beam epitaxy on Gallium coated silicon substrate. The dense packing of the NCs gives them the appearance of a continuous film in surface view, but cross-sectional analysis shows them to be isolated nanostructures. The GaN nanocolumns have uniform diameters of 85 nm, lengths up to 720 nm and possess a pyramid like tip. Photoluminescence measurements of NCs show excitonic emission with a dominant, narrow peak centered at 363 nm and FWHM of 68 meV. From the Raman spectrum, peaks at 566.9 and 730 cm-1 are assigned to the E2 and A1(LO) GaN phonons modes which clearly indicates that the grown nanocolumns are highly crystalline. The grown nanocolumns are highly oriented and perpendicular to the growth surface.

You might also be interested in these eBooks

Semiconductor Photonics: Nano-Structured Materials and Devices

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 31)

Pages:

120-122

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.31.120

Citation:

Cite this paper

Online since:

November 2007

Authors:

Kannappan Santhakumar, D.H. Kang, Jae Chul Song, Dong Wook Kim, J.S. Kim, M.D. Kim, Cheul Ro Lee

Keywords:

Gallium Nitride (GaN), MBE, Nanocolumn, Si Substrate

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W. Han, S. Fan, Q. Li and Y. Hu: Science Vol. 277 (1997), p.1287.

Google Scholar

[2] X. F. Duan and C. M. Lieber: J. Am. Chem. Soc. Vol. 122 (2000), p.188.

Google Scholar

[3] Y. Huang, X. Duan, Y. Cui, and C. M. Lieber: Nano Lett. Vol. 2 (2002), p.101.

Google Scholar

[4] E. Calleja, M. A. Sánchez-García, F. J. Sánchez, F. Calle, F. B. Naranjo, E. Muñoz, U. Jahn, and K. Ploog: Phys. Rev. B Vol. 62 (2000), p.16826.

DOI: 10.1103/physrevb.62.16826

Google Scholar

[5] J. Ristíc, E. Calleja, M. A. Sánchez-García, J. M. Ulloa, E. Calleja, J. Sánchez-Páramo, J. M. Calleja, U. Jahn, A. Trampert, and K. H. Ploog: Phys. Status Solidi B Vol. 234 (2002), p.717.

DOI: 10.1002/1521-3951(200212)234:3<717::aid-pssb717>3.0.co;2-8

Google Scholar

[6] J. Ristíc, E. Calleja, M. A. Sánchez-García, J. M. Ulloa, J. Sánchez-Páramo, J. M. Calleja, U. Jahn, A. Trampert, and K. H. Ploog: Phys. Rev. B Vol. 68 (2003), p.125305.

Google Scholar

[7] K. A. Bertness, A. Roshko, N. A. Sanford, J. M. Barker, and A. V. Davydov: J. Cryst. Growth Vol. 287 (2006), p.522.

Google Scholar

[8] W. Hayes and R. Laudon, Scattering of Light by Crystals (Wiley, New York, 1978).

Google Scholar

[9] M. Kuball: Surf. Interface Anal. Vol. 31 (2001), p.987. 575 600 625 650 675 700 725 750 775 800 A1(LO) E2 Intensity (a. u) Raman shift (cm -1).
