Improvement of Crystallization Rate in Post-Annealed Ge₂Sb₂Te₅ Films

Abstract:

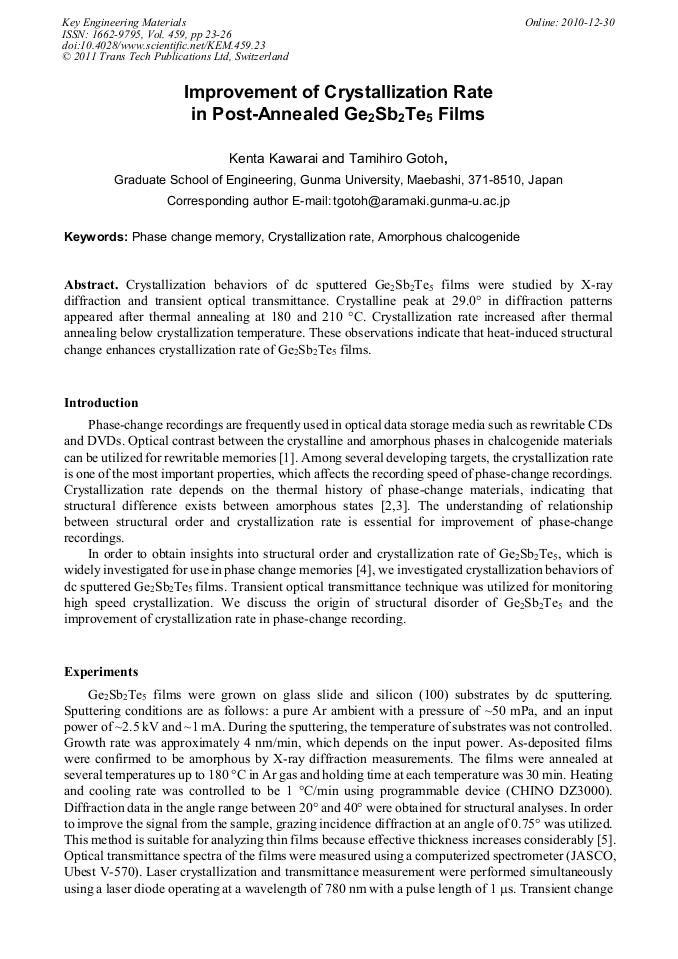

Crystallization behaviors of dc sputtered Ge2Sb2Te5 films were studied by X-ray diffraction and transient optical transmittance. Crystalline peak at 29.0° in diffraction patterns appeared after thermal annealing at 180 and 210 °C. Crystallization rate increased after thermal annealing below crystallization temperature. These observations indicate that heat-induced structural change enhances crystallization rate of Ge₂Sb₂Te₅ films.
