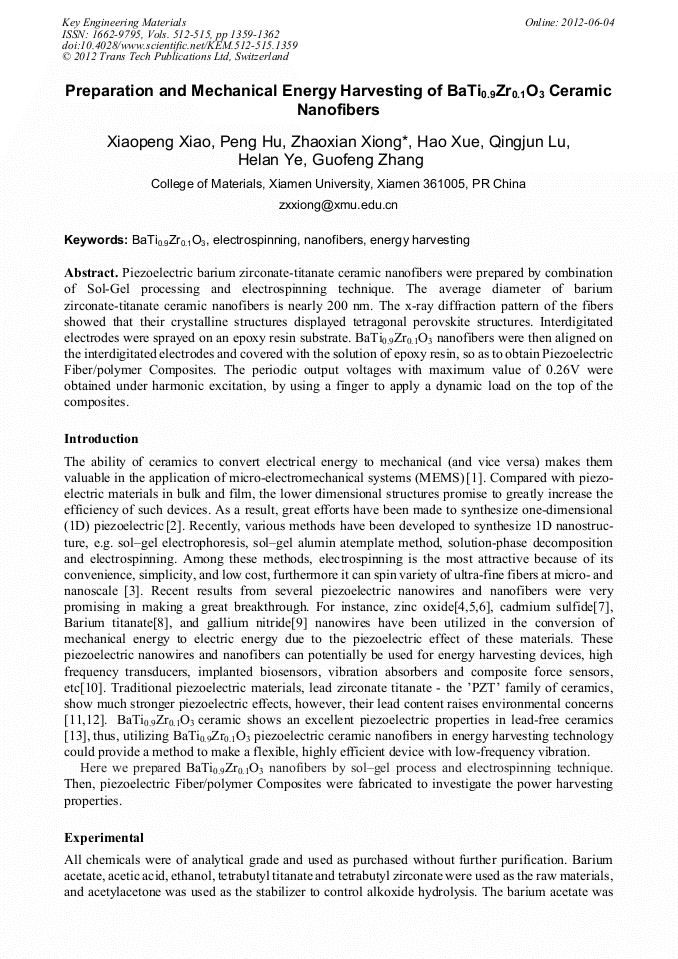

Preparation and Mechanical Energy Harvesting of BaTi_0.9Zr_0.1O₃ Ceramic Nanofibers

Abstract:

Piezoelectric barium zirconate-titanate ceramic nanofibers were prepared by combination of Sol-Gel processing and electrospinning technique. The average diameter of barium zirconate-titanate ceramic nanofibers is nearly 200 nm. The x-ray diffraction pattern of the fibers showed that their crystalline structures displayed tetragonal perovskite structures. Interdigitated electrodes were sprayed on an epoxy resin substrate. BaTi_0.9Zr_0.1O₃ nanofibers were then aligned on the interdigitated electrodes and covered with the solution of epoxy resin, so as to obtain Piezoelectric Fiber/polymer Composites. The periodic output voltages with maximum value of 0.26V were obtained under harmonic excitation, by using a finger to apply a dynamic load on the top of the composites.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 512-515)

Pages:

1359-1362

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.512-515.1359

Citation:

Cite this paper

Online since:

June 2012

Authors:

Xiao Peng Xiao, Peng Hu, Zhao Xian Xiong, Hao Xue, Qing Jun Lu, He Lan Ye, Guo Feng Zhang

Keywords:

BaTi_0.9Zr_0.1O₃, Electro-Spinning, Energy Harvesting, Nanofiber

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Hossain, A. Kim, et al, The Effect of Acetic Acid on Morphology of PZT Nanofibers Fabricated by Electrospinning, Mater. Lett. 63(2009) 789–792.

DOI: 10.1016/j.matlet.2009.01.005

Google Scholar

[2] M. Liao, X. L. Zhong, Structure and Electrical Properties of Bi0.15Nd0.85Ti3O12 Nanofibers Synthesized by Electrospinning and Sol-gel Method, Appl. Phys. Lett. 96(2010) 012904.

Google Scholar

[3] Y. Q. Chen, X. J. Zheng, Lead-free Piezoelectric (Na0.5Bi0.5)0.94TiO3–Ba0.06TiO3 Nanofiber by Electrospinning,Phys. Stat. Sol. 9(2009) 290–292.

Google Scholar

[4] Z. Li, G. Zhu, R. Yang, A.C. Wang, Z.L. Wang, Muscle-Driven In Vivo Nanogenerator, Adv. Mater. 22(2010) 2534-2537.

DOI: 10.1002/adma.200904355

Google Scholar

[5] Z. L. Wang, Nanopiezotronics, Adv. Mater. 19(2007) 889-892.

Google Scholar

[6] Z. L. Wang, R. Yang, J. Zhou, Y. Qin, C. Xu, Y. Hu, S. Xu, Lateral Nanowire/nanobelt Based Nanogenerators, Piezotronics and Piezo-phototronics, Mater. Sci. Eng. R.70(2010) 320-329.

DOI: 10.1016/j.mser.2010.06.015

Google Scholar

[7] X. Chen, S. Xu, N. Yao, Y. Shi, 1.6V Nanogenerator for Mechanical Energy Harvesting Using PZT nanofibers, Nano Lett. 10(2010) 2133-2137.

DOI: 10.1021/nl100812k

Google Scholar

[8] K. Park, S. Xu, Y. Liu, G. Hwang, S. L. Kang, Z. L. Wang, K. J. Lee, Piezoelectric BaTiO3 Thin Film Nanogenerator on Plastic Substrates, Nano Lett. 10(2010) 4939–4943.

DOI: 10.1021/nl102959k

Google Scholar

[9] W. S. Su, Y. F. Chen, C. L. Hsiao, L. W. Tu, Generation of Electricity in GaN Nanorods Induced by Piezoelectric Effect, Appl. Phys. Lett. 90(2007) 063110.

DOI: 10.1063/1.2731432

Google Scholar

[10] X. Chen, S. Y. Xu, et al, Potential Measurement From a Single Lead Zirconate Titanate Nanofiber Using a Nanomanipulator, Appl. Phys. Lett. 94(2009) 253113.

DOI: 10.1063/1.3211093

Google Scholar

[11] Y. Li, K. Moon, C. P. Wong, Electronics Without Lead, Science.308(2005) 1419-1420.

Google Scholar

[12] T. Takenaka, H. Nagata, Present Status of Non-lead Based Piezoelectric Ceramics, Key. Eng. Mater. 157(1999) 57-63.

DOI: 10.4028/www.scientific.net/kem.157-158.57

Google Scholar

[13] V.S. Puli, A.Kumar, D.B. Chrisey, et al, Barium zirconate-titanate/barium calcium-titanate ceramics via sol-gel process: novel high energy density capacitors, J. Phys. D: Appl. Phys. 44 (2011) 395403.

DOI: 10.1088/0022-3727/44/39/395403

Google Scholar
